Rear Manual Window Regulator Removal/Installation

  1. Remove the following parts:
    1. Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
    2. Sail garnish (5 door) (See SAIL GARNISH REMOVAL/INSTALLATION .)
    3. Rear door garnish (5 door) (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
    4. Regulator handle (See REGULATOR HANDLE REMOVAL  )
    5. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    6. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION  )
  2. Remove the nuts and the bolts.

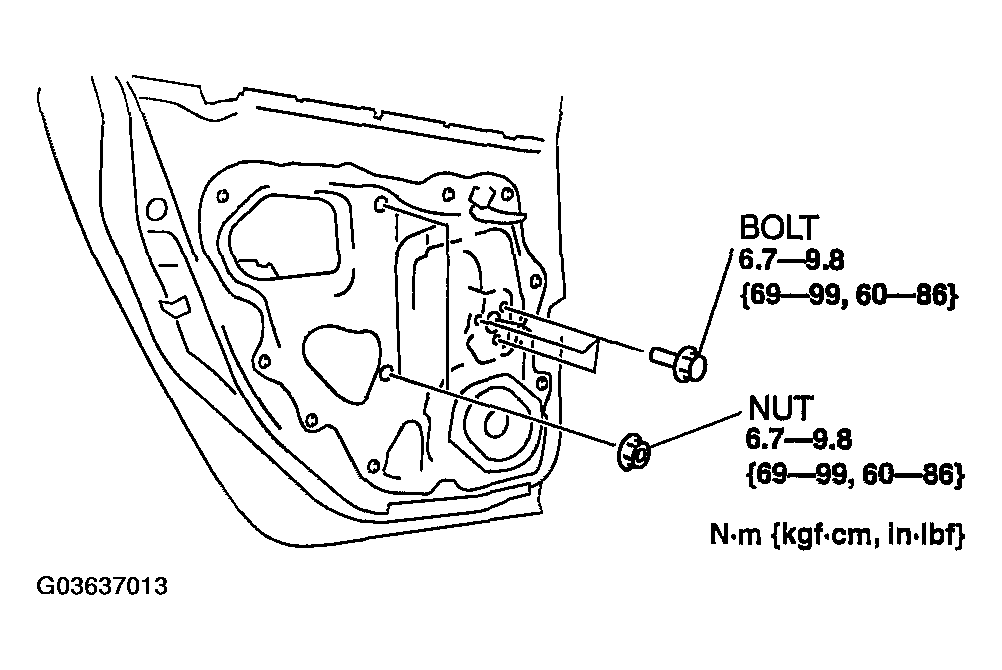

    Fig 1: Removing Nuts And Bolts
    G03637013Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear manual window regulator through the rear door unit hole.
  4. Install in the reverse order of removal.

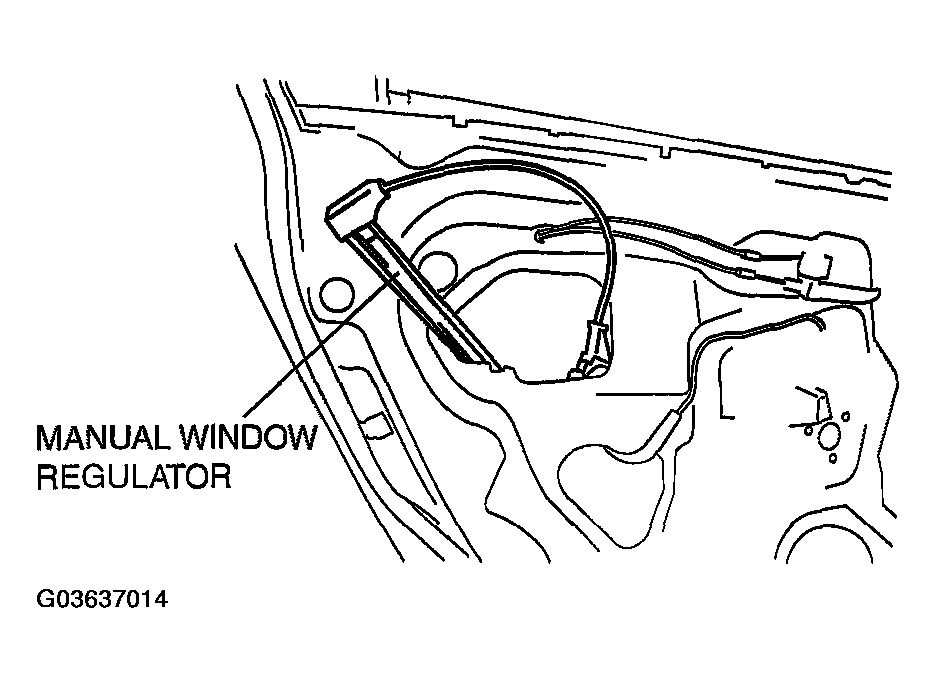

    Fig 2: Rear Manual Window Regulator Removal/Installation
    G03637014Courtesy of MAZDA MOTORS CORP.
