Power Outer Mirror Switch Inspection

  1. Inspect for continuity between the power outer mirror switch terminals.
    • If not as specified, replace the power outer mirror switch.

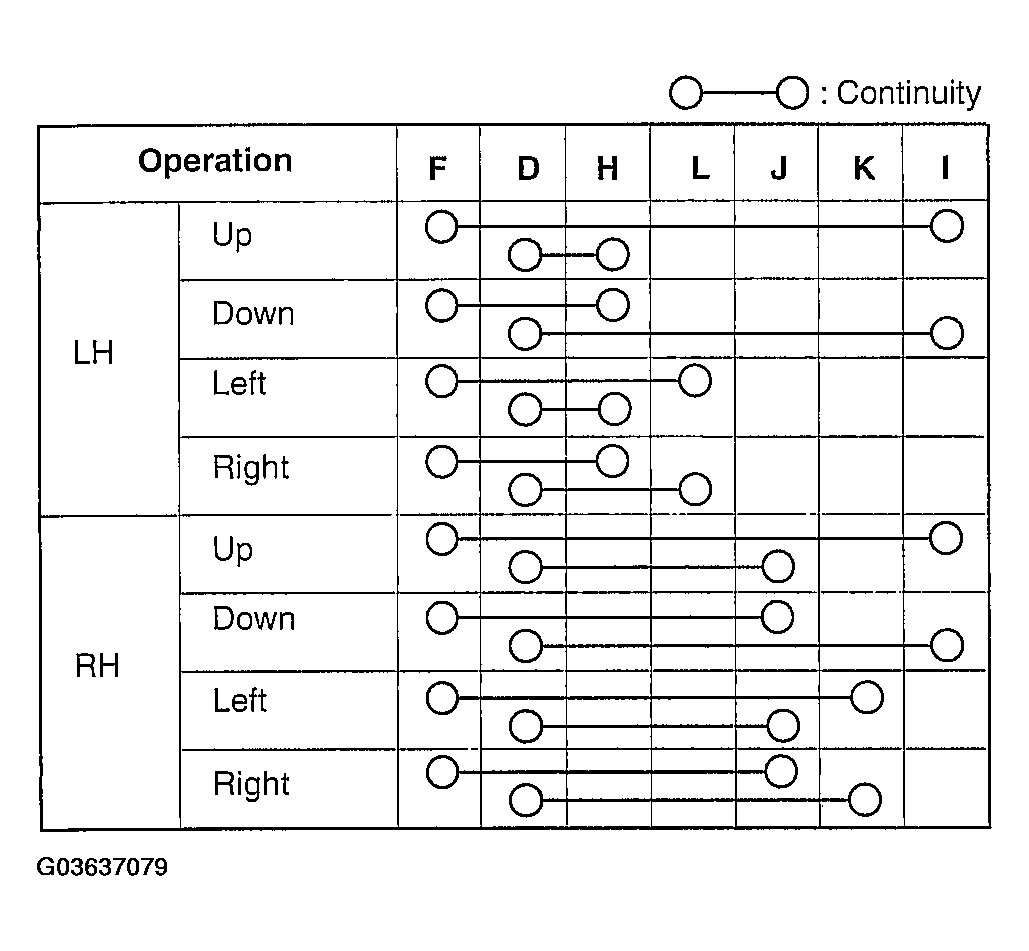

    Fig 1: Power Outer Mirror Switch Continuity Specifications
    G03637079Courtesy of MAZDA MOTORS CORP.

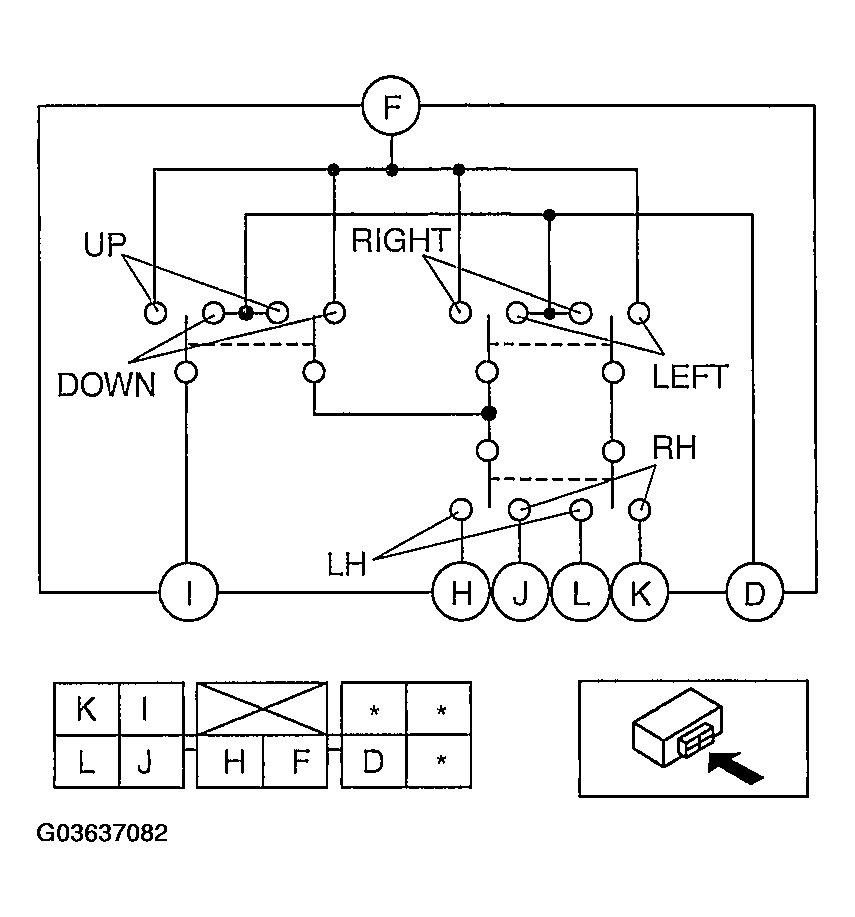

    Fig 2: Identifying Power Outer Mirror Switch Connector Terminals
    G03637082Courtesy of MAZDA MOTORS CORP.
