Power Outer Mirror Inspection

Apply battery positive voltage to the power outer mirror terminals and inspect the operation of the power outer mirror.

If not as specified, replace the power outer mirror.

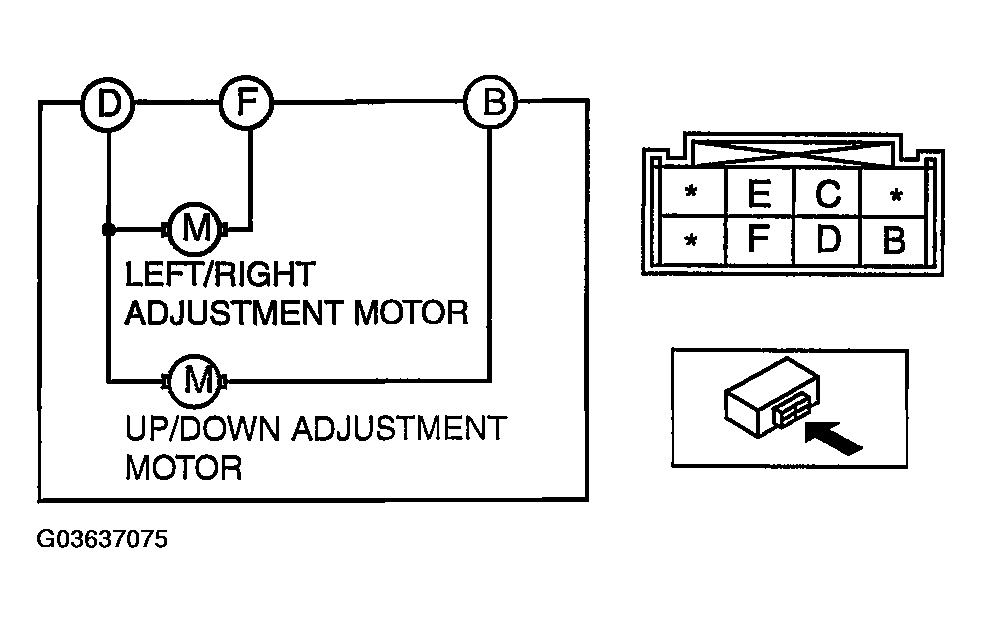

Fig 1: Identifying Power Outer Mirror Connector Terminals

Courtesy of MAZDA MOTORS CORP.

POWER OUTER MIRROR OPERATION/TERMINAL IDENTIFICATION

Mirror operation	Terminal
Mirror operation	B+	GND
Up	B	D
Down	D	B
Left	F	D
Right	D	F

Inspect for continuity between the power outer mirror heater terminals.
- If not as specified, replace the power outer mirror.
Fig 2: Power Outer Mirror Heater Continuity Specifications
Courtesy of MAZDA MOTORS CORP.

Fig 3: Inspecting For Continuity Between Power Outer Mirror Heater Terminals
Courtesy of MAZDA MOTORS CORP.
