Outer Mirror Glass Disassembly Note

  1. Press area A of the mirror glass so that area B moves outward.
    Fig 1: Repositioning Mirror Glass
    G03637071Courtesy of MAZDA MOTORS CORP.
  2. Detach pin A while lifting up the inside of the mirror glass holder.
  3. Pull out the mirror glass holder and detach pins B.
  4. Remove the mirror glass holder and the mirror glass as a single unit.

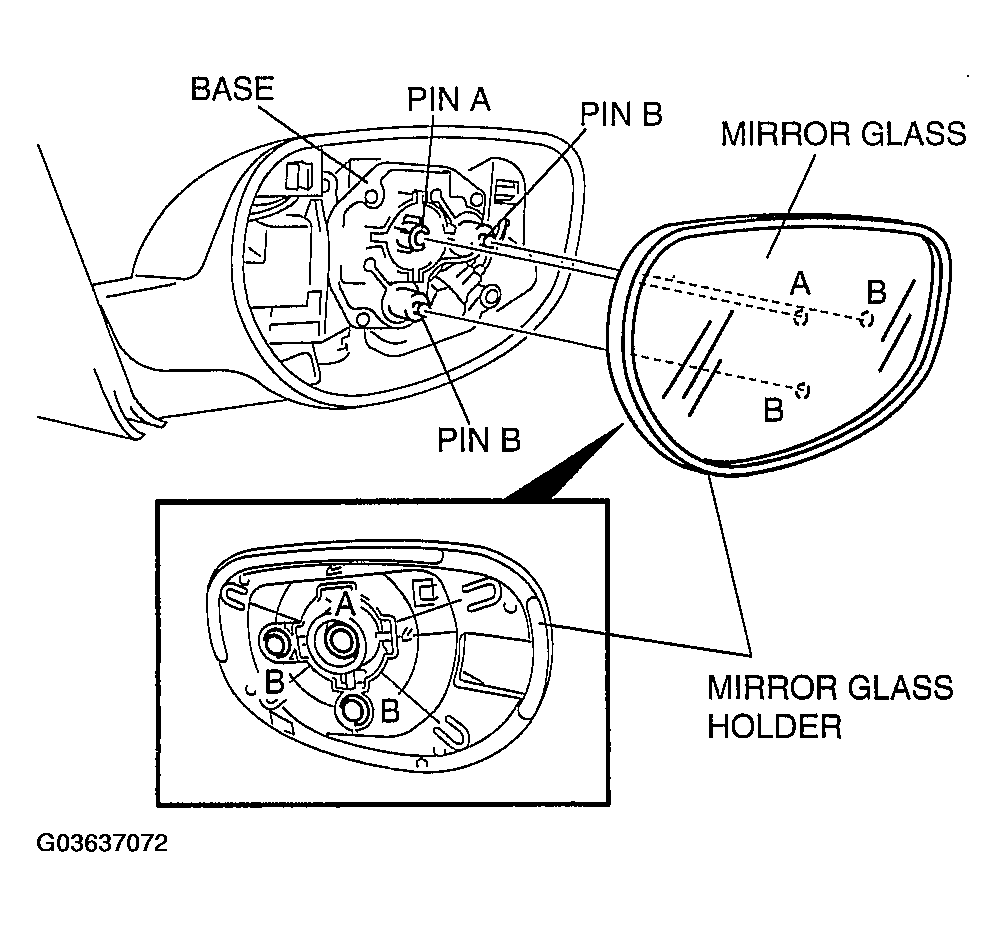

    Fig 2: Removing Mirror Glass Holder & Mirror Assembly
    G03637072Courtesy of MAZDA MOTORS CORP.
