Power Outer Mirror Assembly/Disassembly: Notes

  1. Disassemble in the order indicated in the figure.
  2. Assemble in the reverse order of disassembly.

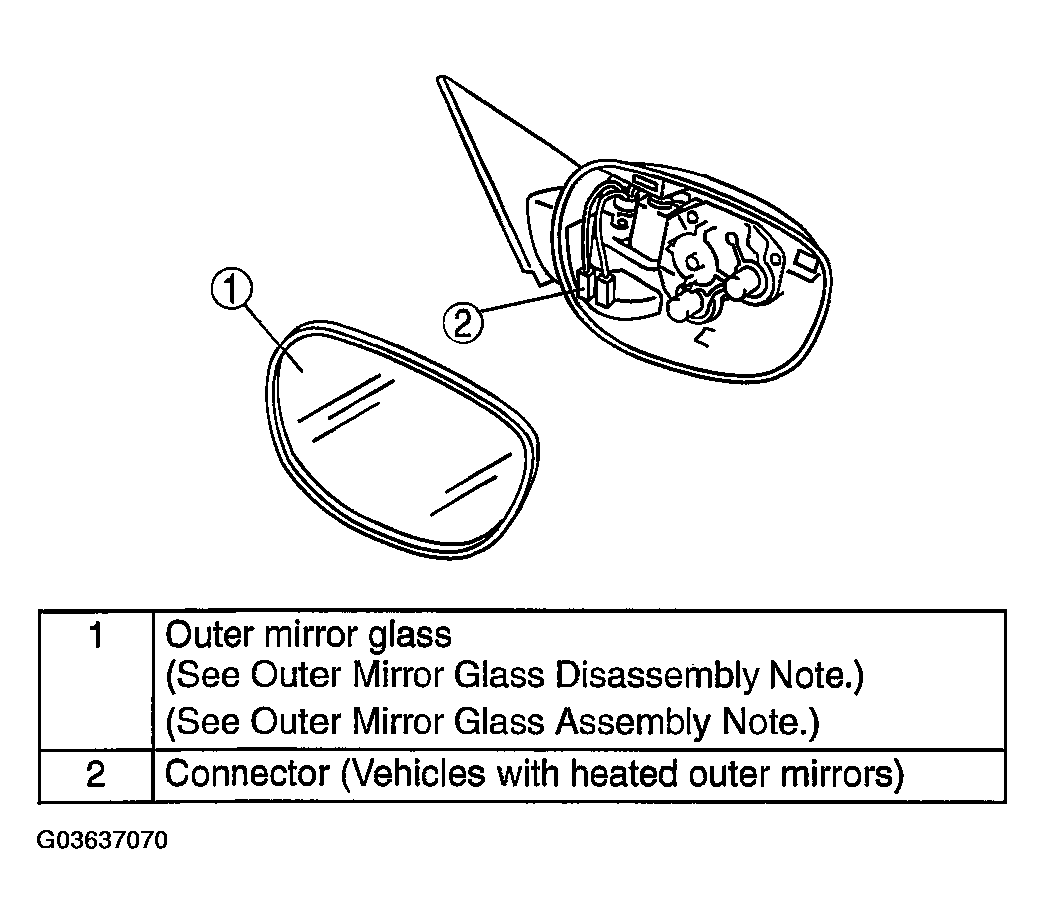

    3. Fig 1: Power Outer Mirror Assembly/Disassembly
    G03637070Courtesy of MAZDA MOTORS CORP.
