Home >> Mazda >> 2005 >> 3 SP23, 4D Hatchback, Automatic >> Repair and Diagnosis >> Body & Frame >> Glass/Windows/Mirrors >> Glass/Windows/Mirrors Location Index

Glass/Windows/Mirrors Location Index

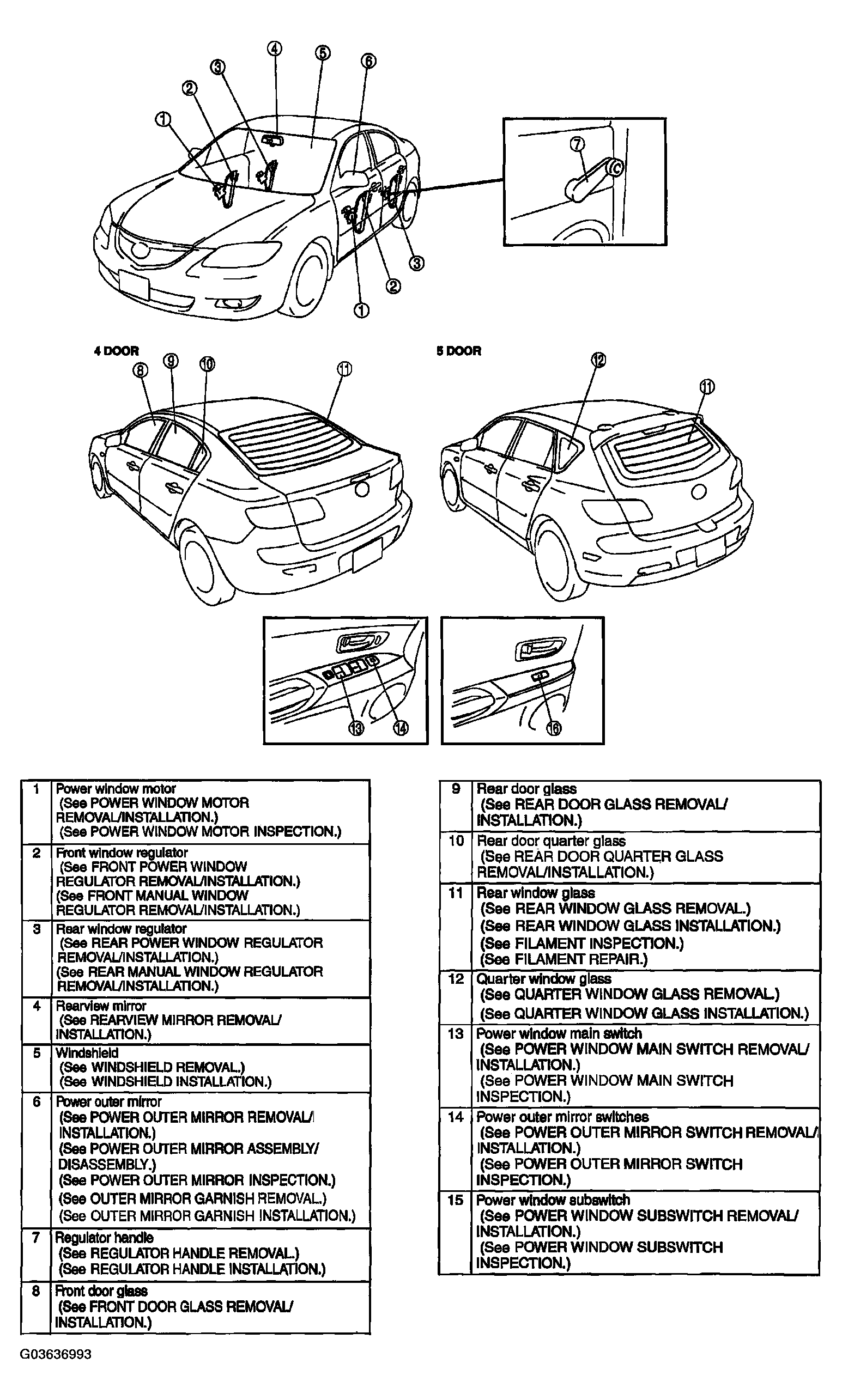

Fig 1: Glass/Windows/Mirrors Location Index

G03636993

Courtesy of MAZDA MOTORS CORP.
