Trunk End Trim Removal/Installation

  1. Remove the fasteners.
  2. Pull the trunk end trim upward, then detach clips A, locator pins B and tabs.
  3. Remove the trunk end trim.
  4. Install in the reverse order of removal.

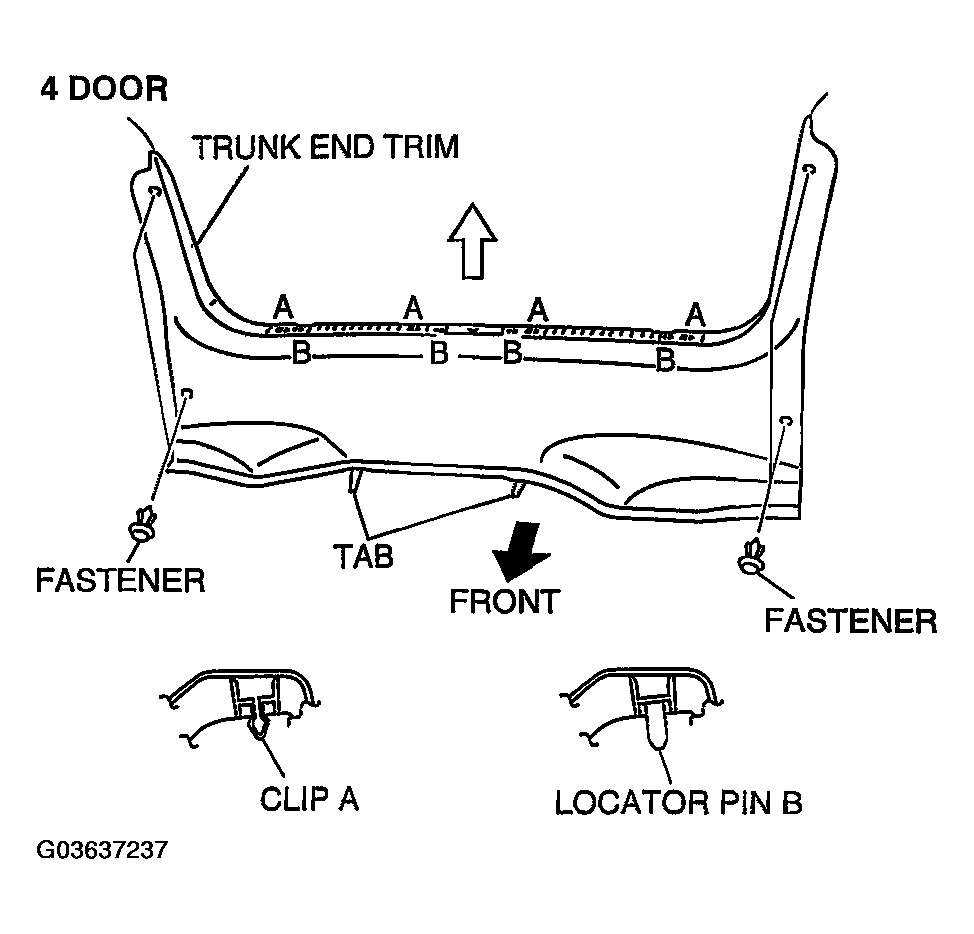

    Fig 1: Trunk End Trim Removal/Installation - 4 Door
    G03637237Courtesy of MAZDA MOTORS CORP.

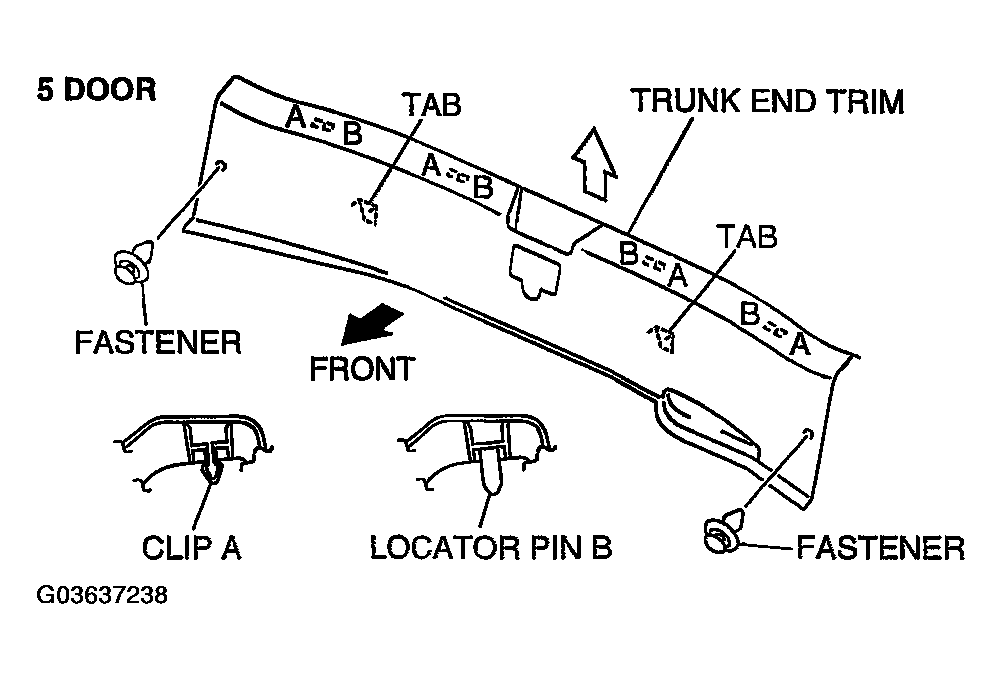

    Fig 2: Trunk End Trim Removal/Installation - 5 Door
    G03637238Courtesy of MAZDA MOTORS CORP.
