Liftgate Side Trim Removal/Installation

  1. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION  )

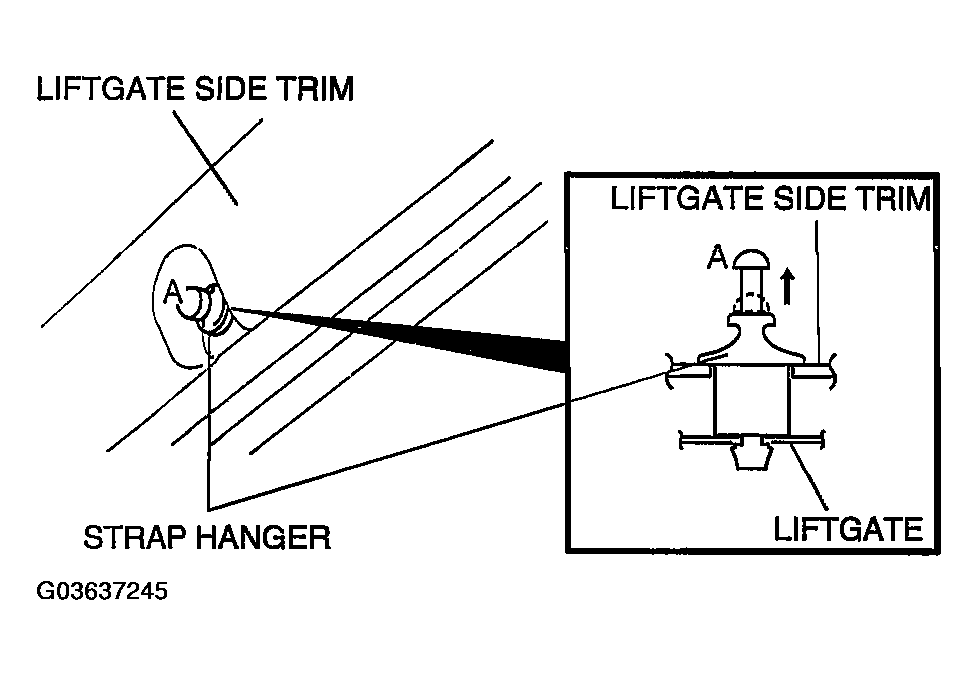

  2. Pull the point A of the strap hanger as shown in the figure.
    Fig 1: Identifying Strap Hanger
    G03637245Courtesy of MAZDA MOTORS CORP.
  3. Remove the strap hanger.
  4. Pull the liftgate side trim outward and detach clip A, locator pin B.
  5. Detach the tab C and remove the liftgate side trim.
  6. Install in the reverse order of removal.

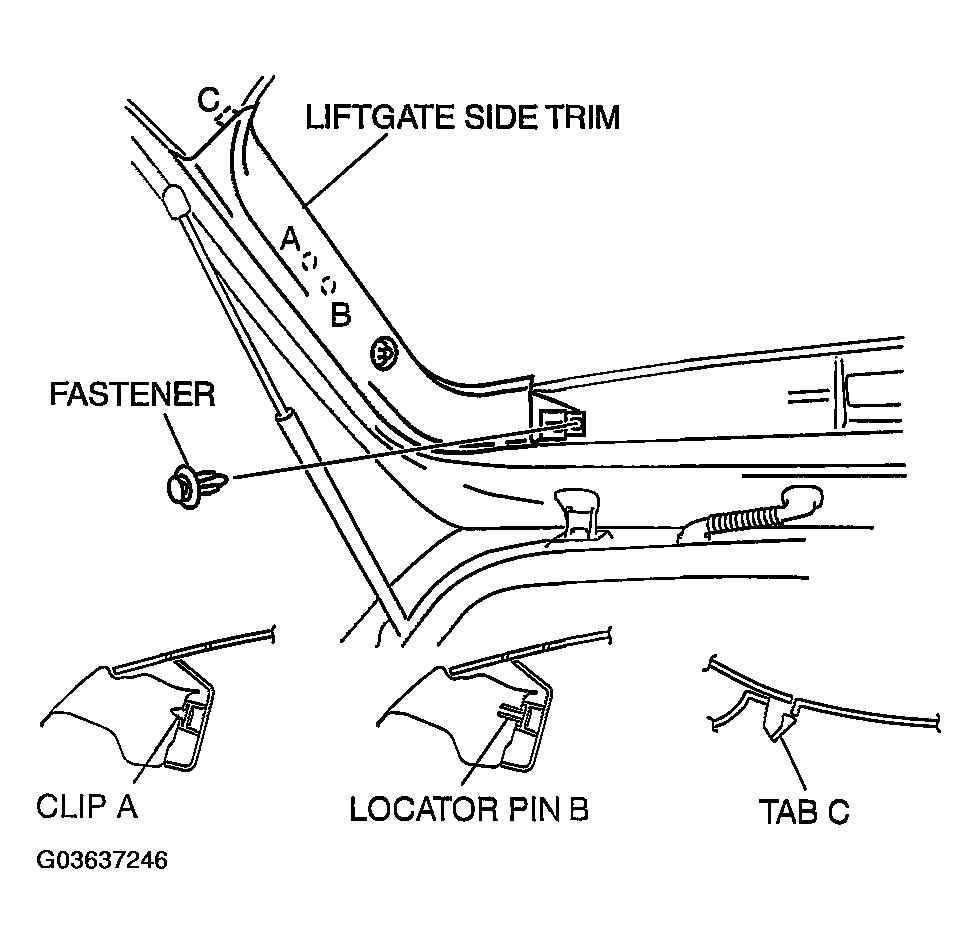

    Fig 2: Liftgate Side Trim Removal/Installation
    G03637246Courtesy of MAZDA MOTORS CORP.
