Front Side Trim Removal/Installation

  1. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION  )
  2. Remove the fastener.
  3. Pull the front side trim in the direction of the arrow and detach clip A and locator pin B.
  4. Install in the reverse order of removal.

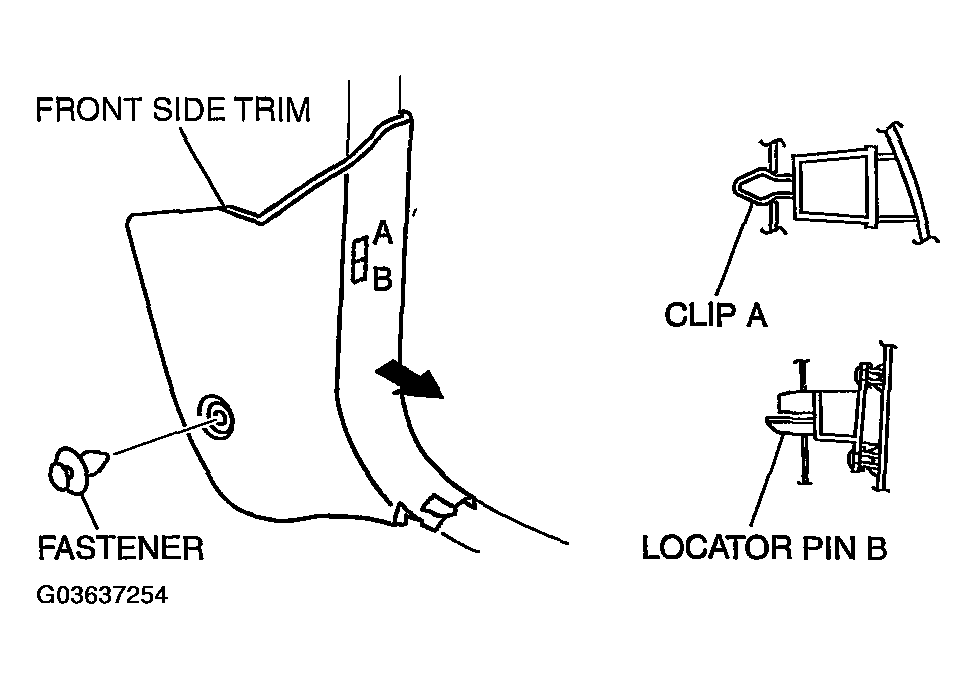

    Fig 1: Front Side Trim Removal/Installation
    G03637254Courtesy of MAZDA MOTORS CORP.
