Liftgate Latch Switch Inspection

When inspecting the latch, press the latch lever using a flathead screwdriver or a similar tool.

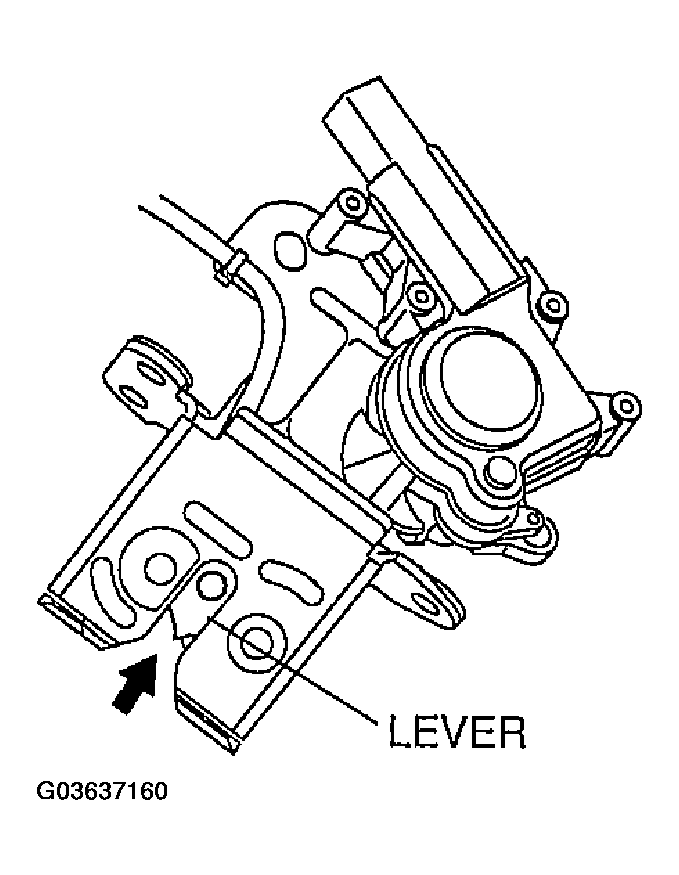

Fig 1: Identifying Liftgate Latch Lever
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity between the liftgate latch switch terminals.
- If not as specified, replace the liftgate latch and lock actuator.
Fig 2: Liftgate Latch Switch Continuity Specifications
Courtesy of MAZDA MOTORS CORP.

Fig 3: Identifying Liftgate Latch Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
