Woofer Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front seat, (passenger-side) (See FRONT SEAT REMOVAL/INSTALLATION .)
  3. Pull the cover outward.
  4. Remove in the order indicated in the figure.
  5. Install in the reverse order of removal.

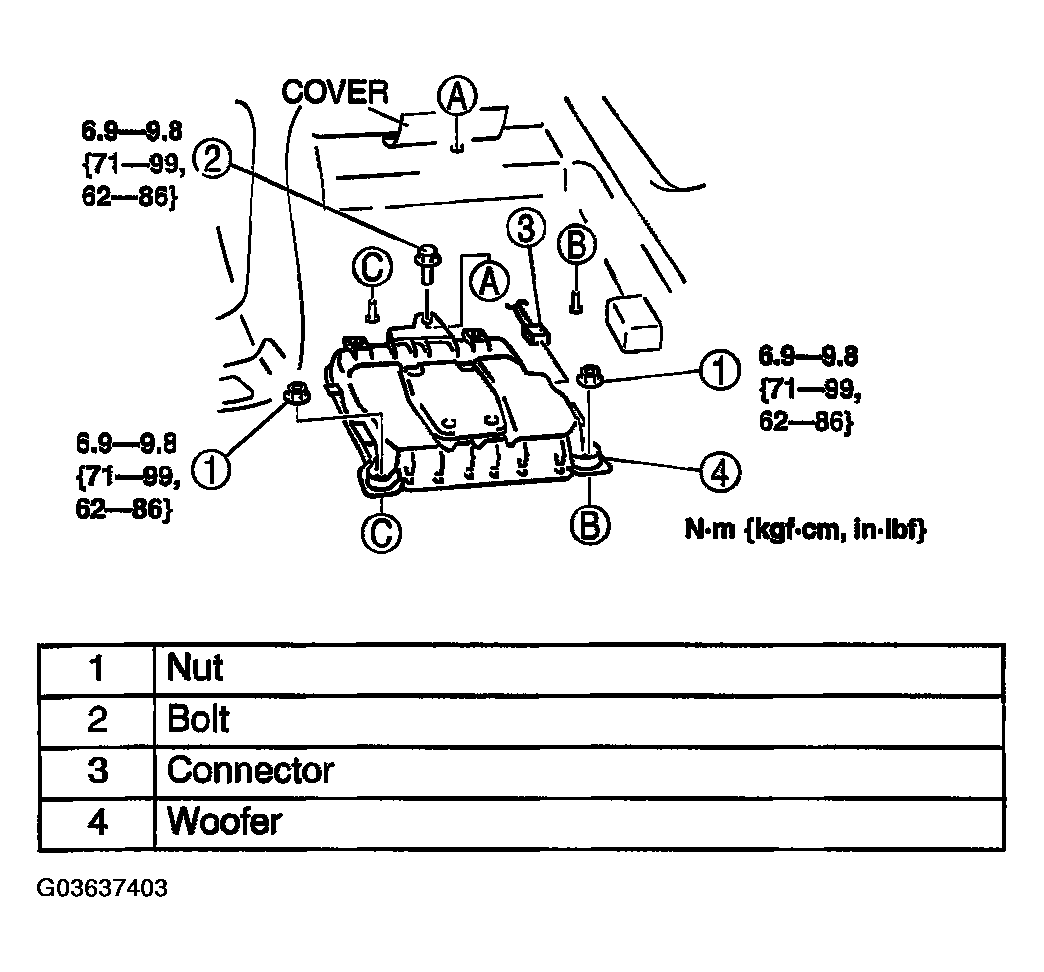

    6. Fig 1: Woofer Removal/Installation & Tightening Specifications
    G03637403Courtesy of MAZDA MOTORS CORP.
