Woofer Inspection

  1. Verify that the continuity between the audio amplifier and woofer is as indicated in the figures.
    • If not as specified in the figures, replace the related wiring harnesses.

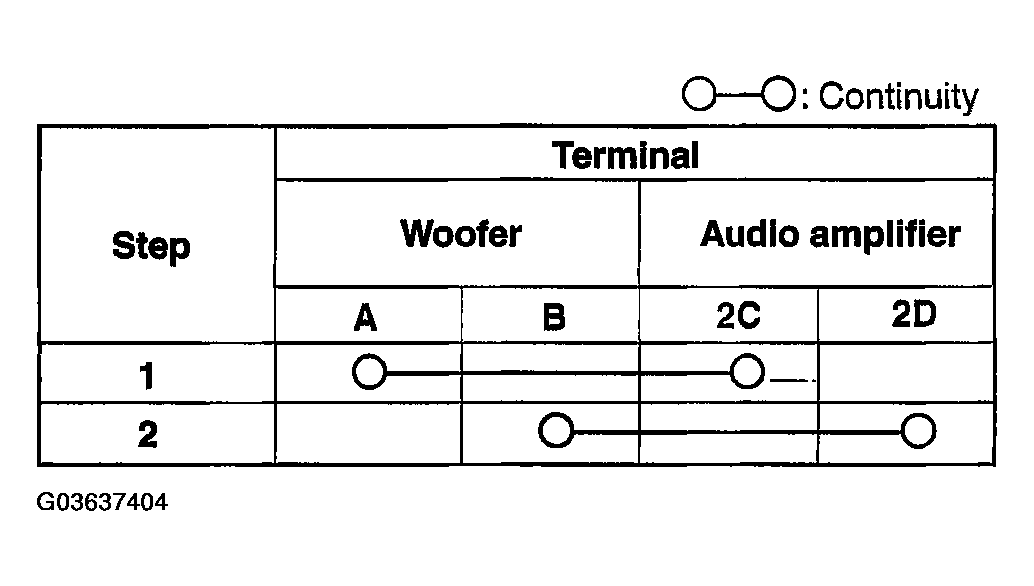

    Fig 1: Woofer Continuity Specifications
    G03637404Courtesy of MAZDA MOTORS CORP.

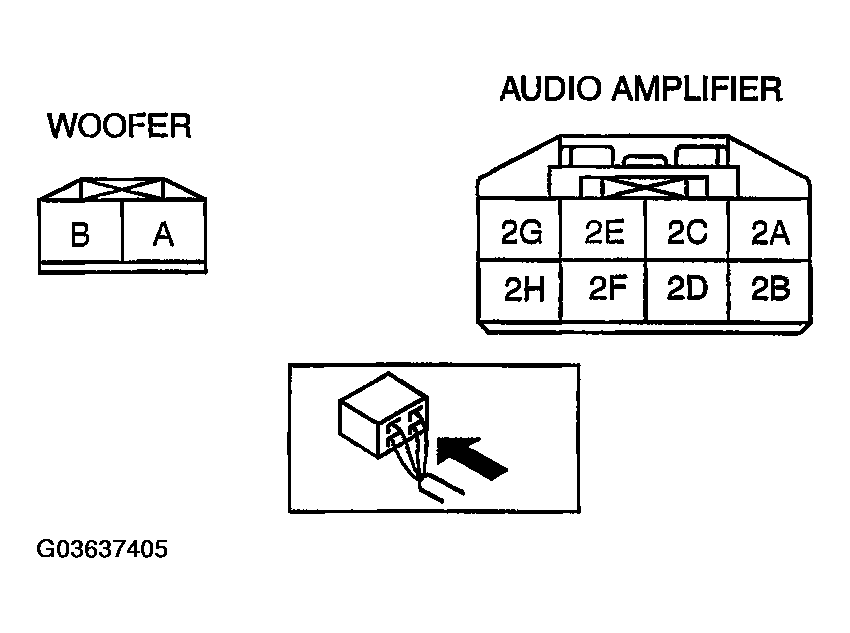

    Fig 2: Identifying Woofer & Audio Amplifier Connector Terminals
    G03637405Courtesy of MAZDA MOTORS CORP.
