Front Door Speaker Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the regulator handle. (Vehicle without power window system) (See REGULATOR HANDLE REMOVAL .) (See REGULATOR HANDLE INSTALLATION .)
  4. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the figure.
  6. Install in the reverse order of removal.

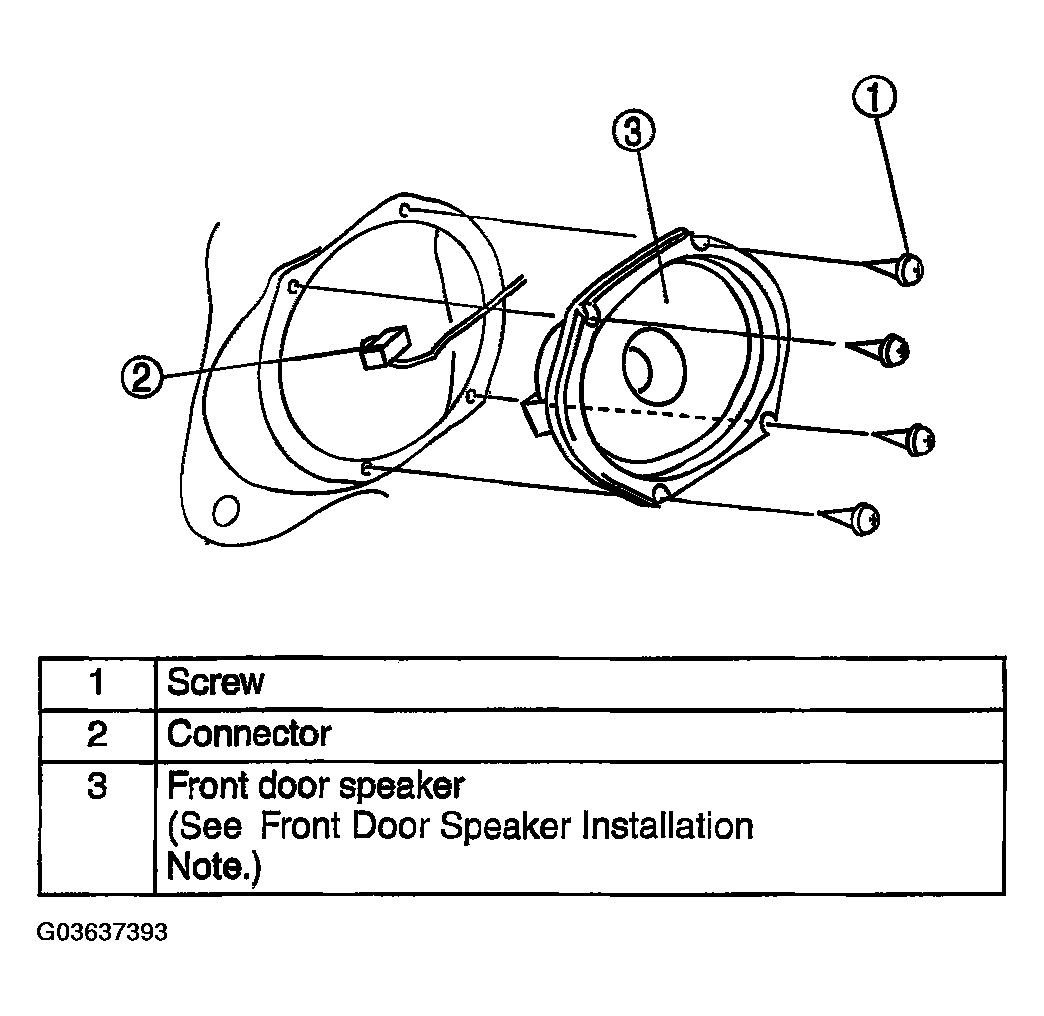

    7. Fig 1: Front Door Speaker Removal/Installation
    G03637393Courtesy of MAZDA MOTORS CORP.
