Audio Amplifier Removal/Installation

  1. Disconnect the negative battery cable.
  2. Pull the cover outward.
  3. Remove in the order indicated in the figure.
  4. Install in the reverse order of removal.

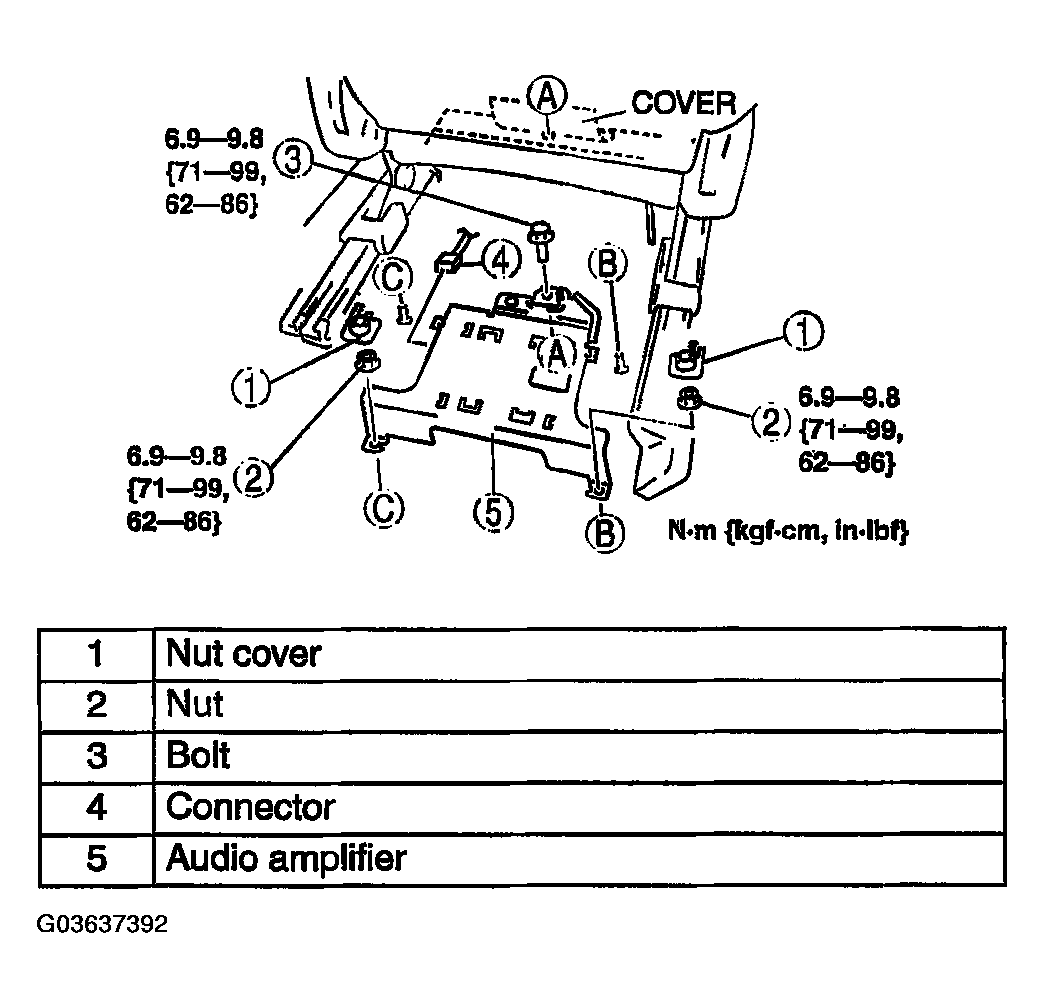

    5. Fig 1: Audio Amplifier Removal/Installation & Tightening Specifications
    G03637392Courtesy of MAZDA MOTORS CORP.
