Piston - Selection

NOTE:
  • The cylinder bore must be within the specifications for taper and out-of-round before fitting a piston. Refer to SPECIFICATIONS .

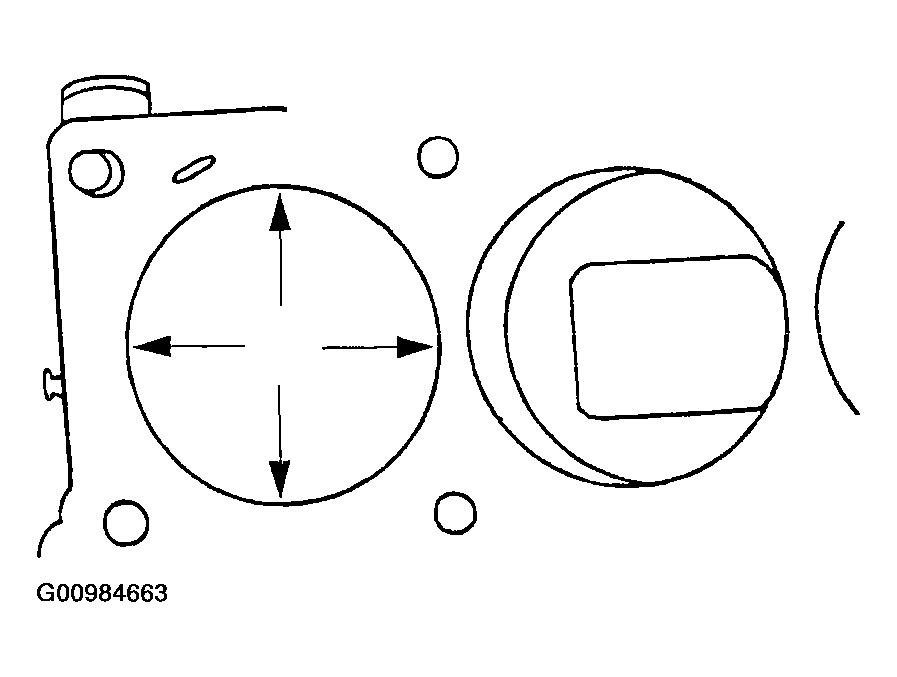

    Fig 1: Measuring Cylinder Bore
    G00984663Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • For precision fit, new pistons are divided into three categories within each size range based on their relative position within the range. A paint spot on the new pistons indicates the position within the size range.
  1. Select a piston size based on the cylinder bore.

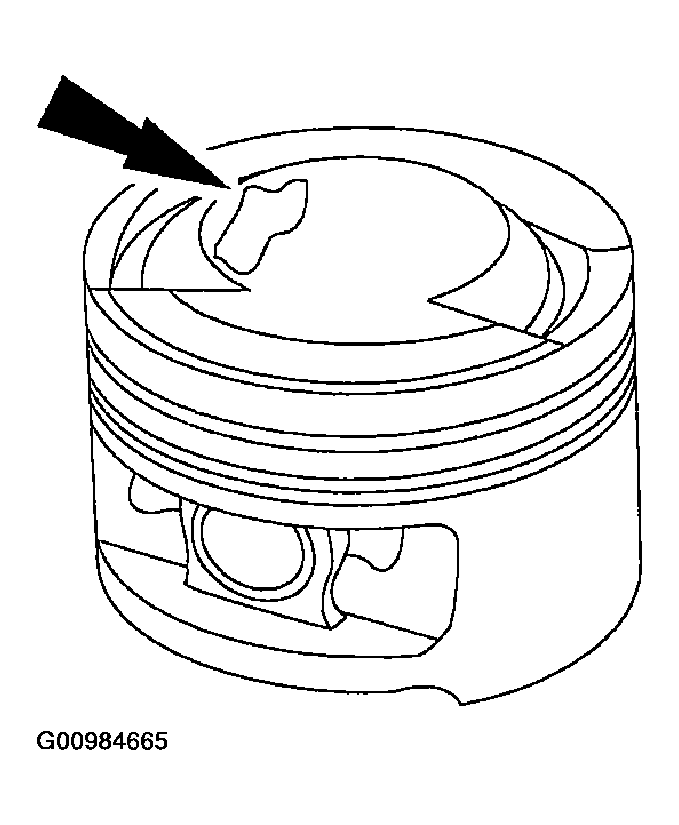

    2. Fig 2: Locating Paint Identification Mark
    G00984665Courtesy of MAZDA MOTORS CORP.
  2. Choose the piston with the correct paint color.
