Piston - Pin Diameter

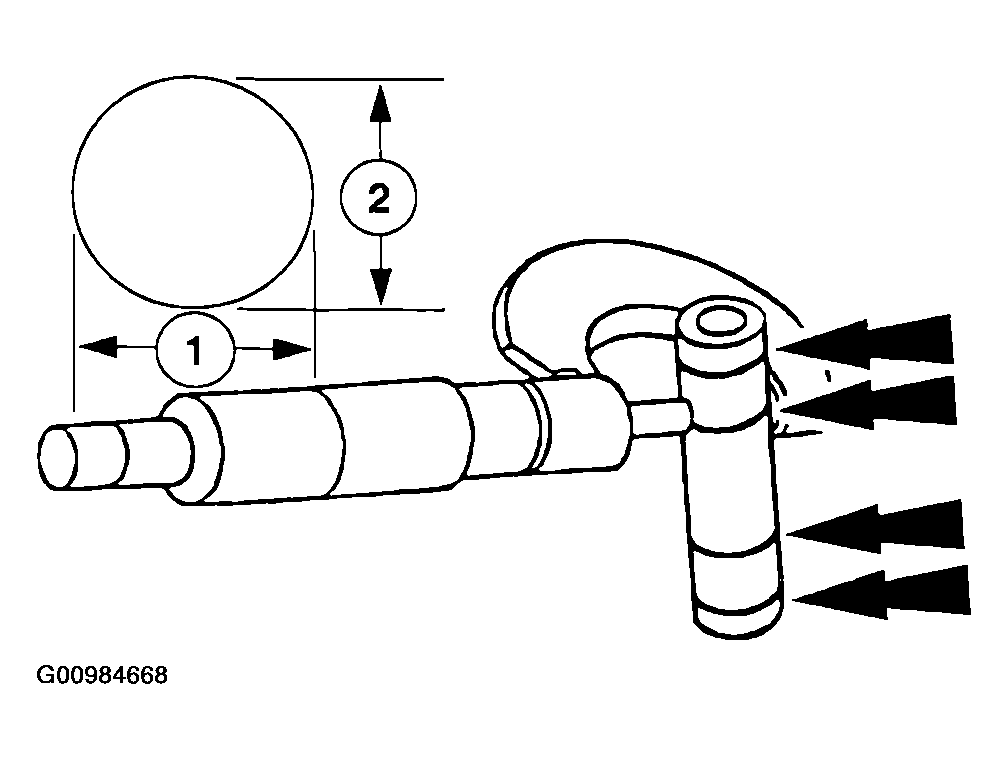

    Fig 1: Measuring Piston Pin Diameter
    G00984668Courtesy of MAZDA MOTORS CORP.
  1. Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification. Refer to SPECIFICATIONS .
    1. If out of specification, install new components as necessary.
