Piston - Inspection

CAUTION:

Do not use a caustic cleaning solution or a wire brush to clean the pistons or damage can occur.

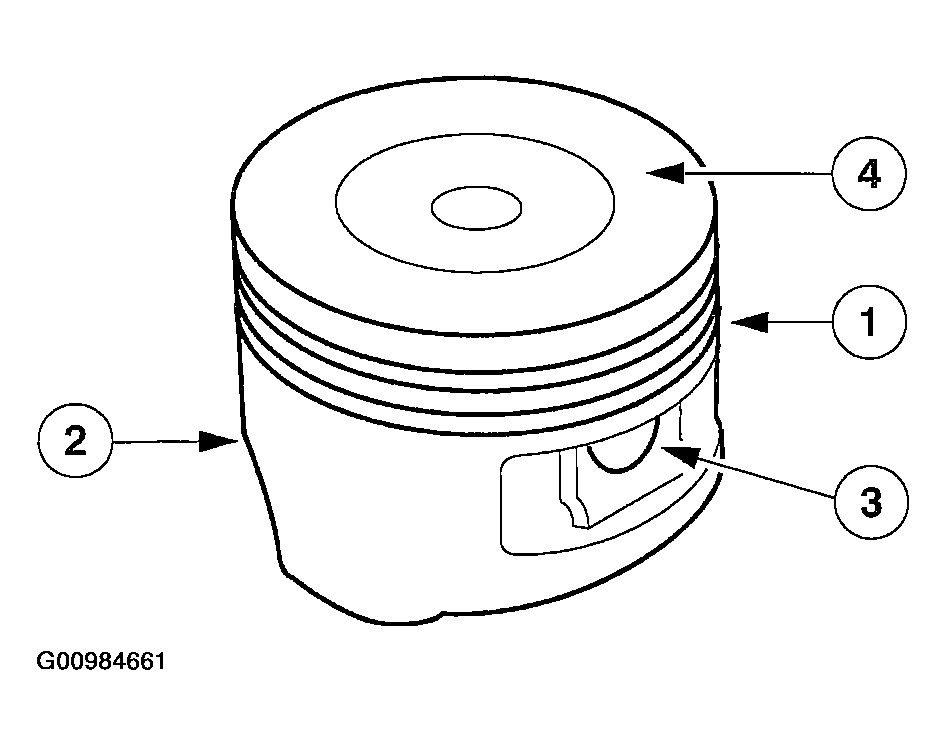

Fig 1: Identifying Piston Inspection Areas

Courtesy of MAZDA MOTORS CORP.

Clean and inspect the (1) ring lands, (2) skirts, (3) pin bosses, and the (4) tops of the pistons. If wear marks, scores or glazing is found on the piston skirt, check for a bent or twisted connecting rod. Refer to SPECIFICATIONS .

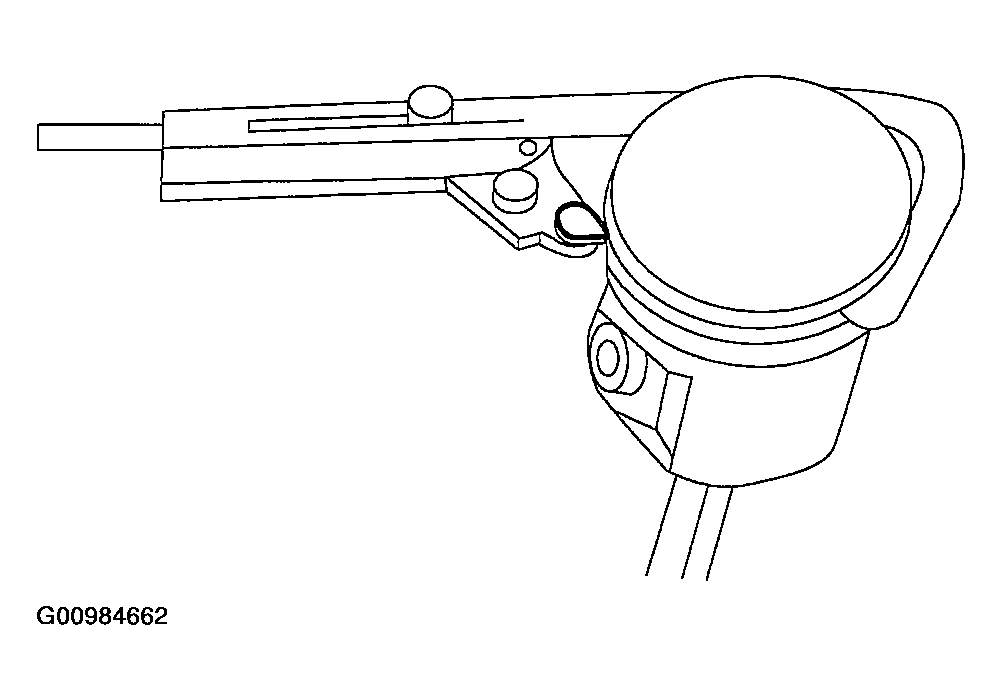

Fig 2: Cleaning Piston Ring Grooves

Courtesy of MAZDA MOTORS CORP.

Use the Piston Ring Groove Cleaner to clean the piston ring grooves.
1. Make sure the oil ring holes are clean.
