Piston - Diameter

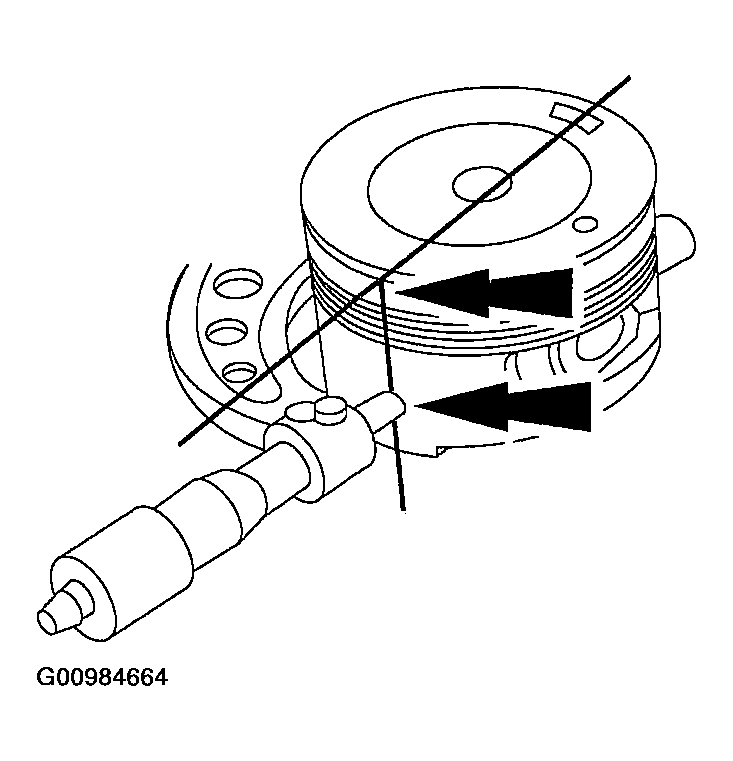

    Fig 1: Measuring Piston Diameter
    G00984664Courtesy of MAZDA MOTORS CORP.
  1. Measure the piston dome and skirt diameter 90 degrees from the piston pin at the points indicated. Refer to SPECIFICATIONS .
    1. If it is out of specification, install new components as necessary.
