3.0L 4V (Auto)

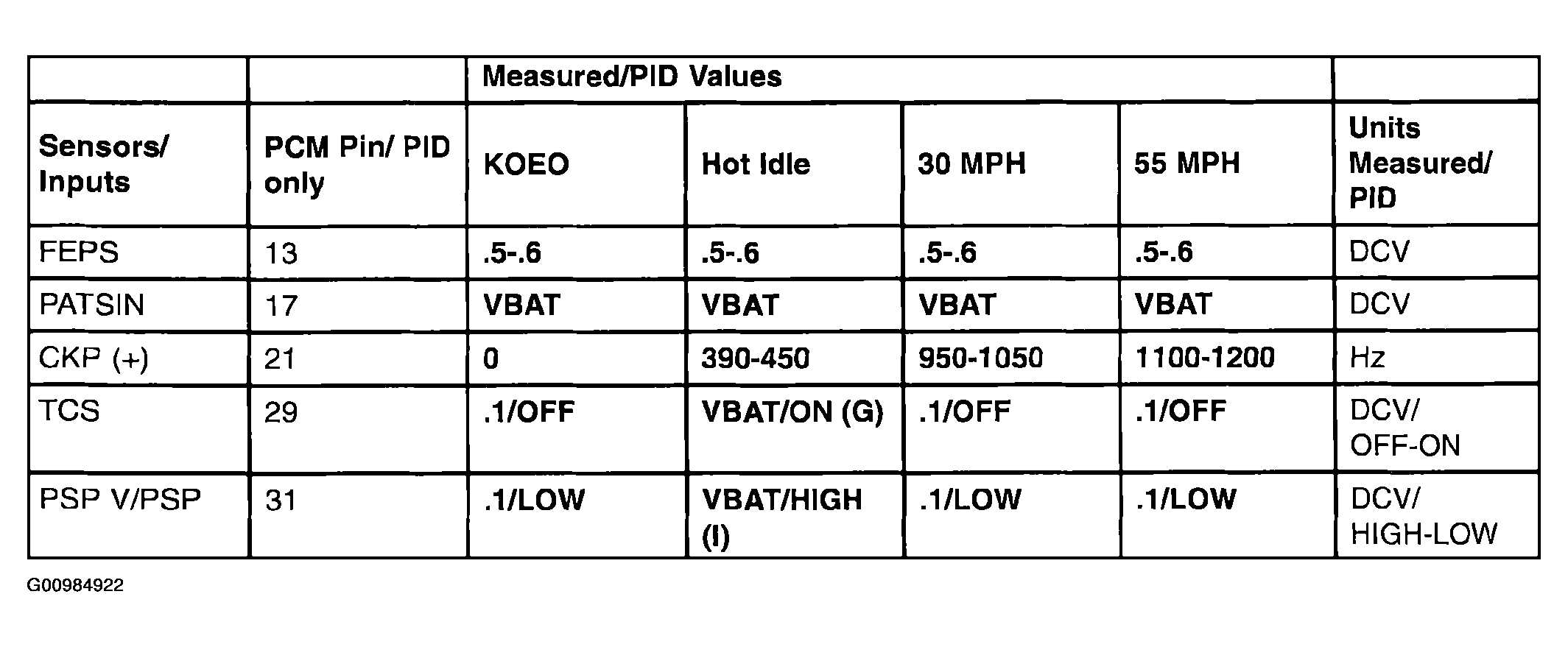

Fig 1: Identifying PID/DATA Monitor Reference Value (3.0L A/T) (1 Of 2)
G00984922Courtesy of MAZDA MOTORS CORP.

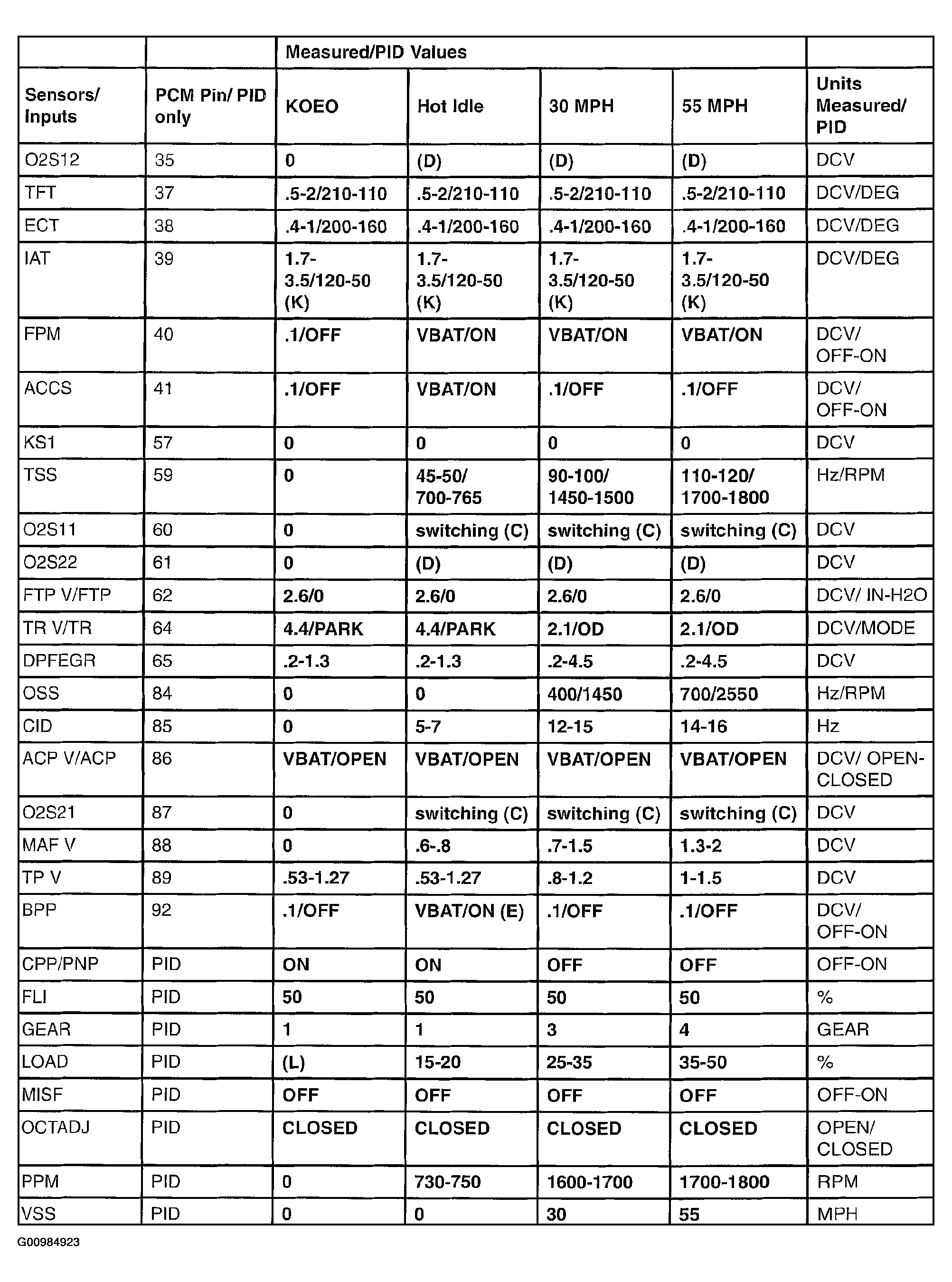

Fig 2: Identifying PID/DATA Monitor Reference Value (3.0L A/T) (2 Of 2)
G00984923Courtesy of MAZDA MOTORS CORP.
