Disassembly Note

  1. Remove and discard the low/reverse clutch piston outer seal on the low/reverse clutch piston.

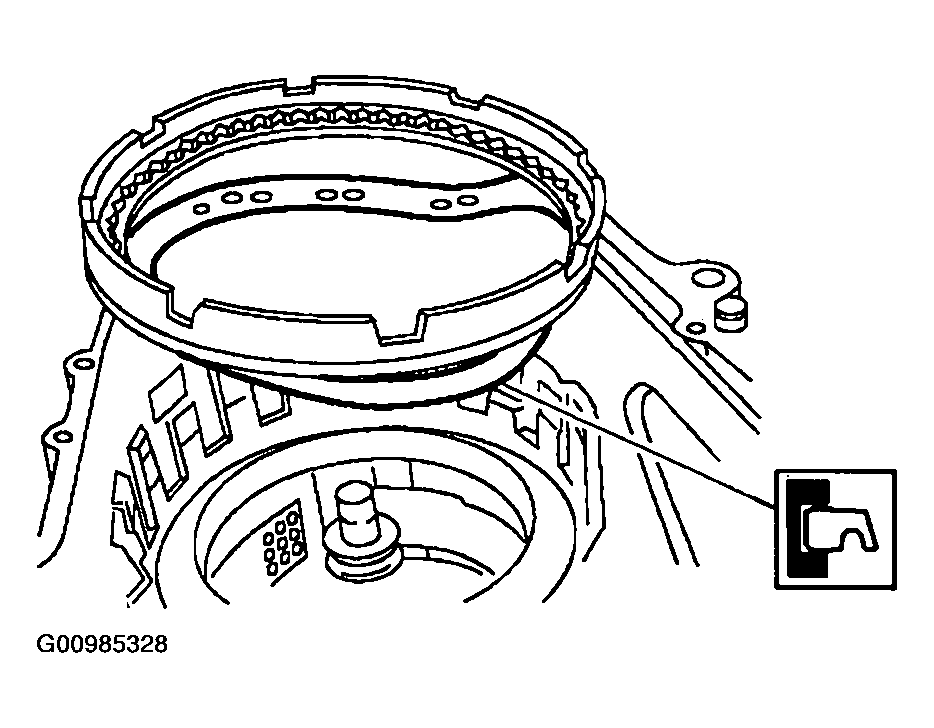

    Fig 1: Removing Low/Reverse Clutch Piston Outer Seal On Low/Reverse Clutch Piston
    G00985328Courtesy of MAZDA MOTORS CORP.
  2. Remove and discard the low/reverse clutch piston inner seal on the low/reverse clutch piston.
    Fig 2: Removing Low/Reverse Clutch Piston Inner Seal On Low/Reverse Clutch Piston
    G00985329Courtesy of MAZDA MOTORS CORP.
