Technical Data [Steering)
>>
Specifications
>>
General Specifications
General Specifications

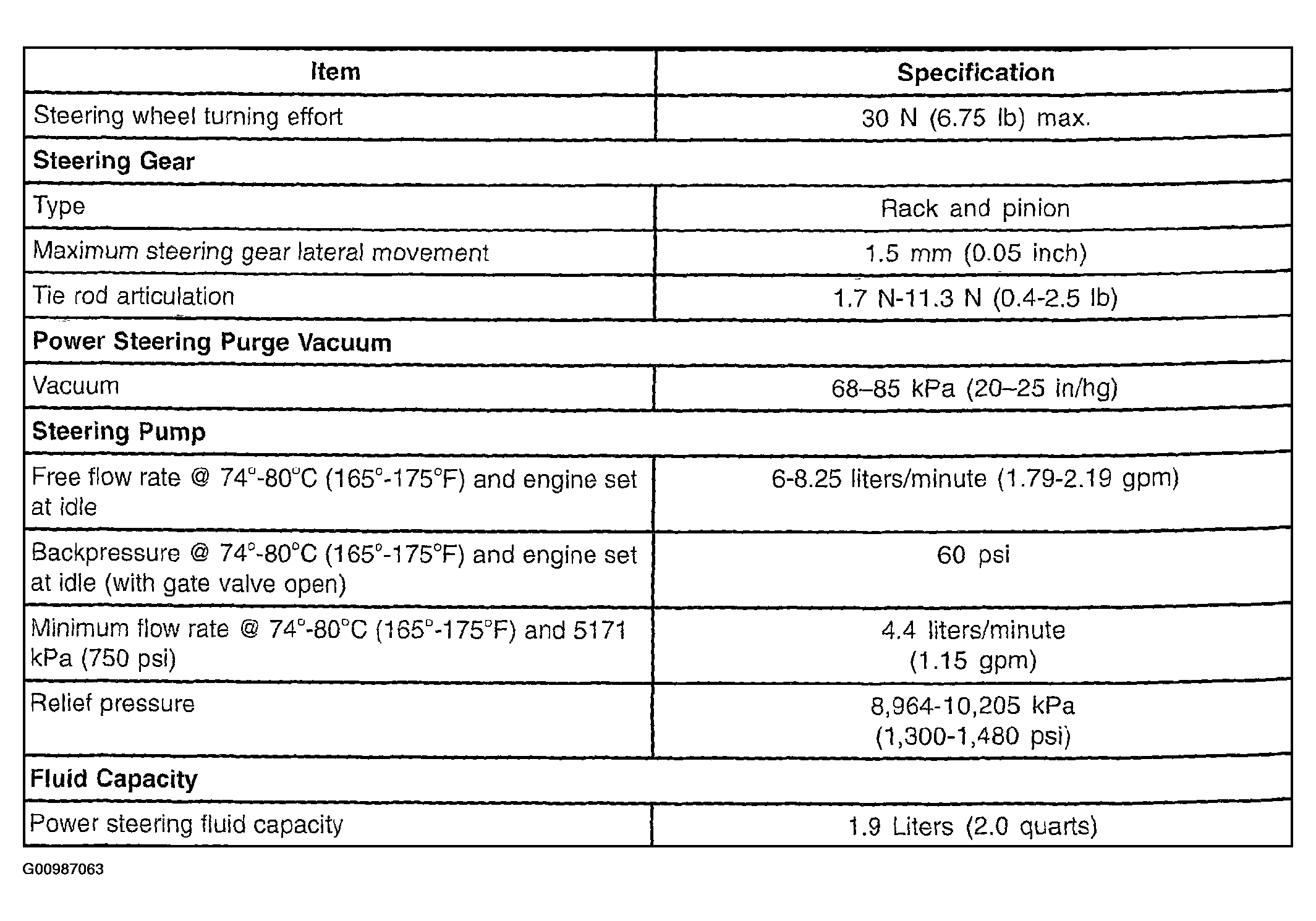

Fig 1: Specifications Table (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Specifications Table (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
