Steering Wheel: Removal

WARNING:
  • Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING:
  • Carry a live side air bag module with the air bag and tear seam pointed away from your body. This will reduce the risk of injury in the event of an accidental deployment.
WARNING:
  • Do not set a live side air bag module down on the cover tear seam. This will reduce the risk of injury in the event of an accidental deployment.
WARNING:
  • After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterward.
WARNING:
  • Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
WARNING:
  • Vehicle sensor orientation is critical for correct system operation. If a vehicle equipped with an air bag supplemental restraint system (SRS) is involved in a collision, inspect the sensor mounting bracket and wiring pigtail for deformation. Install and correctly position a new sensor or any other damaged supplemental restraint system (SRS) components whether or not the air bag is deployed.
WARNING:
  • To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or installing a new front or side supplemental restraint system (SRS) components and before repairing, installing new, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.

    Refer to the appropriate manual to determine the location of the front air bag sensors.

    The side air bag sensors are located at or near the base of the B-pillar.

    To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).

WARNING:
  • The restraint system diagnostic tool is for restraint system repair only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
NOTE:
  • Restraint system diagnostic tools must be installed under the seats in the side air bag to floor connector.
NOTE:
  • Diagnostics or repairs are not to be carried out on a side air bag system or a safety belt pretensioner (if equipped) with the seat in the vehicle. Prior to attempting to diagnose/repair the side air bag system or a safety belt pretensioner (if equipped) the seat must be removed from the vehicle and the restraint system diagnostic tool must be installed in side air bag connector at the floor connector. The restraint system diagnostic tool must be removed prior to operating the vehicle.
NOTE:
  • After diagnosing/repairing a seat system the restraint system diagnostic simulator must be removed before operating the vehicle.
NOTE:
  • A repair is made by installing a new component only. If a new part is installed and the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
NOTE:
  • If a side air bag deployment took place a new seatback pad, trim cover, and side air bag module must be installed. A new seatback frame should be installed if necessary.

All vehicles

  1. Position the front seats forward.
  2. Disconnect the battery ground cable and wait at least one minute. Refer to BATTERY DISCONNECT .

    Vehicles with side air bags

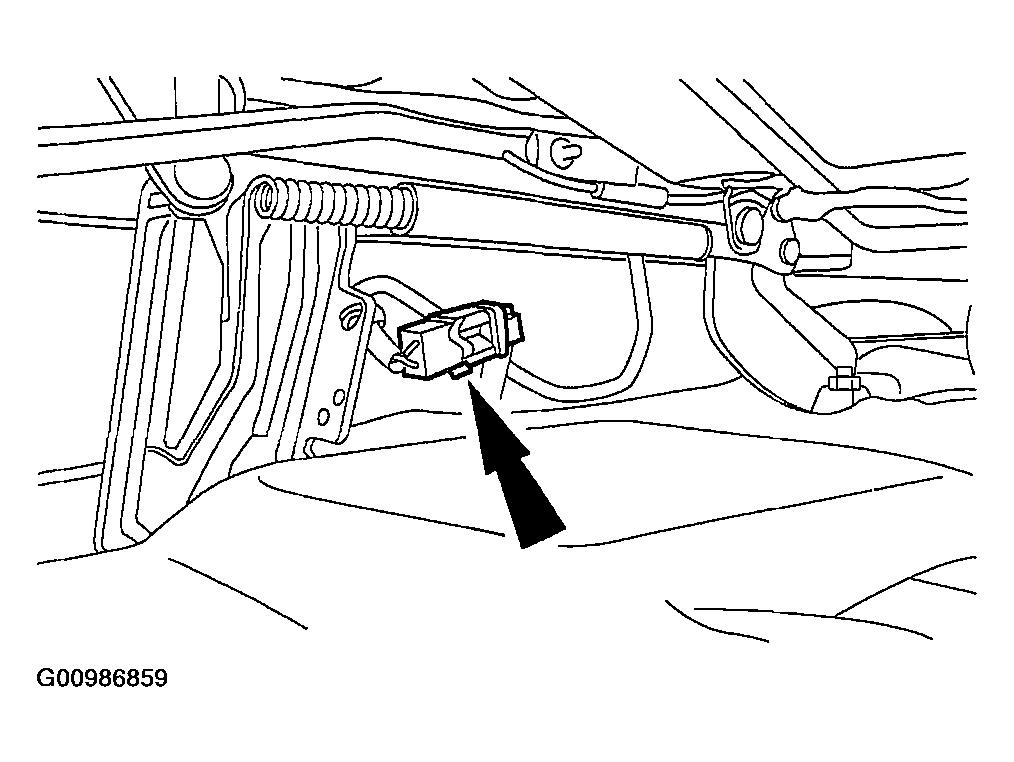

    Fig 1: Disconnecting Driver Seat Side Air Bag Module Electrical Connector
    G00986859Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the driver seat side air bag module electrical connector.
    Fig 2: Connecting Special Tool To Driver Seat Side Air Bag Module Body Harness Electrical Connector
    G00986860Courtesy of MAZDA MOTORS CORP.
  4. Connect the special tool to the driver seat side air bag module body harness electrical connector.

    All vehicles

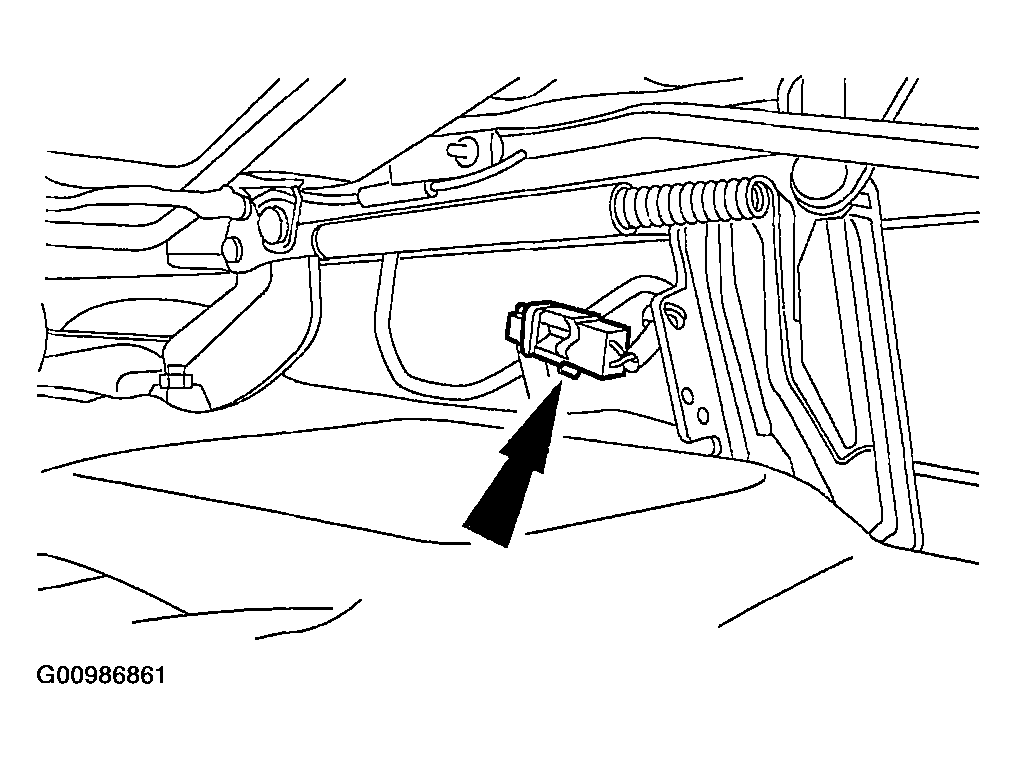

    Fig 3: Disconnecting Driver-Side Seat Safety Belt Pretensioner Electrical Connector
    G00986861Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the driver-side seat safety belt pretensioner electrical connector.
    Fig 4: Connecting Special Tool To Driver-Side Seat Safety Belt Pretensioner Body Harness Electrical Connector
    G00986862Courtesy of MAZDA MOTORS CORP.
  6. Connect the special tool to the driver-side seat safety belt pretensioner body harness electrical connector.

    Vehicles with side air bags

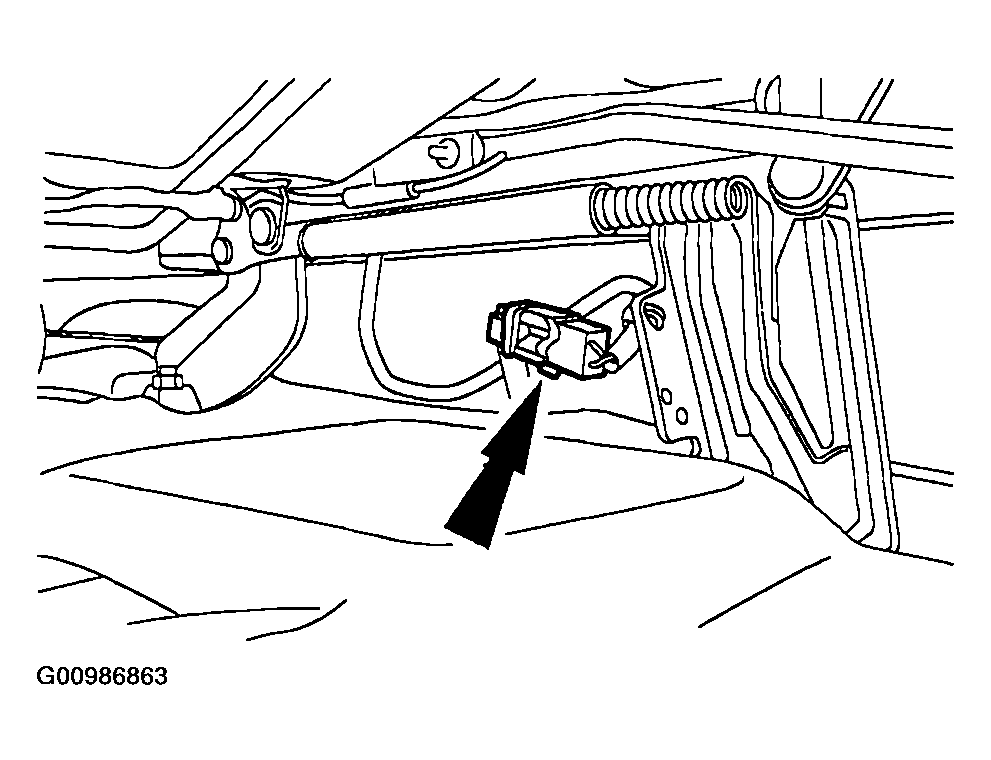

    Fig 5: Disconnecting Passenger Seat Side Air Bag Module Electrical Connector
    G00986863Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the passenger seat side air bag module electrical connector.
    Fig 6: Connecting Special Tool To Passenger Seat Side Air Bag Module Body Harness Electrical Connector
    G00986864Courtesy of MAZDA MOTORS CORP.
  8. Connect the special tool to the passenger seat side air bag module body harness electrical connector.

    All vehicles

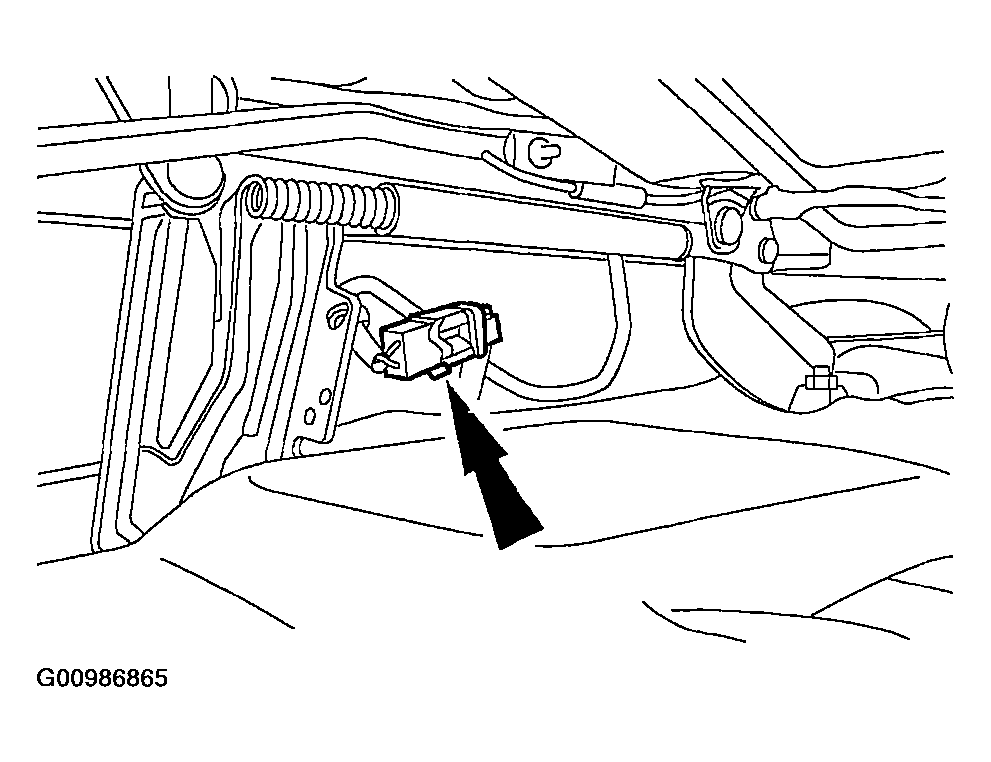

    Fig 7: Disconnecting Passenger-Side Seat Safety Belt Pretensioner Electrical Connector
    G00986865Courtesy of MAZDA MOTORS CORP.
  9. Disconnect the passenger-side seat safety belt pretensioner electrical connector.
    Fig 8: Connecting Special Tool To Passenger-Side Safety Belt Pretensioner Body Harness Electrical Connector
    G00986866Courtesy of MAZDA MOTORS CORP.
  10. Connect the special tool to the passenger-side safety belt pretensioner body harness electrical connector.
  11. Lower the glove compartment.
    1. Depress the locking tabs.

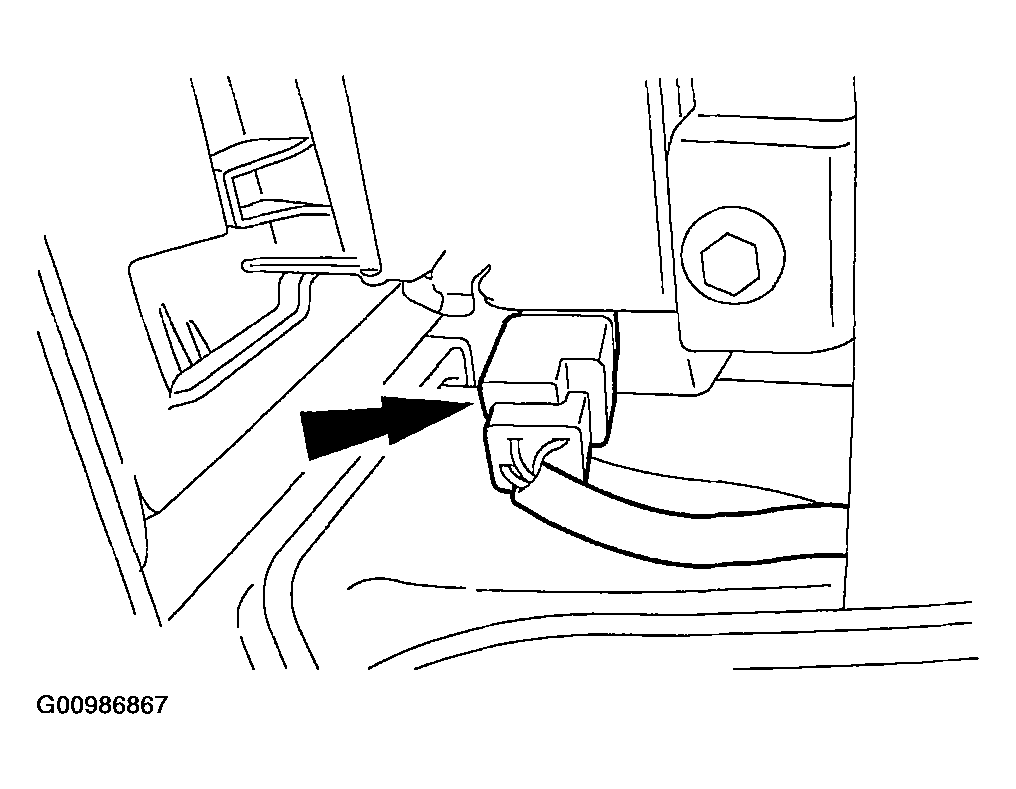

    Fig 9: Disconnecting Passenger Air Bag Module Electrical Connector
    G00986867Courtesy of MAZDA MOTORS CORP.
  12. Disconnect the passenger air bag module electrical connector.
    Fig 10: Connecting Special Tool To Instrument Panel Harness Side Of Passenger Air Bag Module Electrical Connector
    G00986868Courtesy of MAZDA MOTORS CORP.
  13. Connect the special tool to the instrument panel harness side of the passenger air bag module electrical connector.

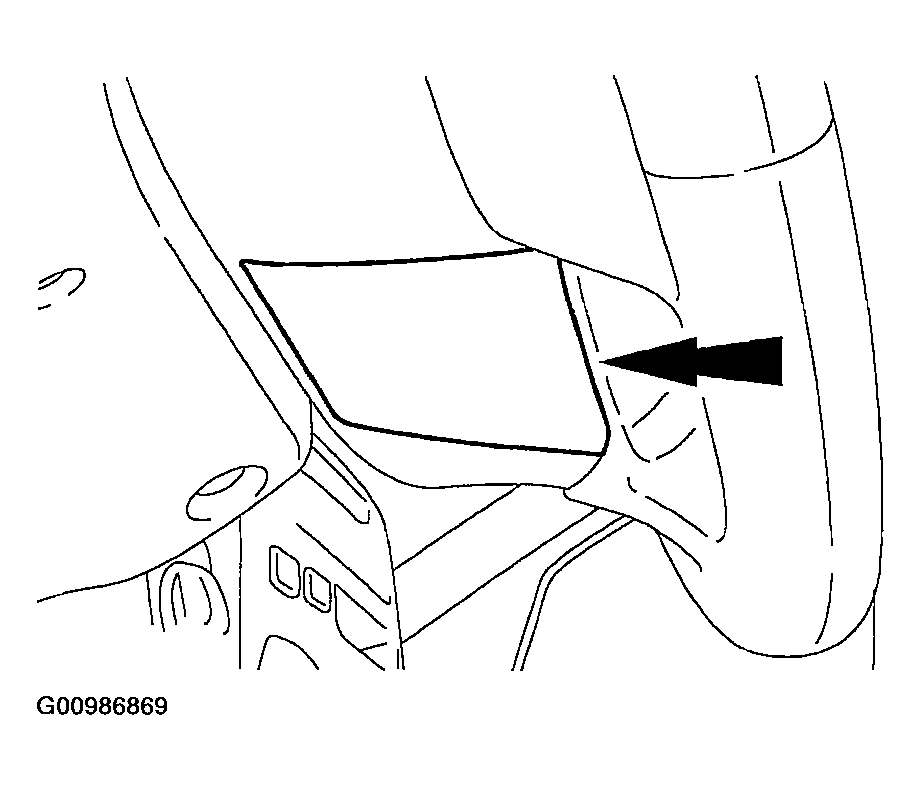

    Fig 11: Lowering Steering Wheel Air Bag Connector Access Cover
    G00986869Courtesy of MAZDA MOTORS CORP.
  14. Lower the steering wheel air bag connector access cover.

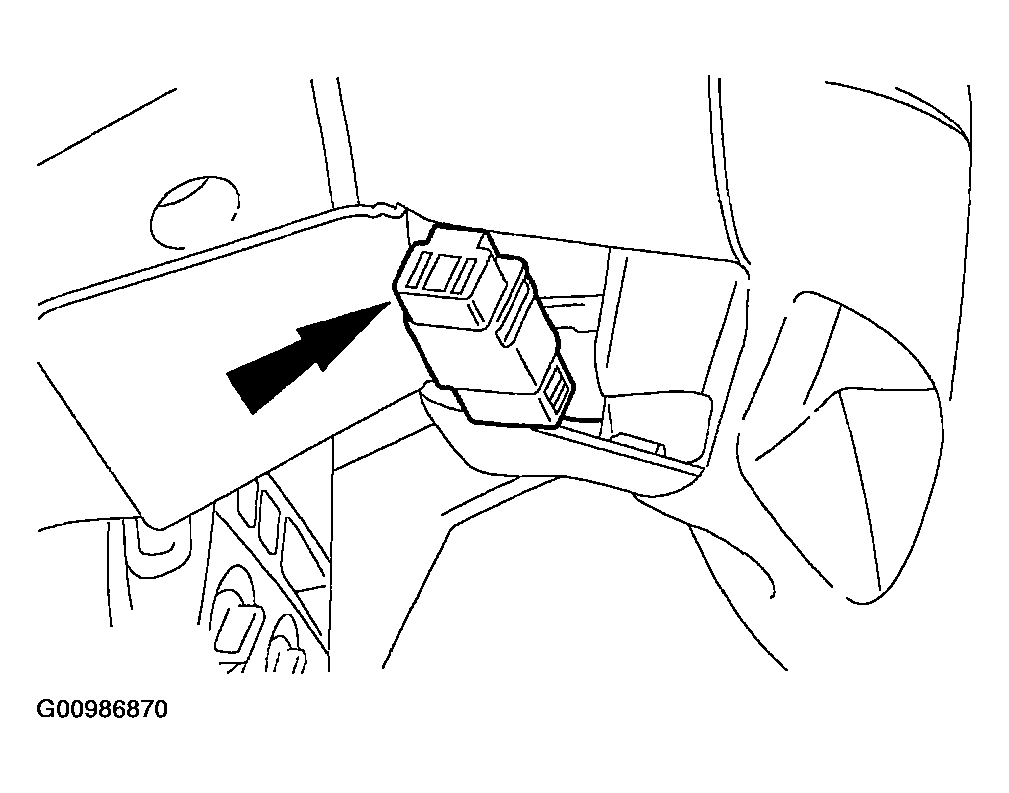

    Fig 12: Disconnecting Driver Air Bag Module Electrical Connector
    G00986870Courtesy of MAZDA MOTORS CORP.
  15. Disconnect the driver air bag module electrical connector.
    Fig 13: Connecting Special Tool To Instrument Panel Harness Side Of Driver Air Bag Module Electrical Connector
    G00986871Courtesy of MAZDA MOTORS CORP.
  16. Connect the special tool to the instrument panel harness side of the driver air bag module electrical connector.
  17. Connect the battery ground cable.
  18. Prove out the air bag system. Refer to AIR BAG RESTRAINT SYSTEMS article .
  19. Disconnect the battery ground cable and wait at least one minute. Refer to BATTERY DISCONNECT .
    Fig 14: Removing Special Tool From Instrument Panel Harness Side Of Driver Air Bag Module Electrical Connector
    G00986872Courtesy of MAZDA MOTORS CORP.
  20. Remove the special tool from the instrument panel harness side of the driver air bag module electrical connector.

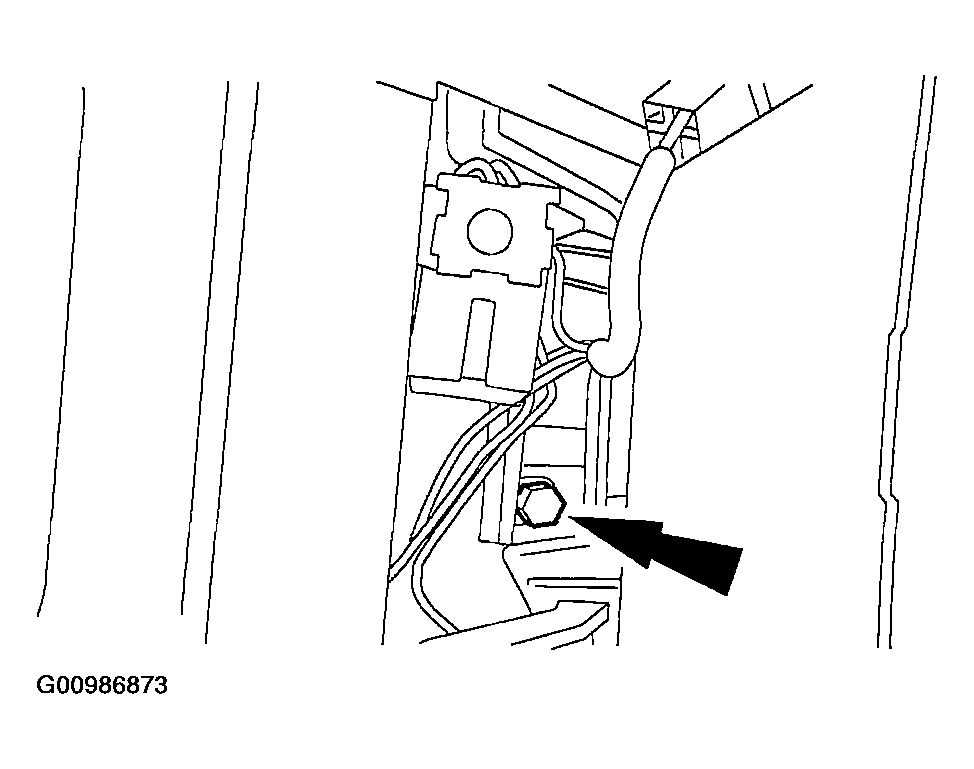

    Fig 15: Turning Pinion Shaft To Release Steering Wheel From Column Shaft
    G00986873Courtesy of MAZDA MOTORS CORP.
  21. Turn the pinion shaft to release the steering wheel from the column shaft.

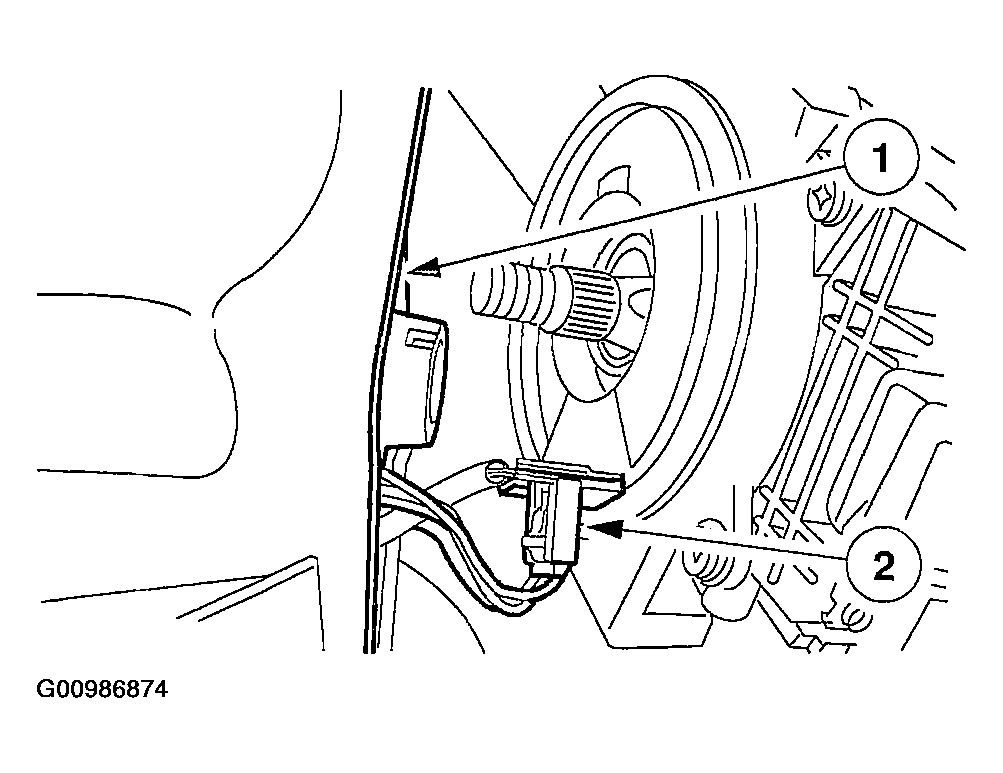

    Fig 16: Removing Steering Wheel
    G00986874Courtesy of MAZDA MOTORS CORP.
  22. Remove the steering wheel.
    1. Position the steering wheel rearward.
    2. Disconnect the electrical connector.
