Removal and Installation

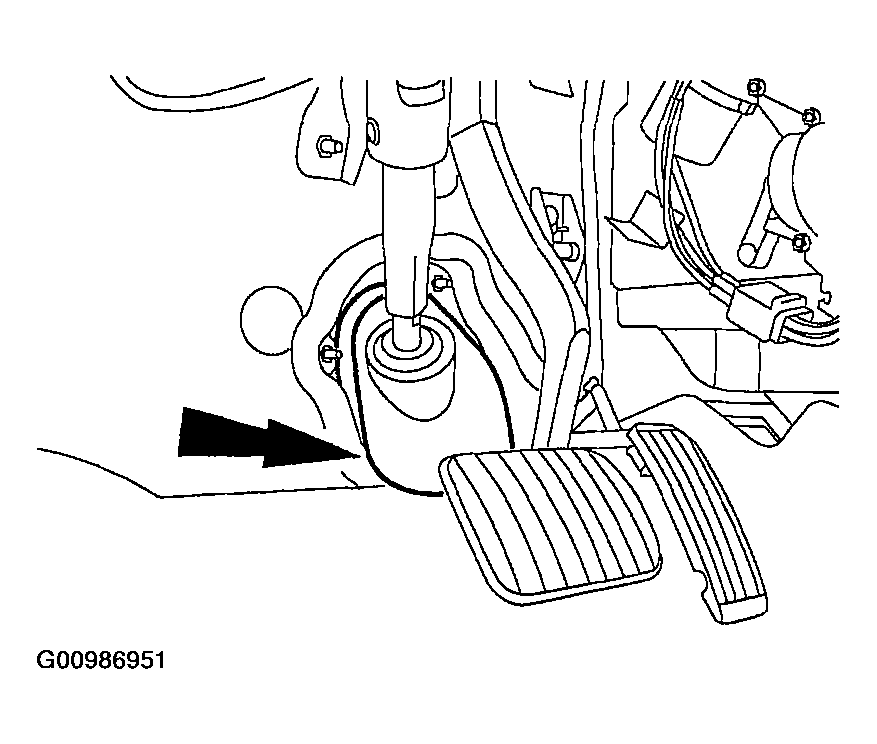

Fig 1: Positioning Boot Aside
G00986951Courtesy of MAZDA MOTORS CORP.
  1. Position the boot aside.

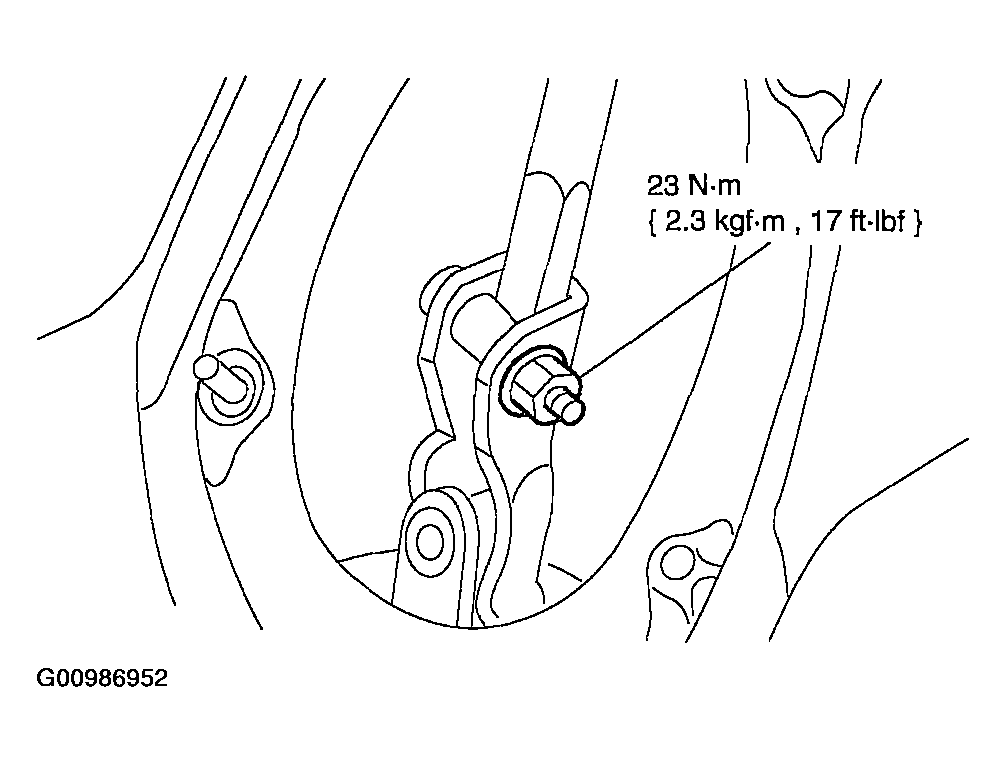

    Fig 2: Loosening Pinch Bolt/Nut & Disconnecting Steering Column Shaft From Flexible Coupling
    G00986952Courtesy of MAZDA MOTORS CORP.
  2. Loosen the pinch bolt/nut and disconnect the steering column shaft from the flexible coupling.

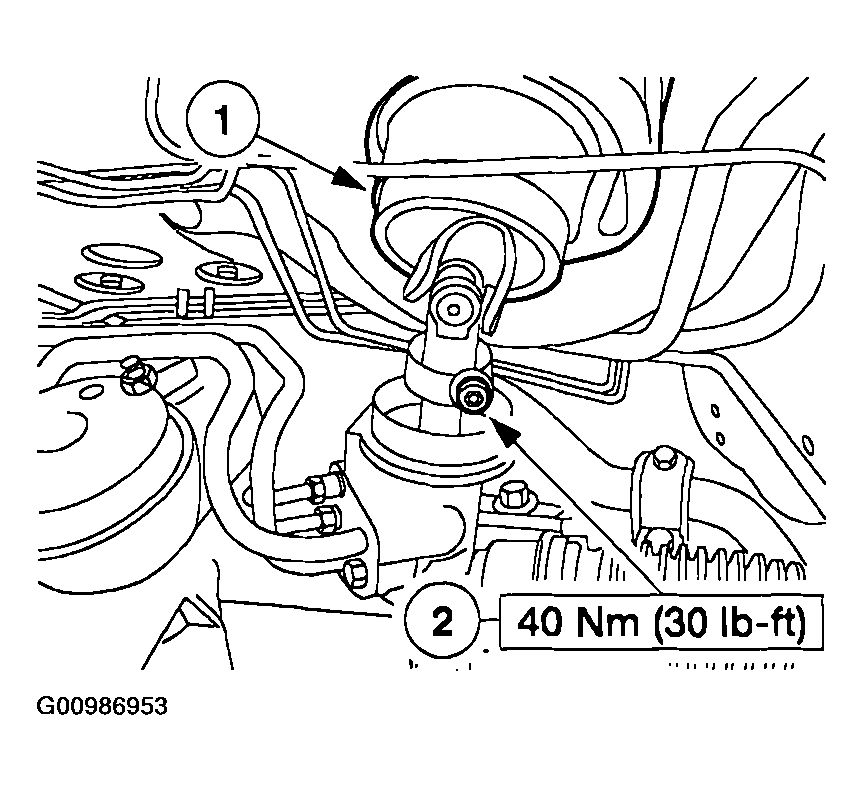

    Fig 3: Removing Steering Gear Coupling
    G00986953Courtesy of MAZDA MOTORS CORP.
  3. Remove the steering gear coupling.
    1. Position aside the rubber boot.
    2. Remove the pinch bolt.
  4. To install, reverse the removal procedure.
