Tie Rod End - Inner: Installation

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Using a suitable tool, hold the piston shaft while tightening the inner tie rod end.
NOTE:
- Make sure that the tie-rod boot is not twisted or dimpled after installing onto the tie-rod end and the steering gear.

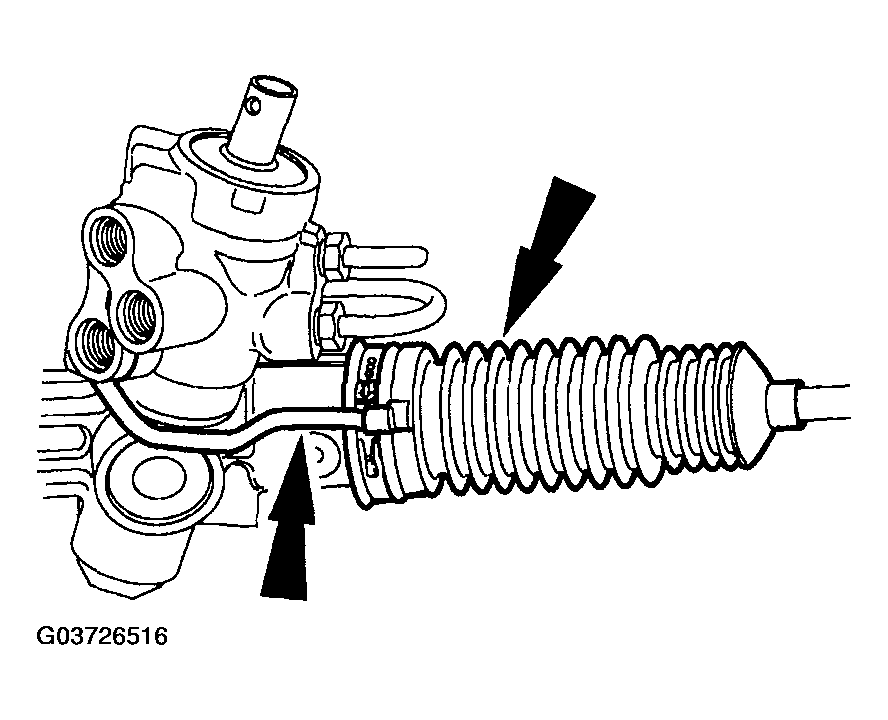

Fig 1: Positioning Tie-Rod Boot To Steering Gear While Inserting Air Tube Into Tie-Rod Boot

Courtesy of MAZDA MOTORS CORP.

Position the tie-rod boot to the steering gear while inserting the air tube into the tie-rod boot.
Install the steering gear. See STEERING GEAR .
