Removal and Installation

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

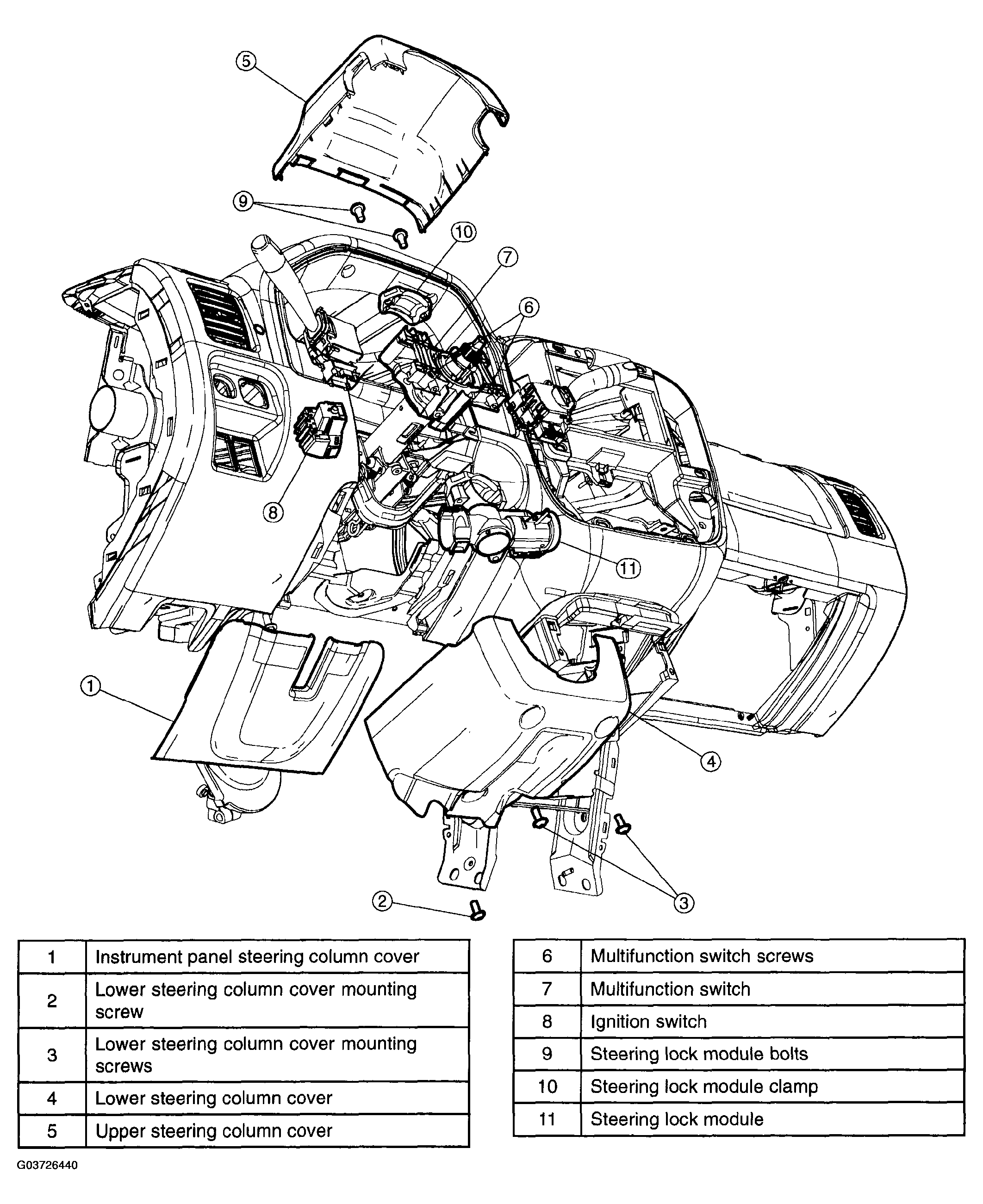

Fig 1: Identifying Ignition Switch Lock Cylinder

Courtesy of MAZDA MOTORS CORP.

Disconnect the battery ground cable. See BATTERY DISCONNECT .
Turn the ignition key to the ON position.

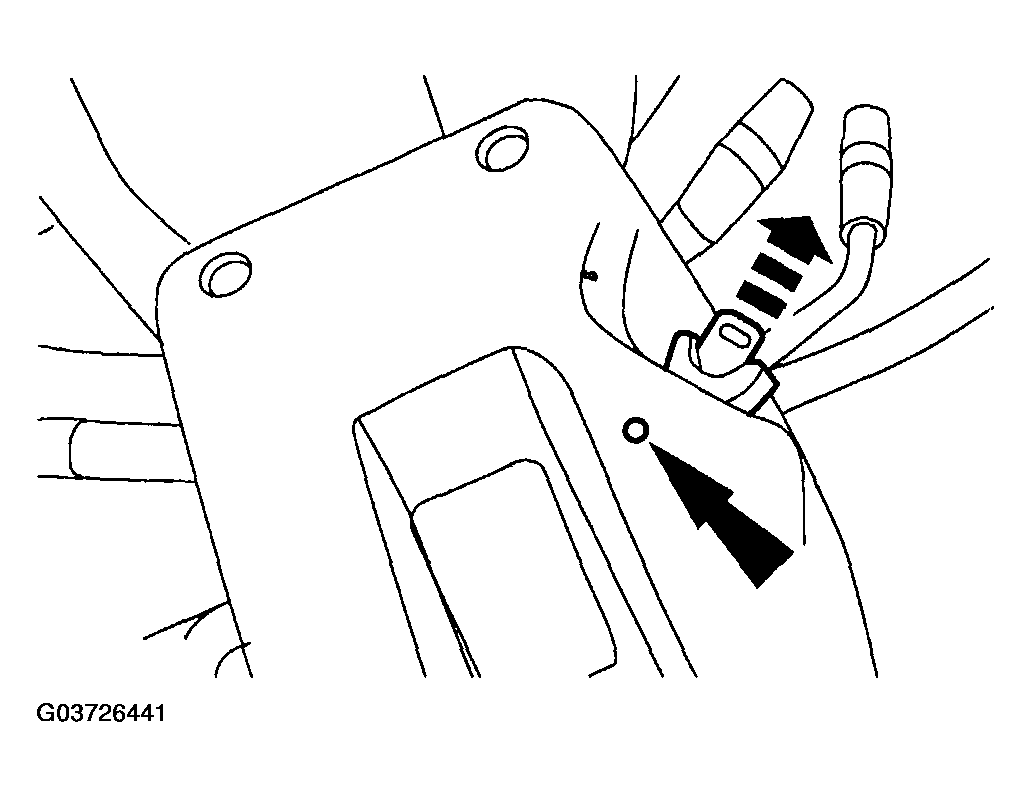

Fig 2: Pressing Ignition Lock Cylinder Release Button And Pulling Ignition Lock Cylinder Out

Courtesy of MAZDA MOTORS CORP.

Using a small tool, press the ignition lock cylinder release button and pull the ignition lock cylinder out.
To install, reverse the removal procedure.
