Driveshaft Indexing

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If indexing the driveshaft does not eliminate the vibration, balance the driveshaft. See DRIVESHAFT RUNOUT AND BALANCE .

Raise and support the vehicle.

CAUTION:

Do not reuse the CV joint bolts and washers. Install new bolts and washers only or damage to the vehicle may occur.

Remove the six front driveshaft to power take off bolts and washers.
- Discard the bolts and washers.

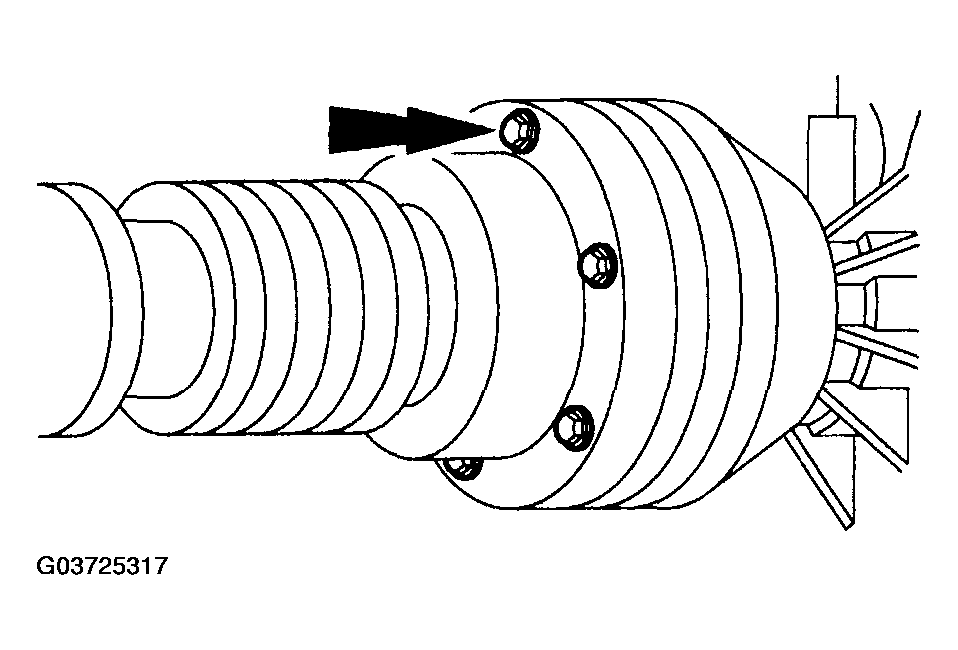

  Fig 1: Removing Front Driveshaft To Power Take Off Bolts And Washers
  Courtesy of MAZDA MOTORS CORP.
Rotate the flange 60 degrees.

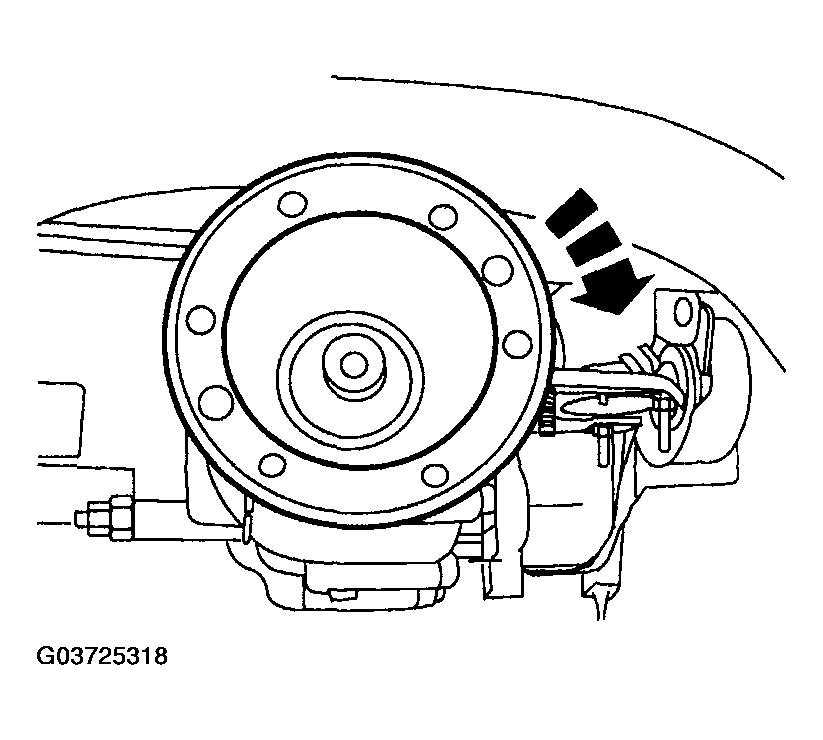

Fig 2: Rotating Flange 60 Degrees
Courtesy of MAZDA MOTORS CORP.
Connect the front driveshaft and install the new bolts and washers.

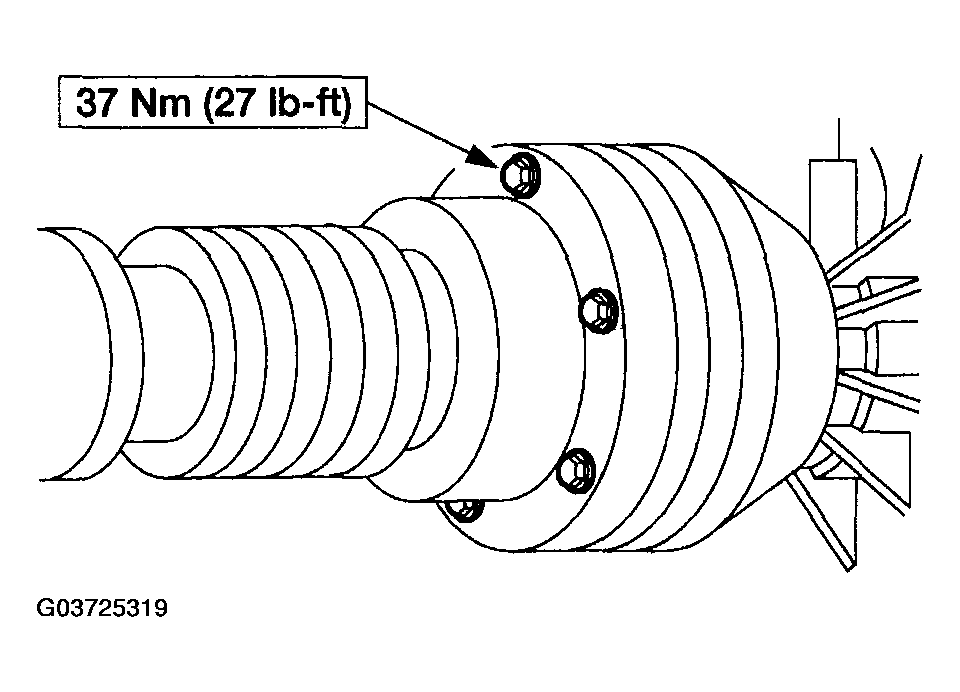

Fig 3: Installing Bolts And Washers
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Do not reuse the bolts and straps for the pinion yoke. Install new bolts and straps or damage to the vehicle may occur.

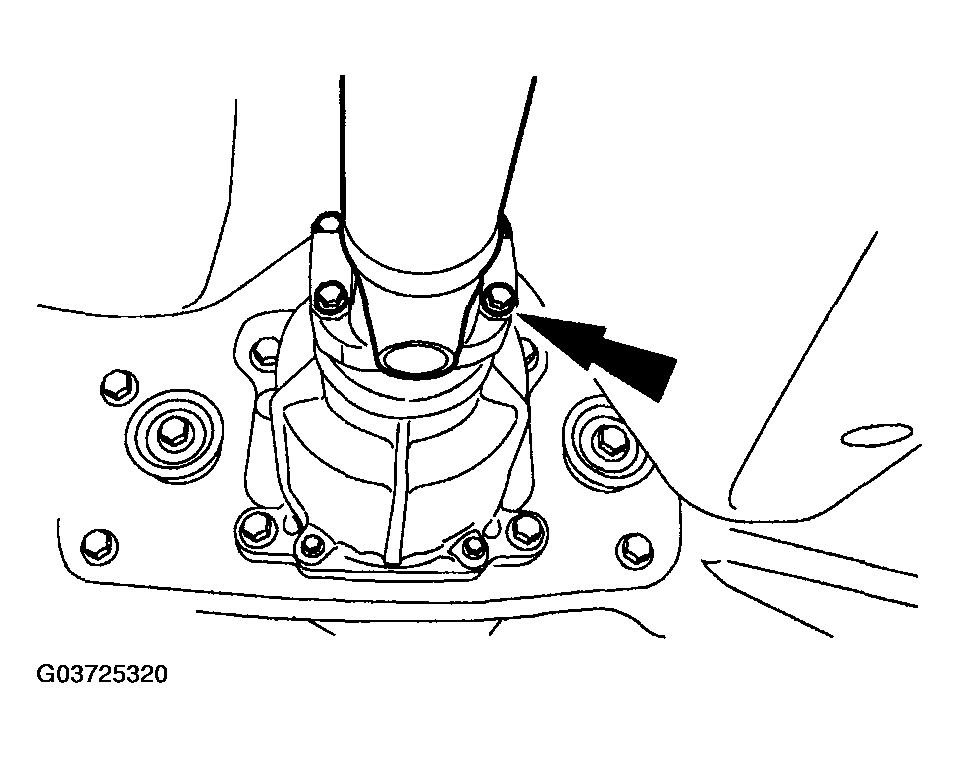

Fig 4: Identifying Bolt (1 Of 2)

G03725320

Courtesy of MAZDA MOTORS CORP.

Disconnect the rear driveshaft universal joint.
- Discard the bolts and straps.
Rotate the rear pinion yoke 180 degrees.
Connect the rear driveshaft and install new bolts and straps.

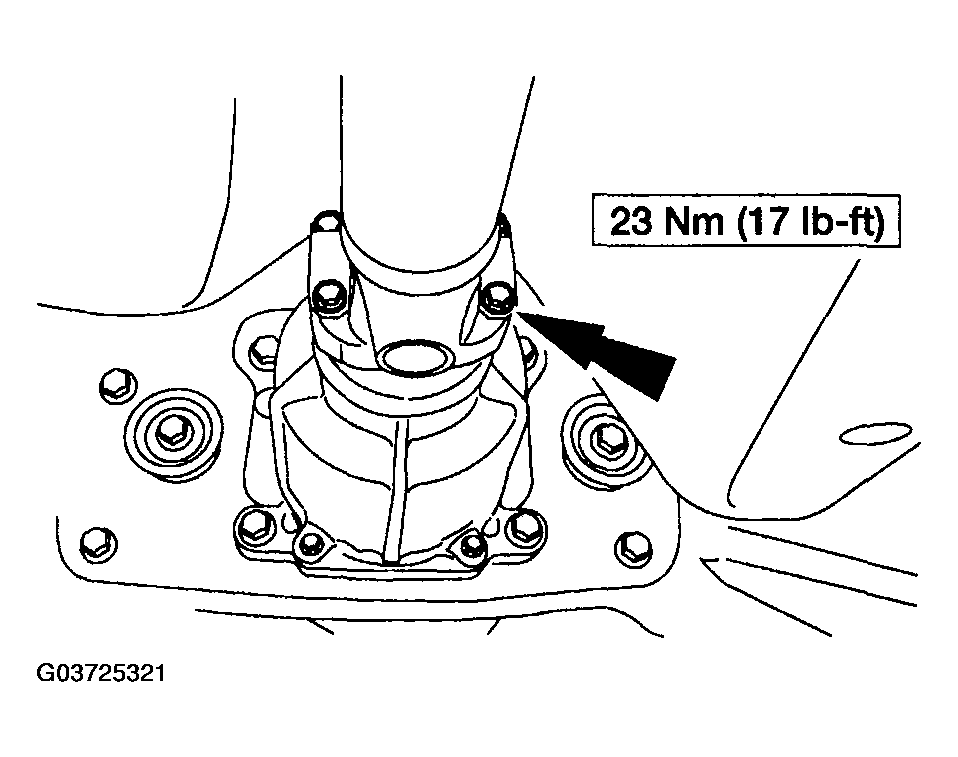

Fig 5: Identifying Bolts (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Lower the vehicle and test drive.
Repeat the procedure if necessary.
