Removal and Installation

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear halfshafts. See HALFSHAFT -- REAR DISASSEMBLY AND ASSEMBLY .
Disconnect the rotary blade coupler electrical connector.
Remove the differential housing-to-front insulator bracket bolts.

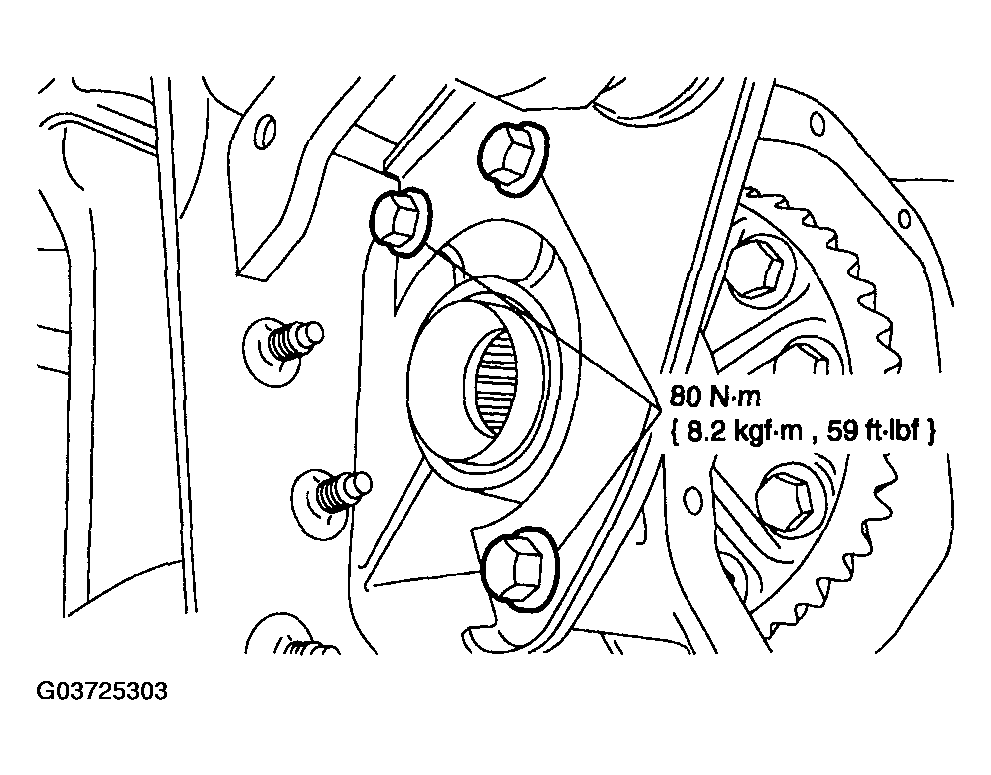

Fig 1: Removing Differential Housing-To-Front Insulator Bracket Bolts
Courtesy of MAZDA MOTORS CORP.
Loosen the front insulator bracket-to-subframe bolts, and rotate the bracket aside.

Fig 2: Loosening Front Insulator Bracket-To-Subframe Bolts
Courtesy of MAZDA MOTORS CORP.
Position a suitable transaxle hydraulic jack to the axle housing. Securely strap the jack to the housing.
NOTE:
- This step requires an assistant.
Remove the differential housing-to-side insulator bracket bolts and the axle assembly.

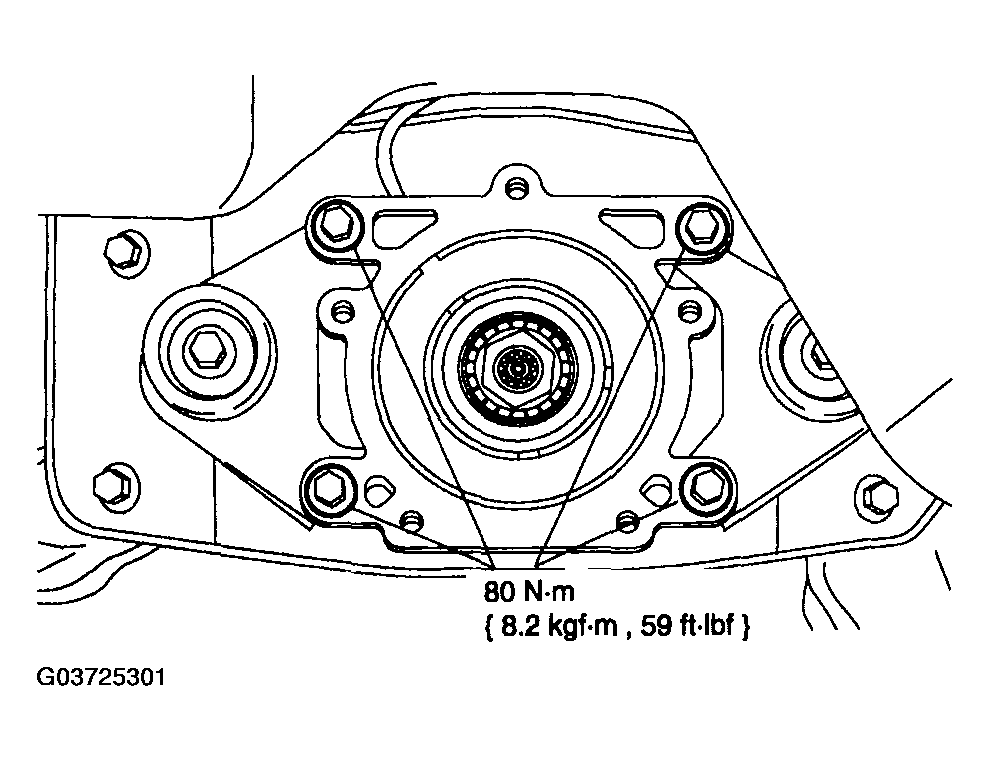

Fig 3: Removing Differential Housing-To-Side Insulator Bracket Bolts
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
- Fill the axle with the specified quantity of the specified lubricant.
