Axle Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

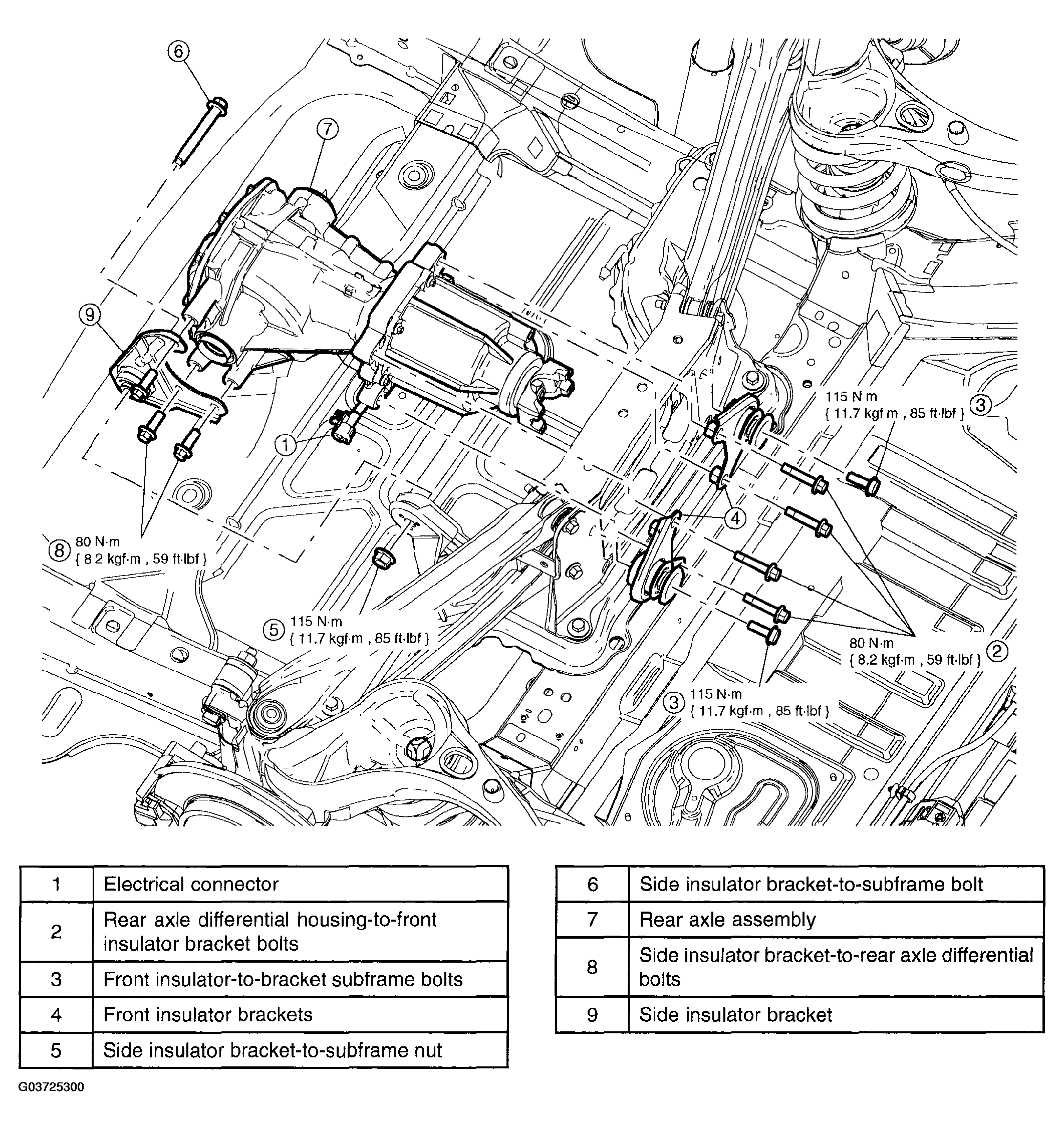

Fig 1: Removing/Installing Differentials Axle Assembly
G03725300Courtesy of MAZDA MOTORS CORP.
