Pinpoint Test 1: The Engine Does Not Crank Or The Relay Clicks

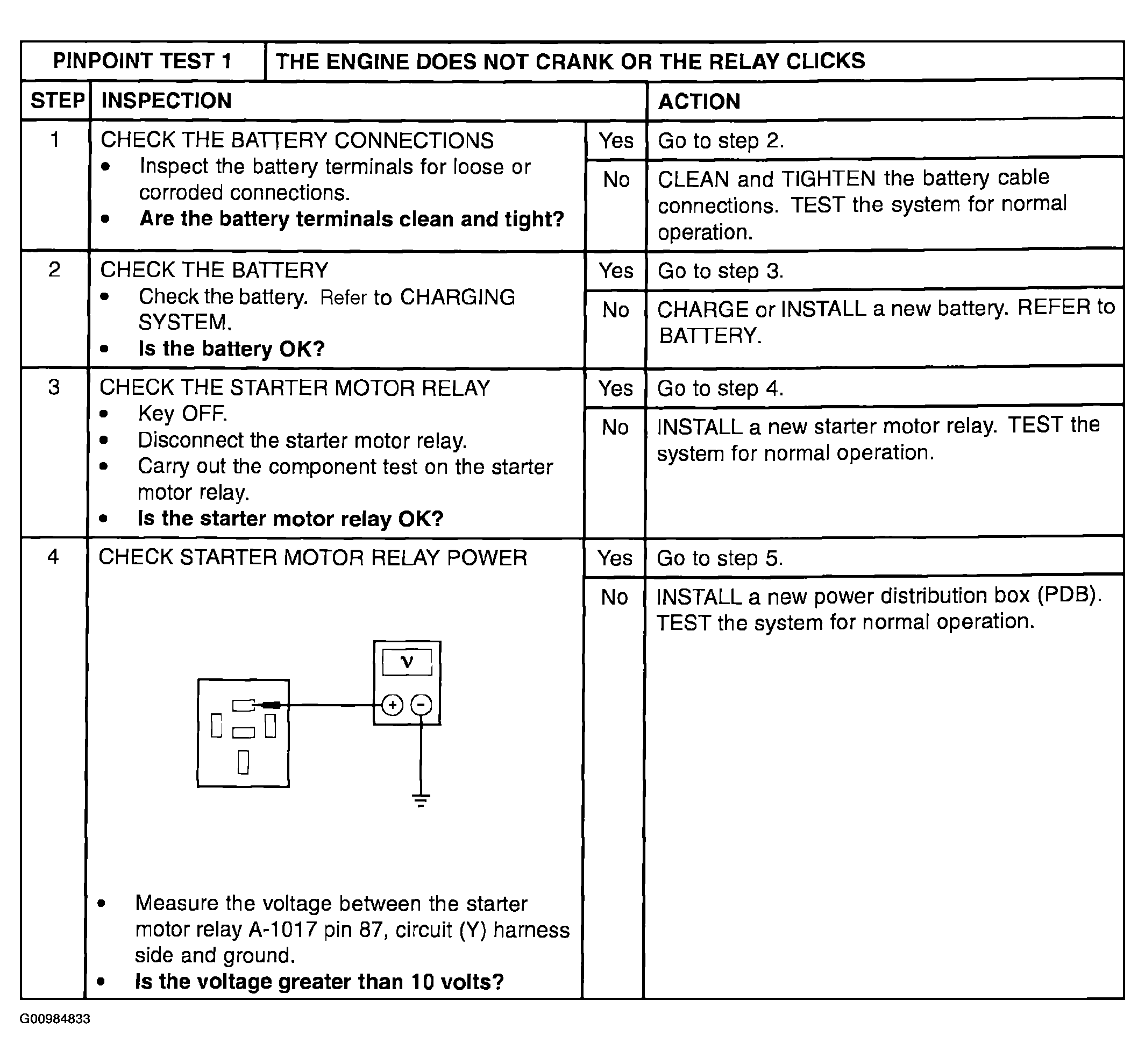

Fig 1: Pinpoint Test 1: The Engine Does Not Crank Or The Relay Clicks: Inspection (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

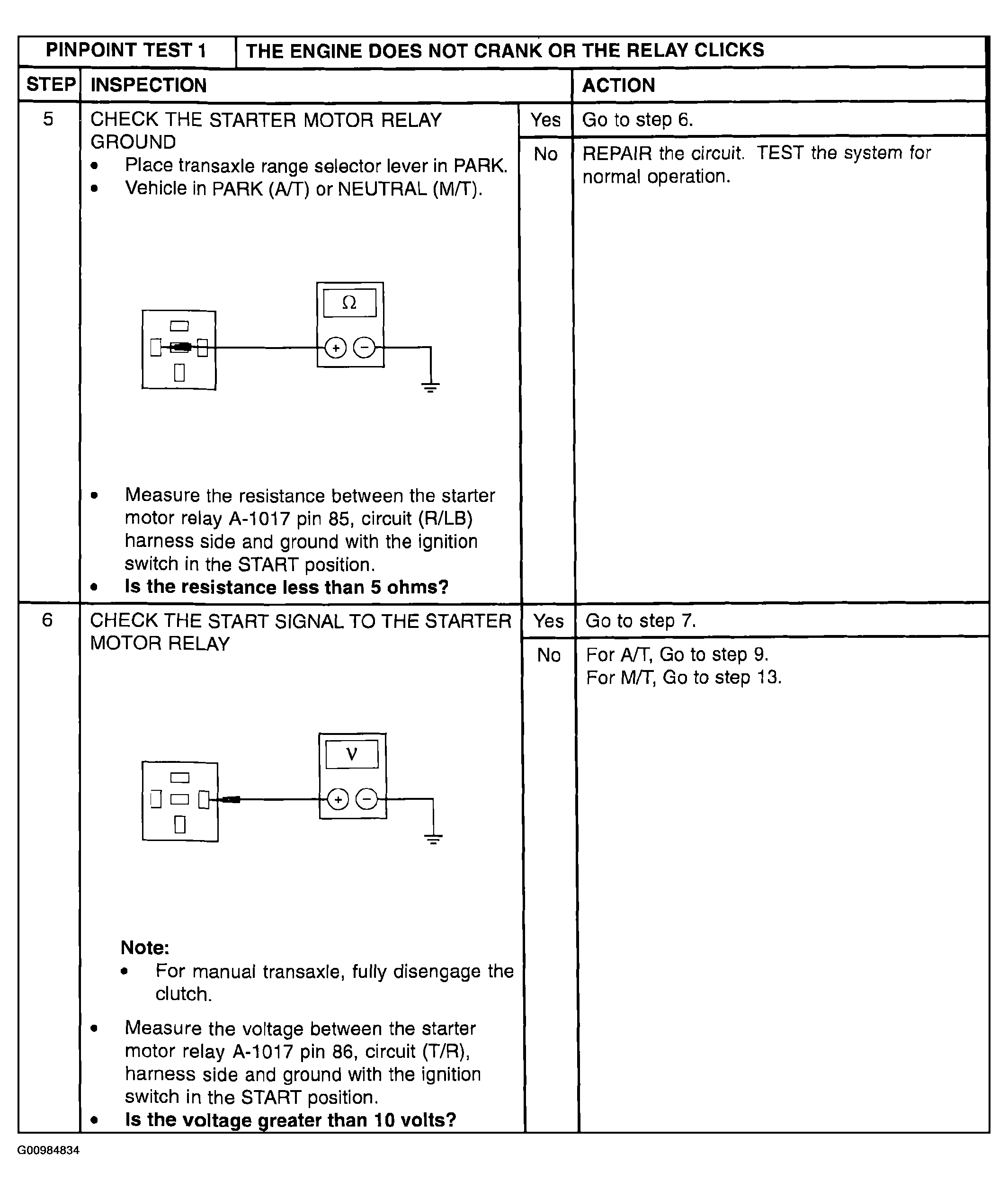

Fig 2: Pinpoint Test 1: The Engine Does Not Crank Or The Relay Clicks: Inspection (Steps )

Courtesy of MAZDA MOTORS CORP.

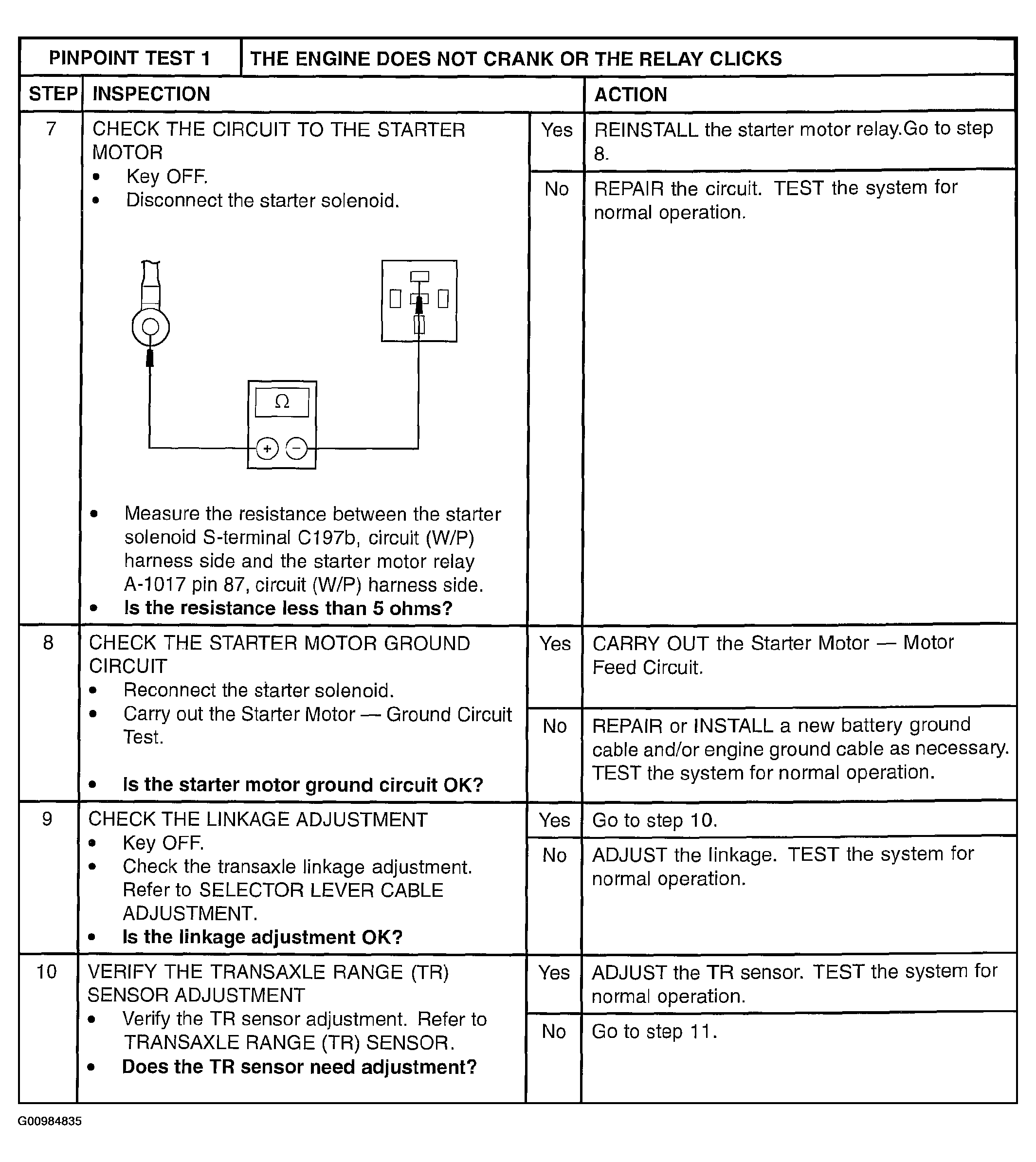

Fig 3: Pinpoint Test 1: The Engine Does Not Crank Or The Relay Clicks: Inspection (Steps 7-10)

Courtesy of MAZDA MOTORS CORP.

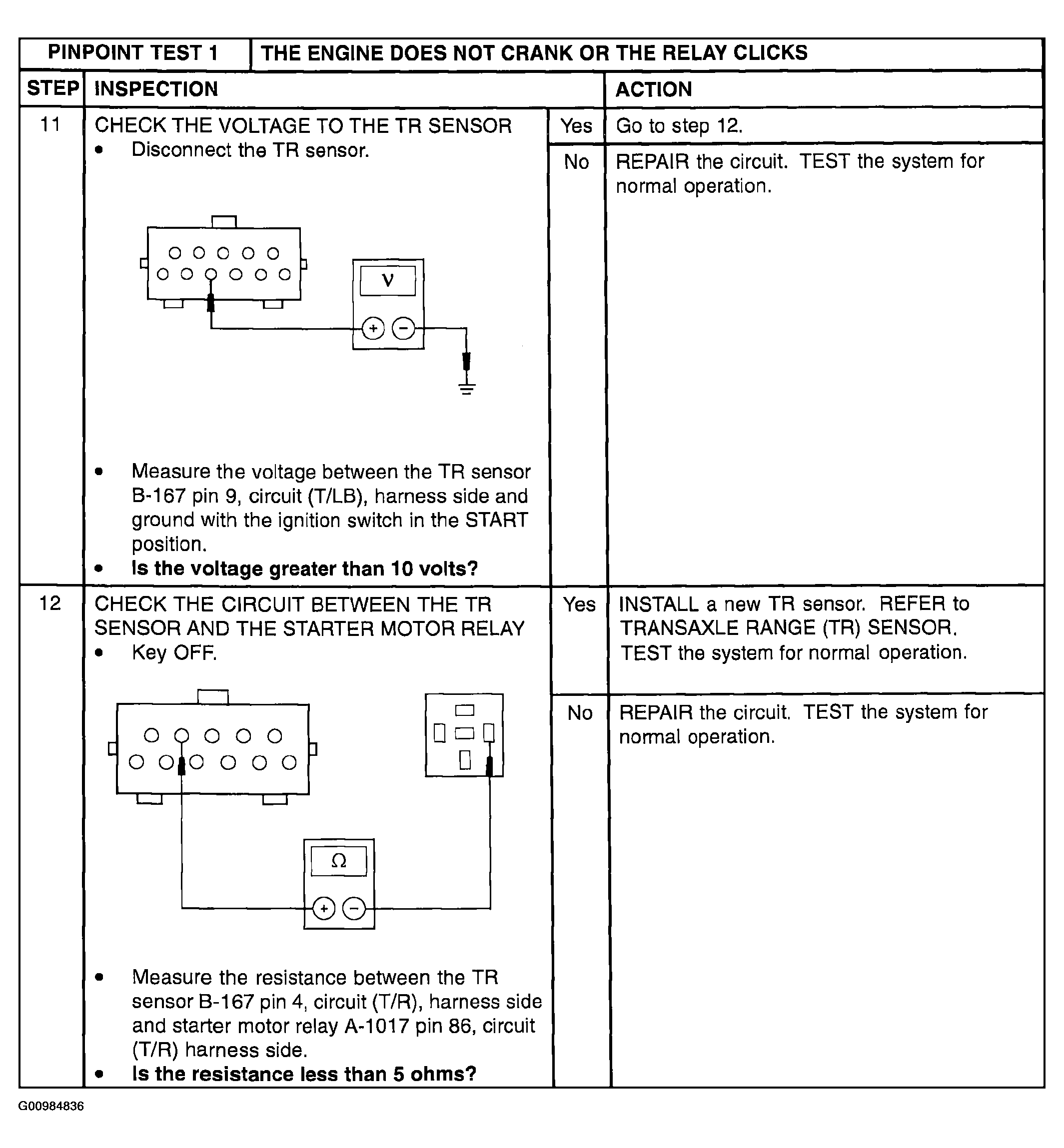

Fig 4: Pinpoint Test 1: The Engine Does Not Crank Or The Relay Clicks: Inspection (Steps 11-12)

Courtesy of MAZDA MOTORS CORP.

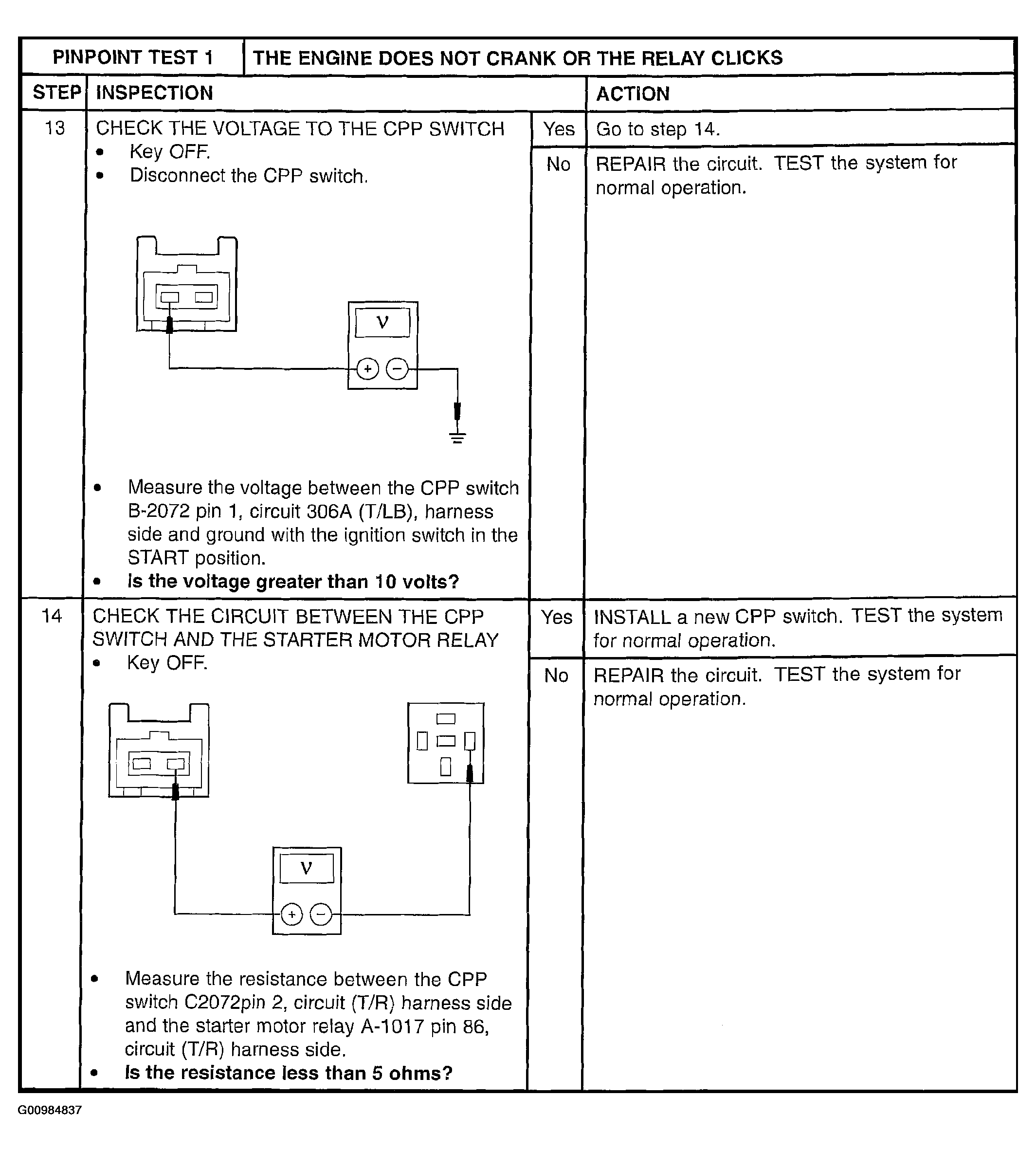

Fig 5: Pinpoint Test 1: The Engine Does Not Crank Or The Relay Clicks: Inspection (Steps 13-14)

Courtesy of MAZDA MOTORS CORP.
