Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Symptom Troubleshooting (Engine/Fuel Control)
>>
Symptom Troubleshooting Chart - Fueling
>>
Pinpoint Test 3: Unable To Refuel (ORVR)
Pinpoint Test 3: Unable To Refuel (ORVR)

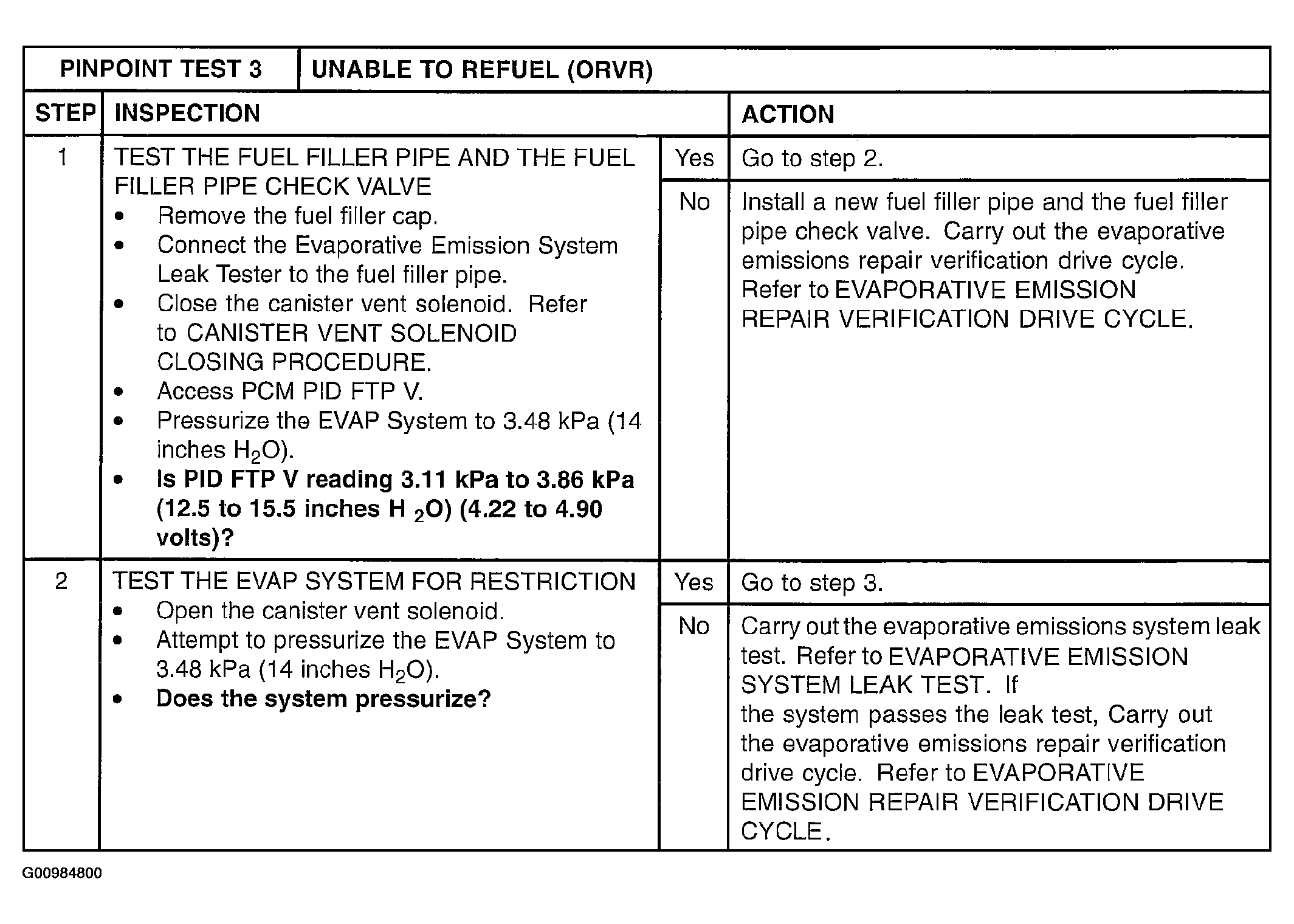

Fig 1: Pinpoint Test 3: Unable To Refuel (ORVR): Inspection (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

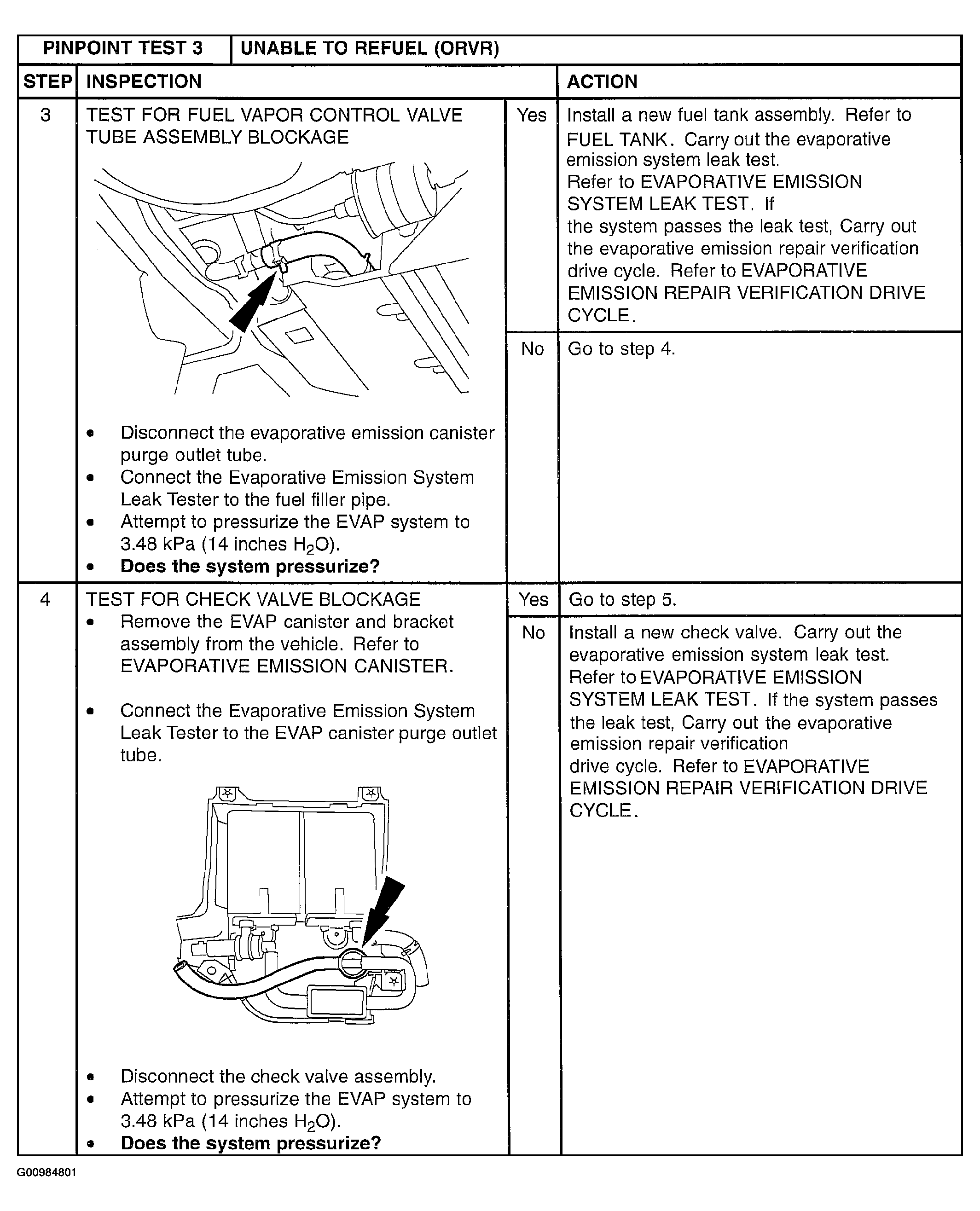

Fig 2: Pinpoint Test 3: Unable To Refuel (ORVR): Inspection (Steps 3-4)
Courtesy of MAZDA MOTORS CORP.

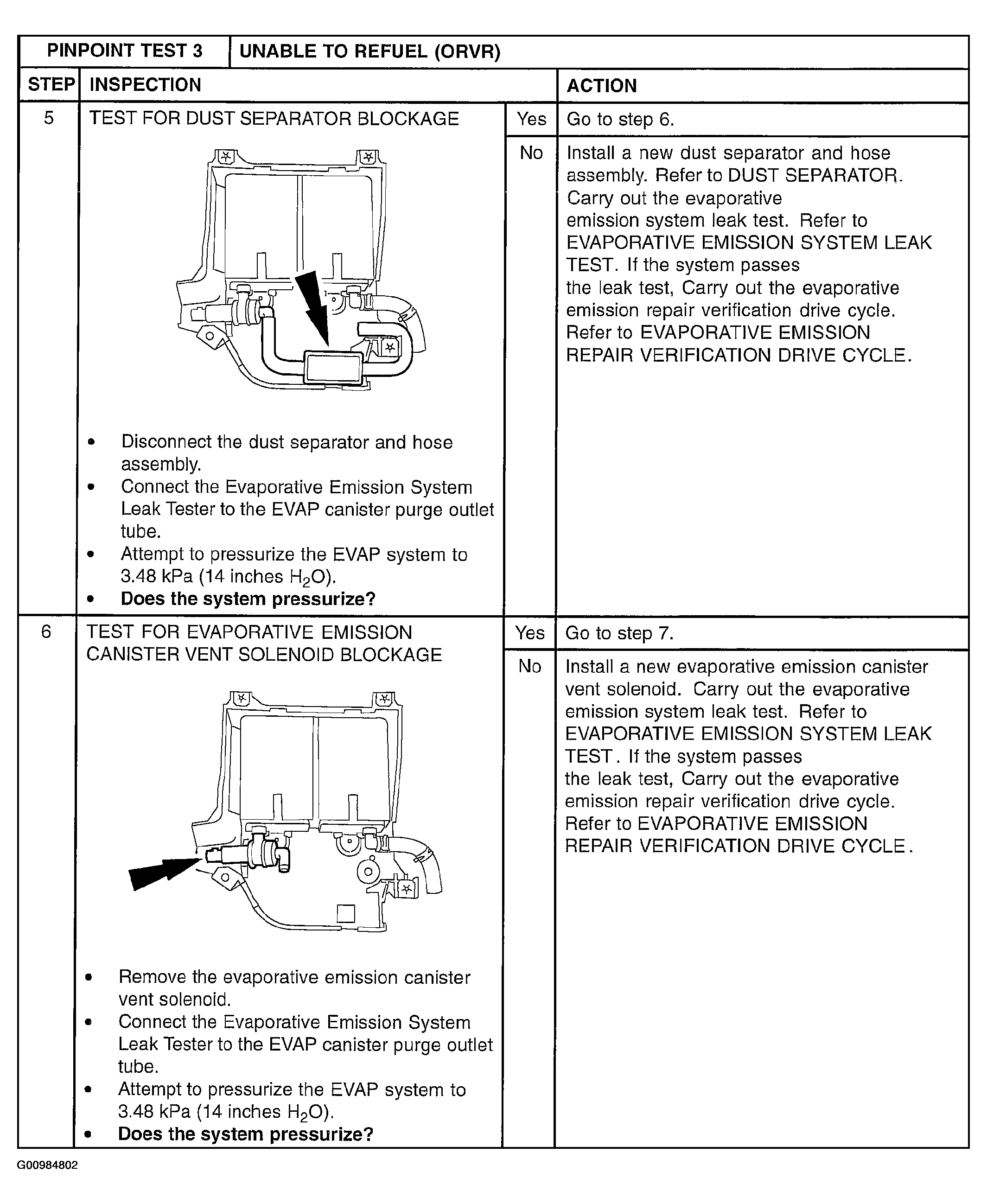

Fig 3: Pinpoint Test 3: Unable To Refuel (ORVR): Inspection (Steps 5-6)
Courtesy of MAZDA MOTORS CORP.

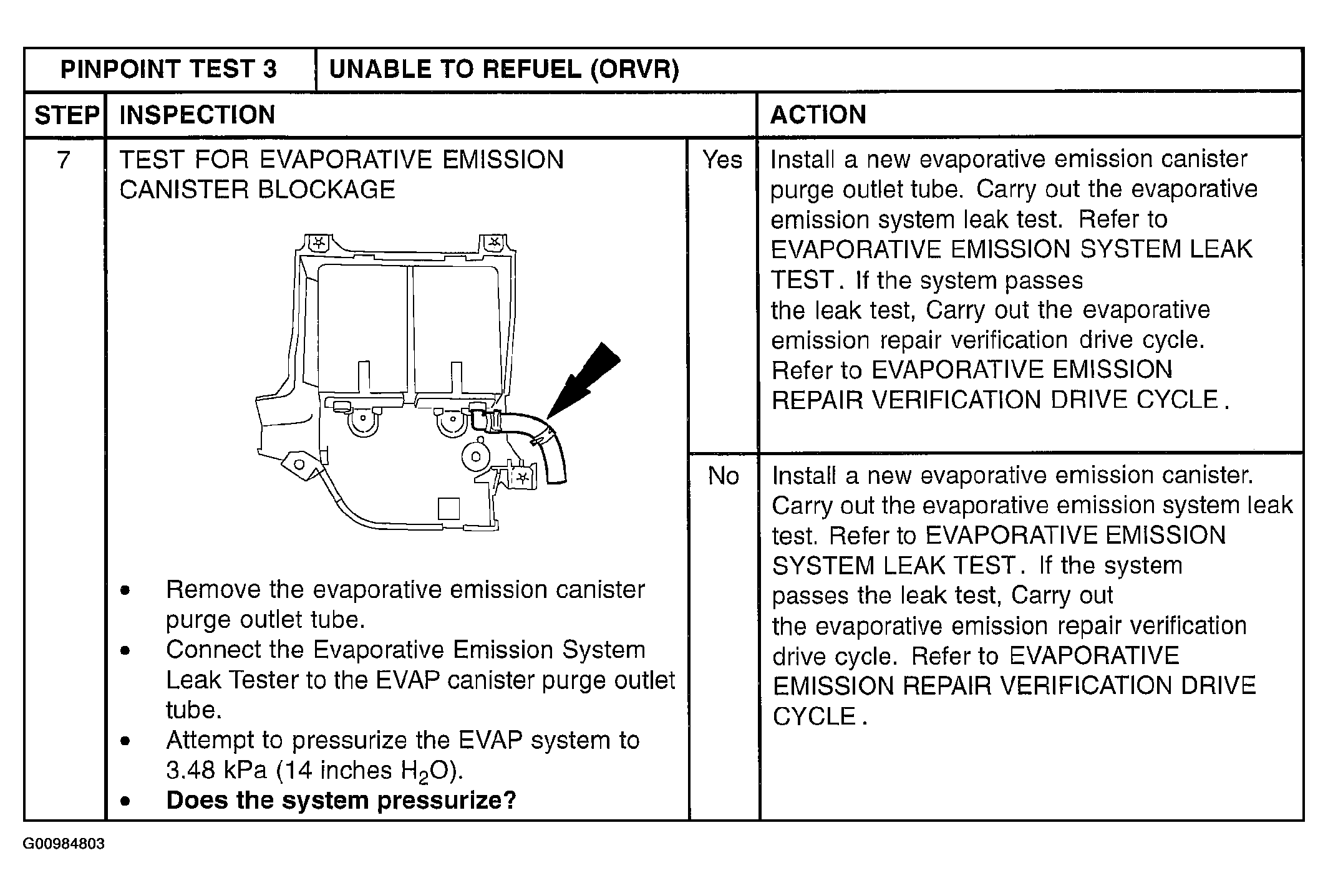

Fig 4: Pinpoint Test 3: Unable To Refuel (ORVR): Inspection (Step 7)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
