Pinpoint Test 2: Excessive Fuel Odor

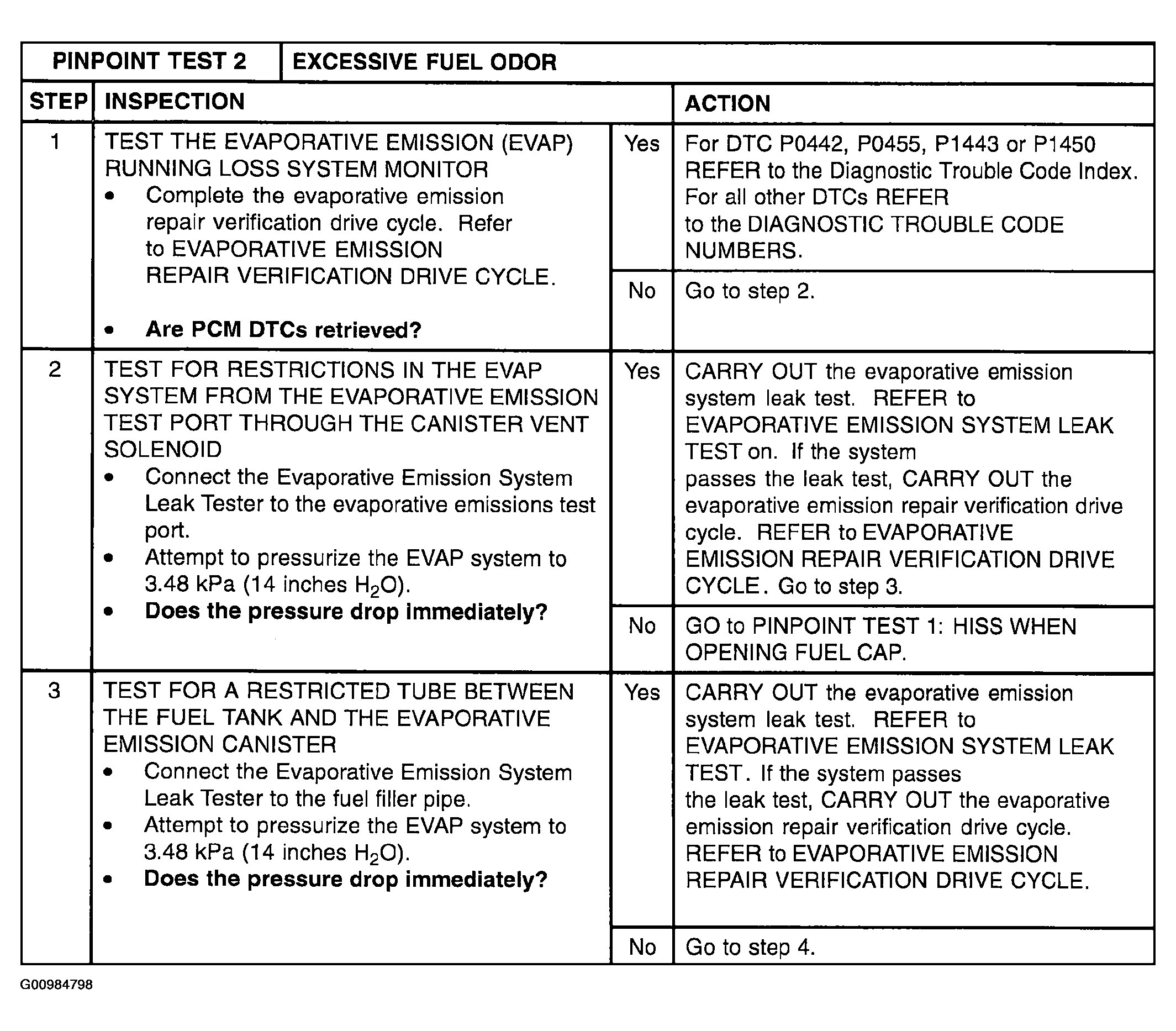

Fig 1: Pinpoint Test 2: Excessive Fuel Odor: Inspection (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

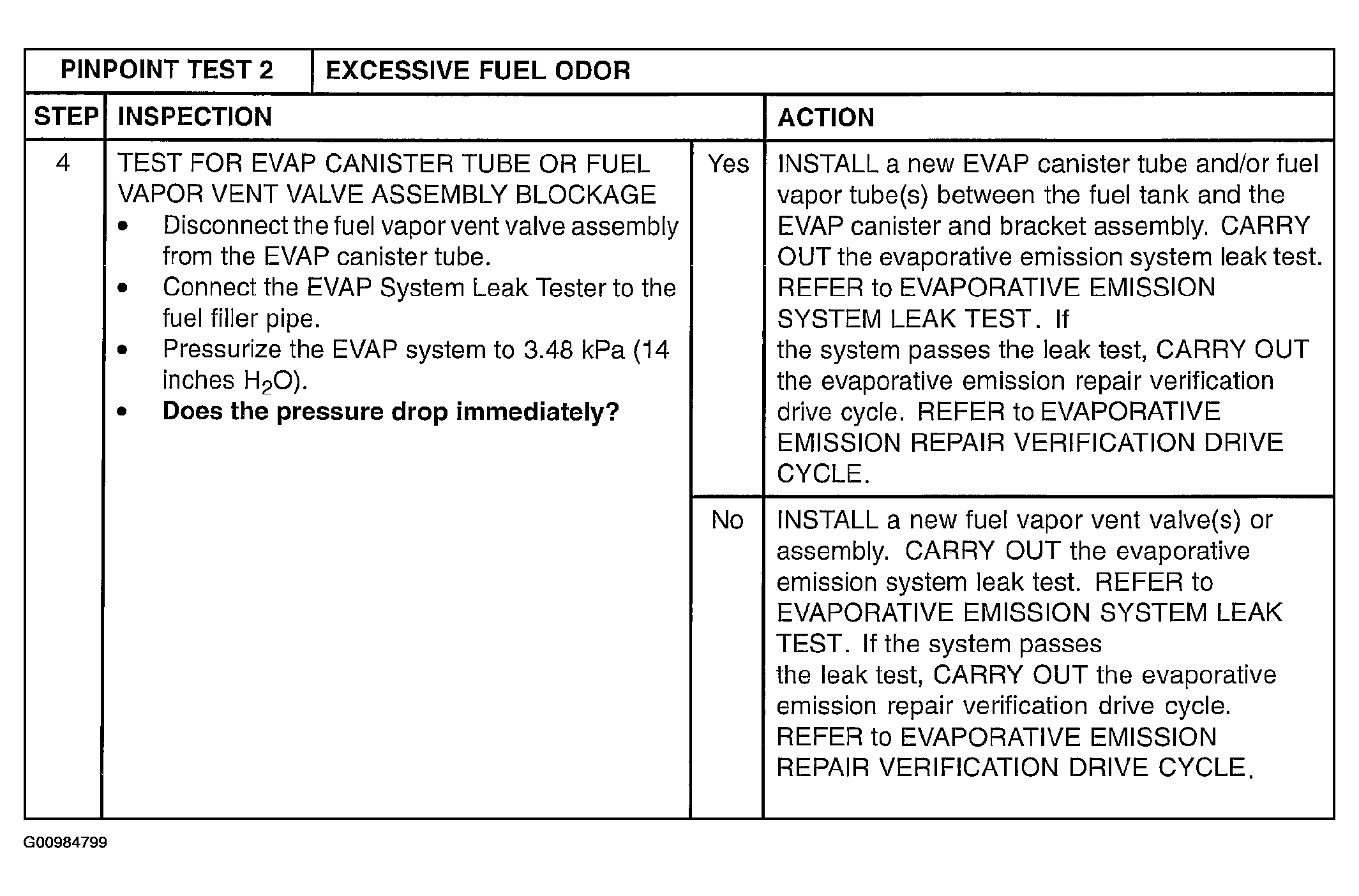

Fig 2: Pinpoint Test 2: Excessive Fuel Odor: Inspection (Step 4)

Courtesy of MAZDA MOTORS CORP.
