Pinpoint Test 1: Hiss When Opening Fuel Cap

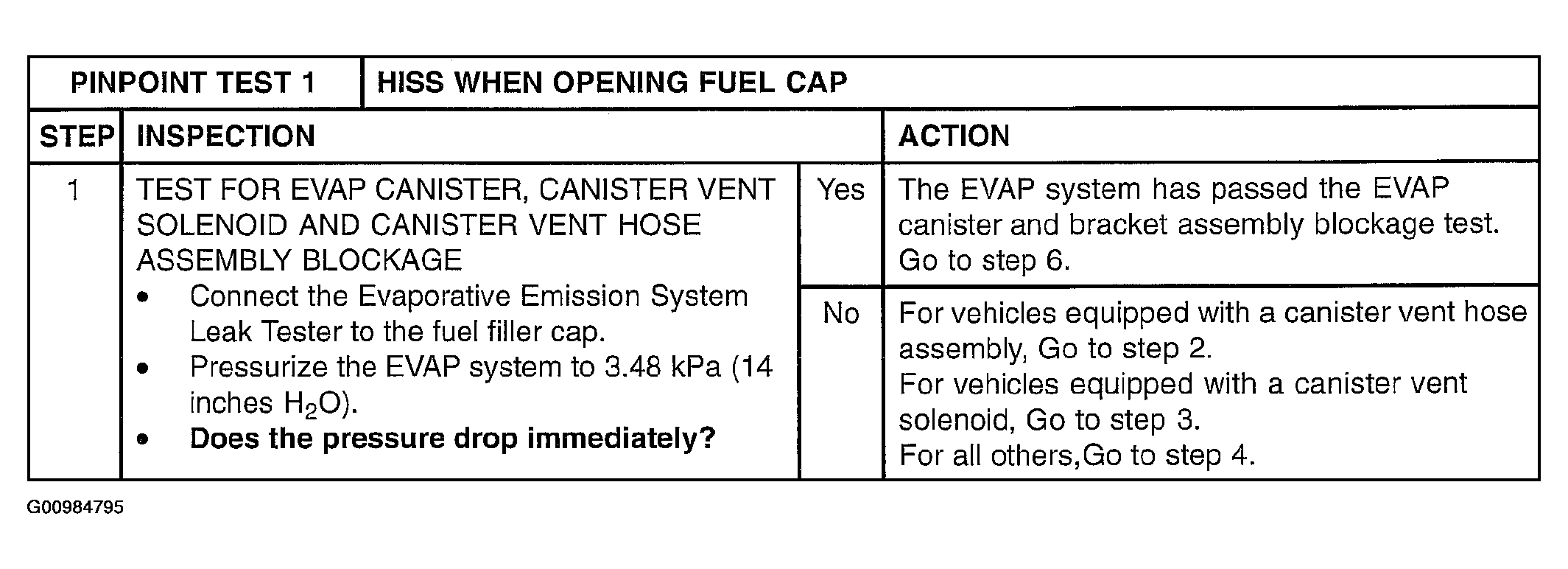

Fig 1: Pinpoint Test 1: Hiss When Opening Fuel Cap: Inspection (Step 1)

Courtesy of MAZDA MOTORS CORP.

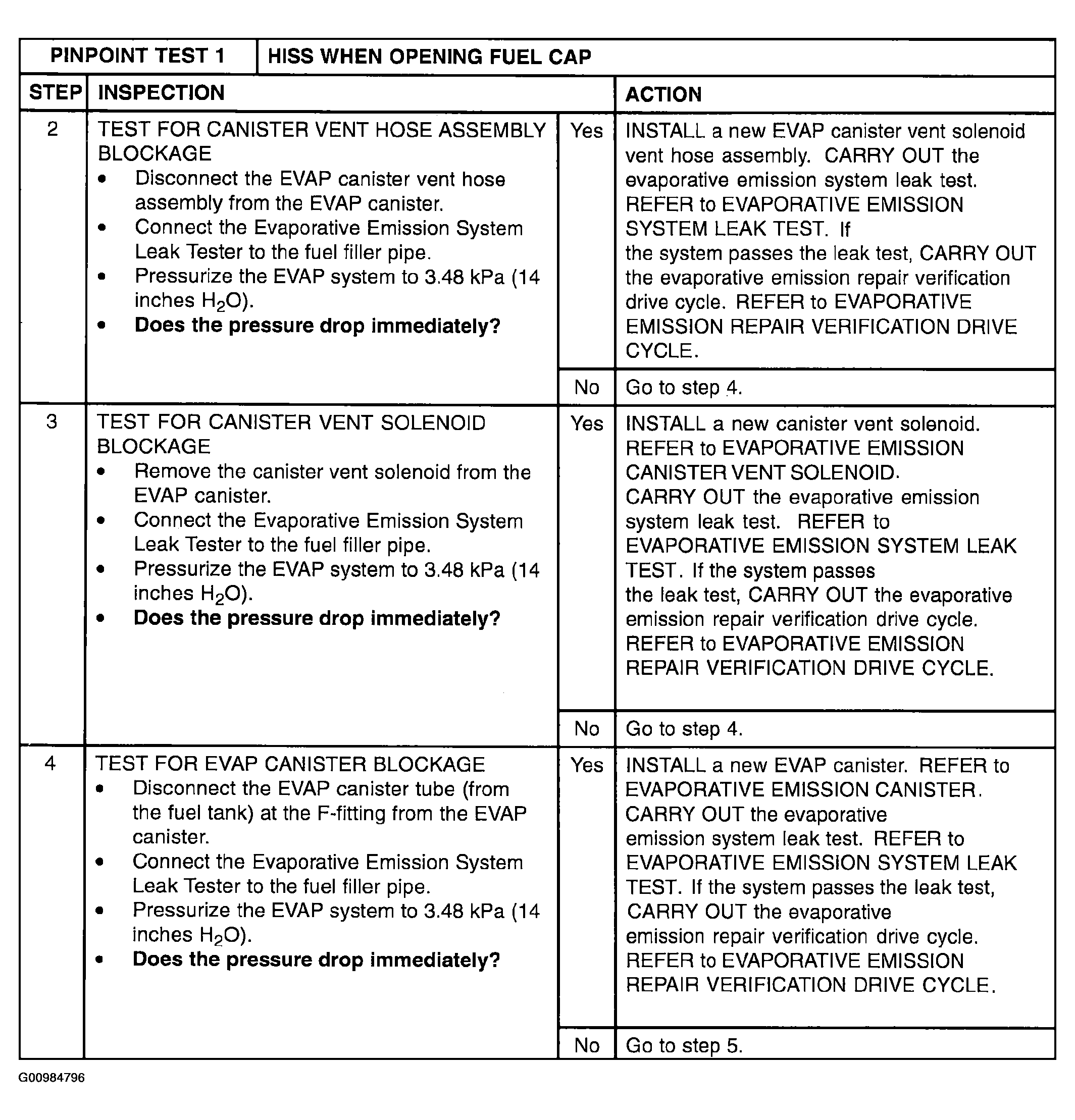

Fig 2: Pinpoint Test 1: Hiss When Opening Fuel Cap: Inspection (Steps 2-4)

Courtesy of MAZDA MOTORS CORP.

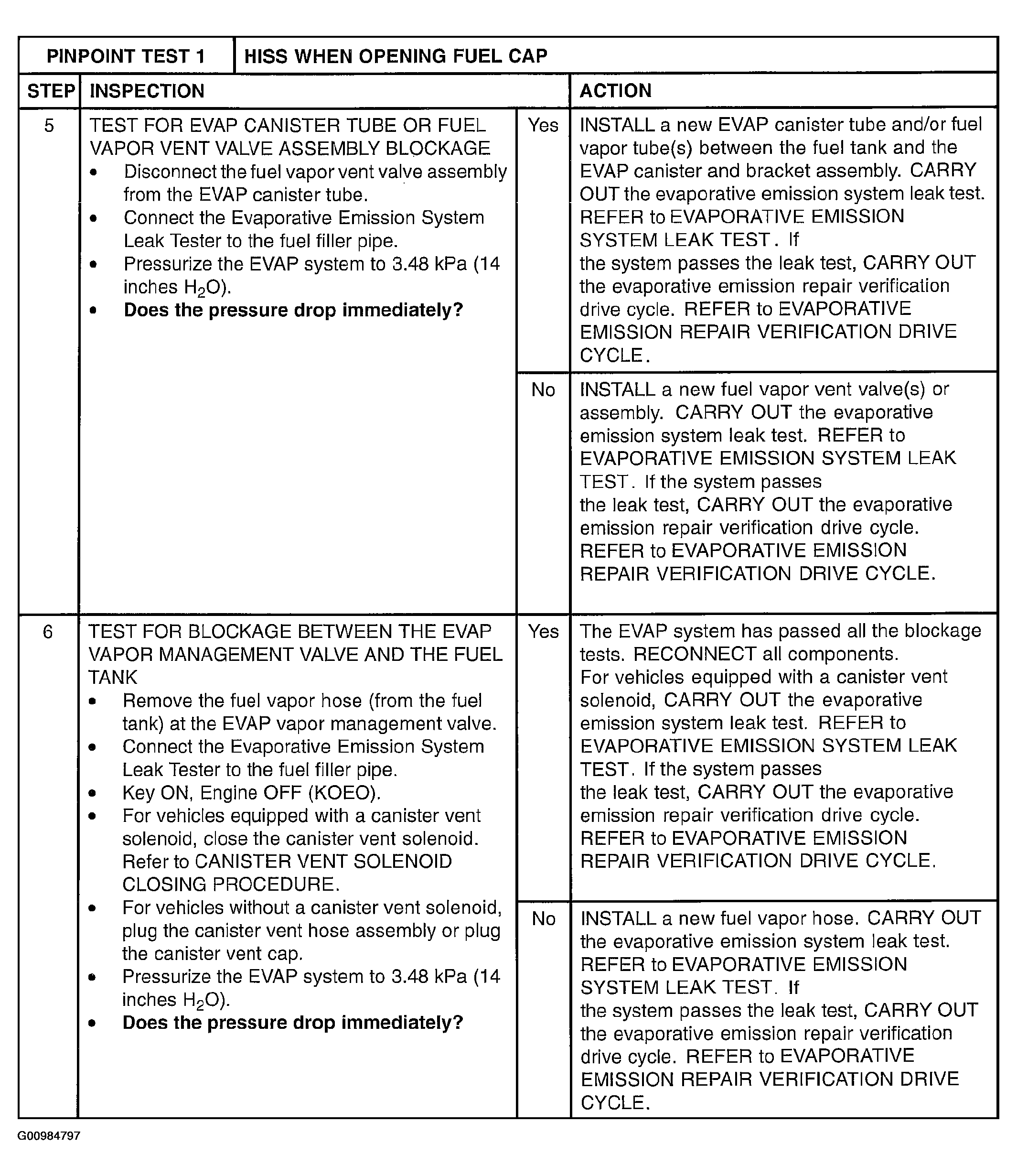

Fig 3: Pinpoint Test 1: Hiss When Opening Fuel Cap: Inspection (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.
