Pinpoint Test 1: The Speed Control Is Inoperative

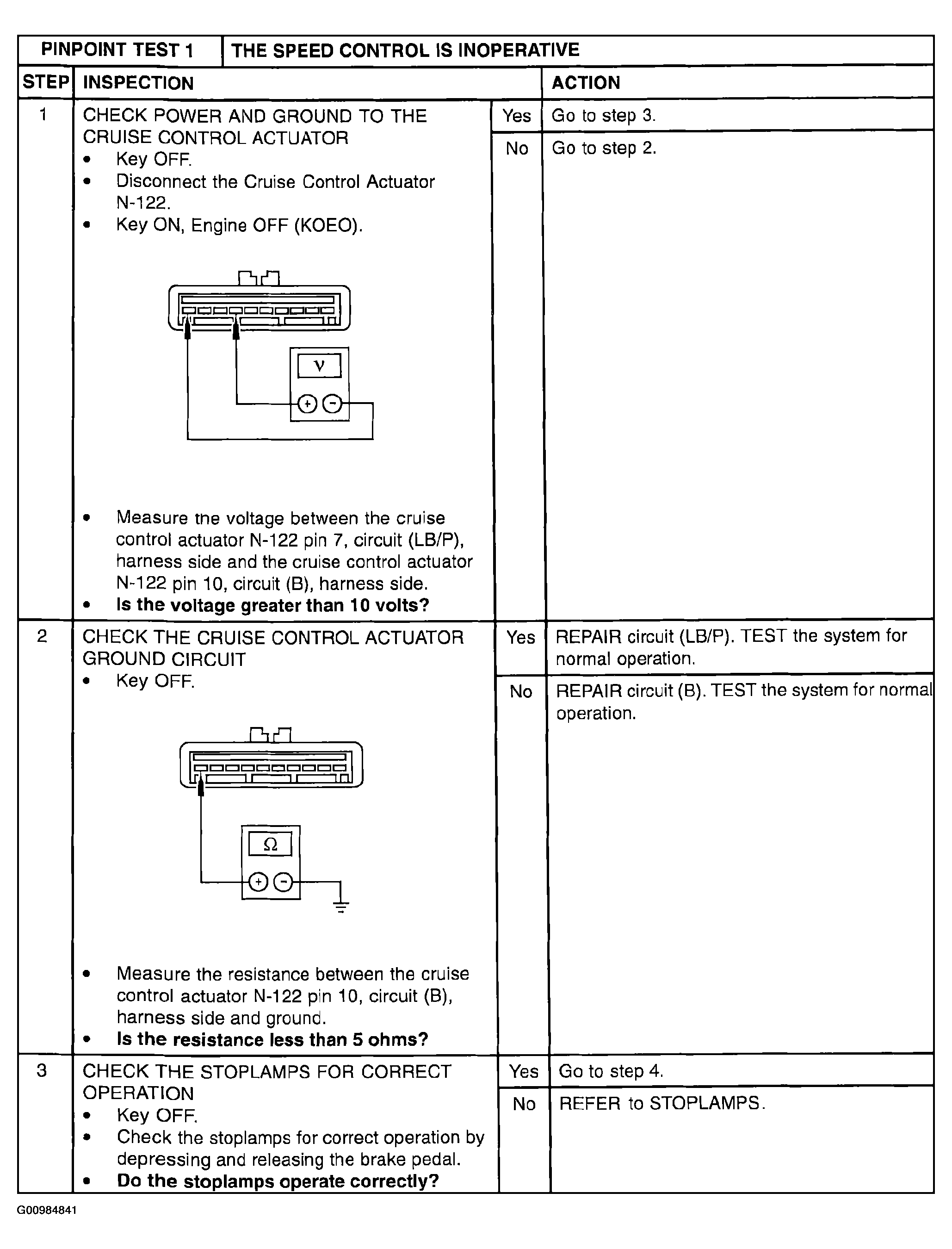

Fig 1: Pinpoint Test 1: The Speed Control Is Inoperative: Inspection (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

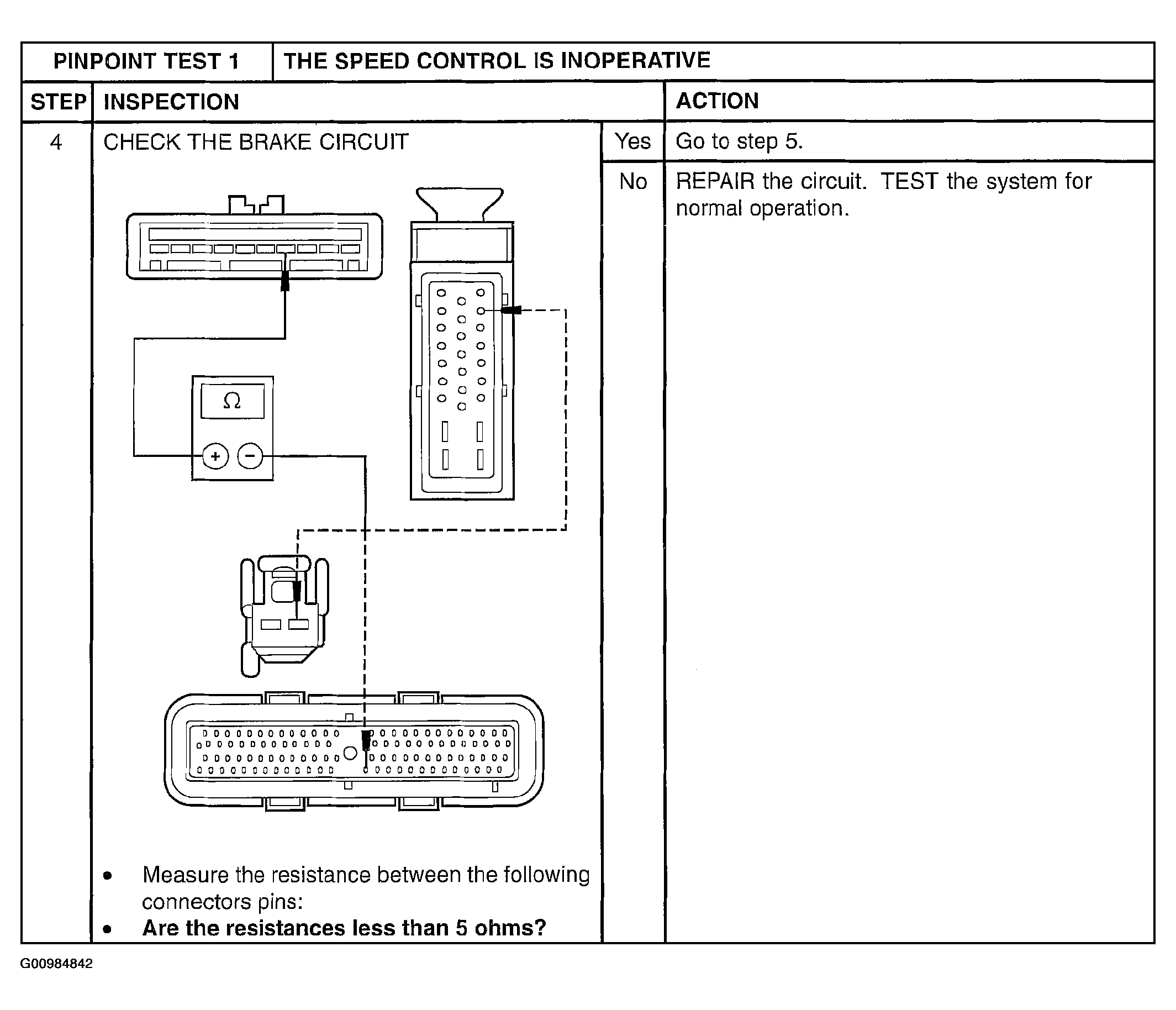

Fig 2: Pinpoint Test 1: The Speed Control Is Inoperative: Inspection (Step 4)

Courtesy of MAZDA MOTORS CORP.

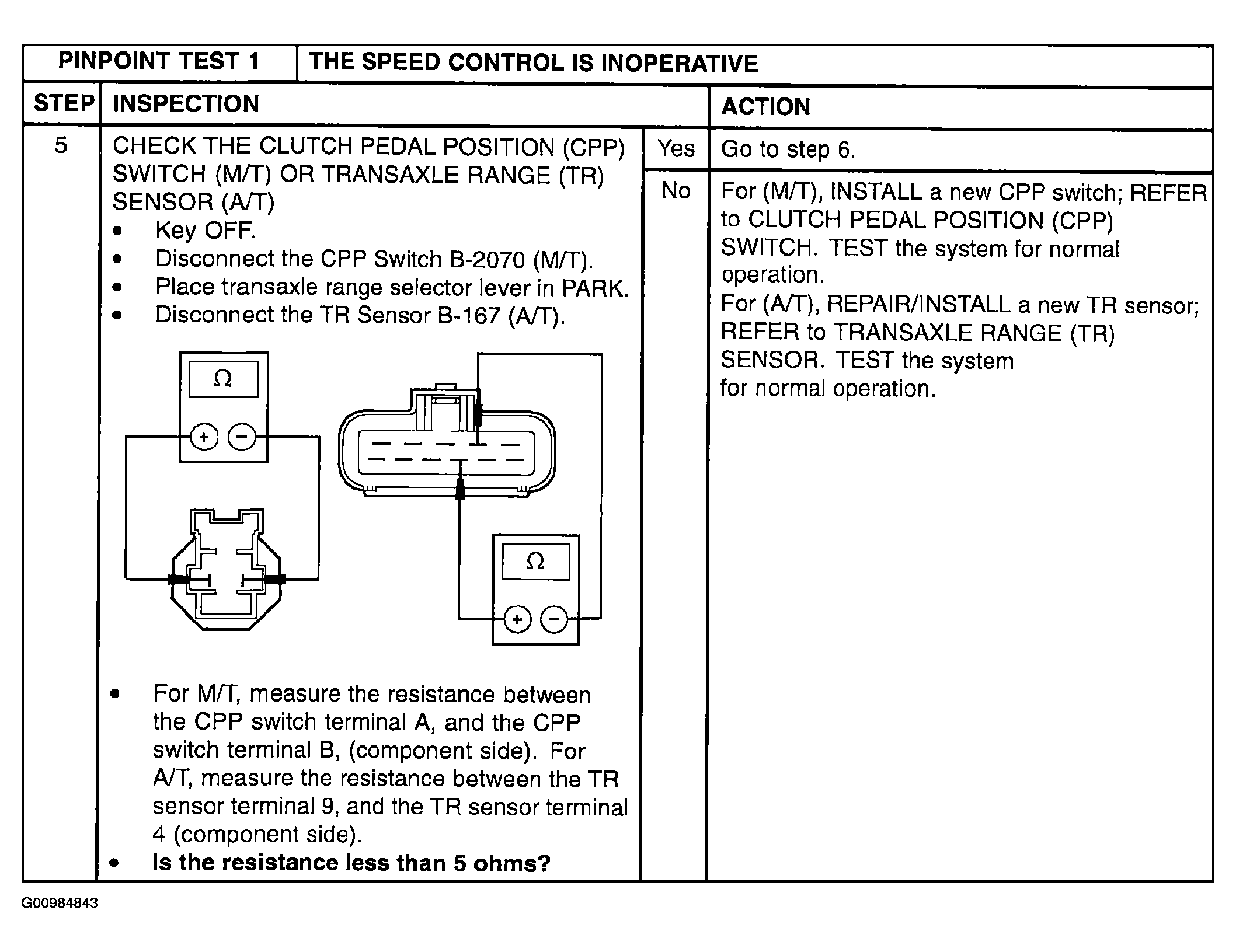

Fig 3: Pinpoint Test 1: The Speed Control Is Inoperative: Inspection (Step 5)

Courtesy of MAZDA MOTORS CORP.

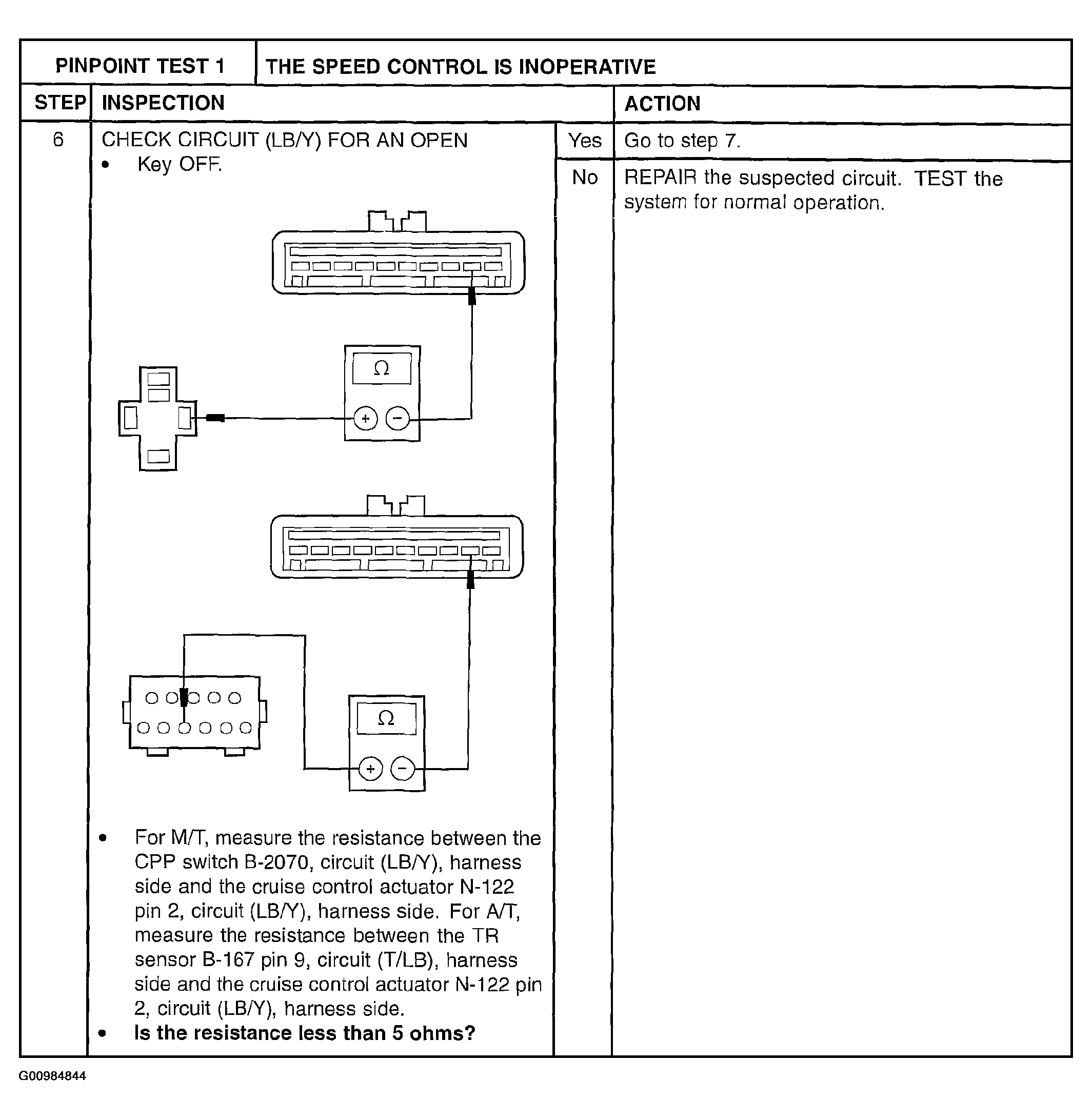

Fig 4: Pinpoint Test 1: The Speed Control Is Inoperative: Inspection (Step 6)

Courtesy of MAZDA MOTORS CORP.

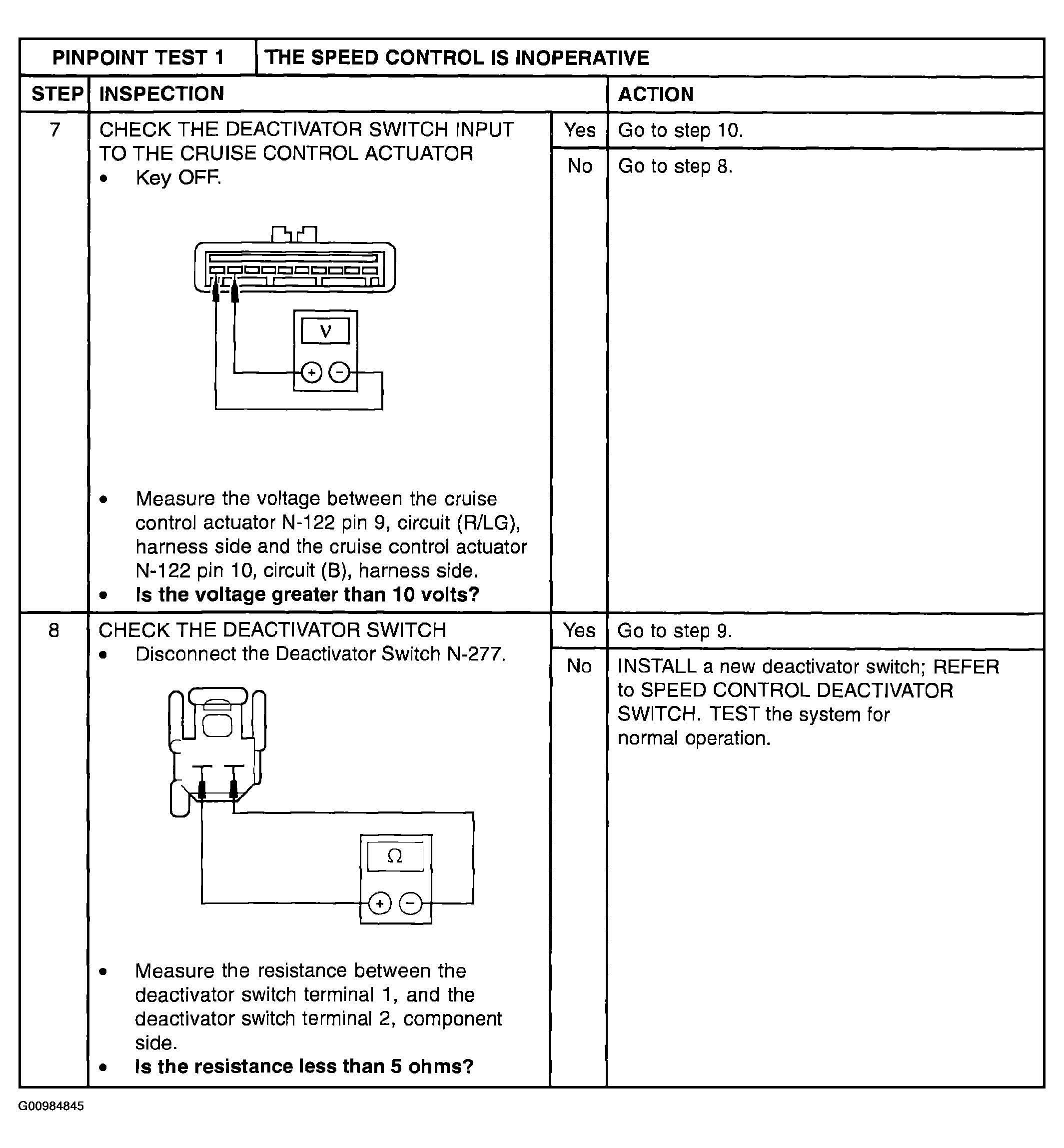

Fig 5: Pinpoint Test 1: The Speed Control Is Inoperative: Inspection (Steps 7-8)

Courtesy of MAZDA MOTORS CORP.

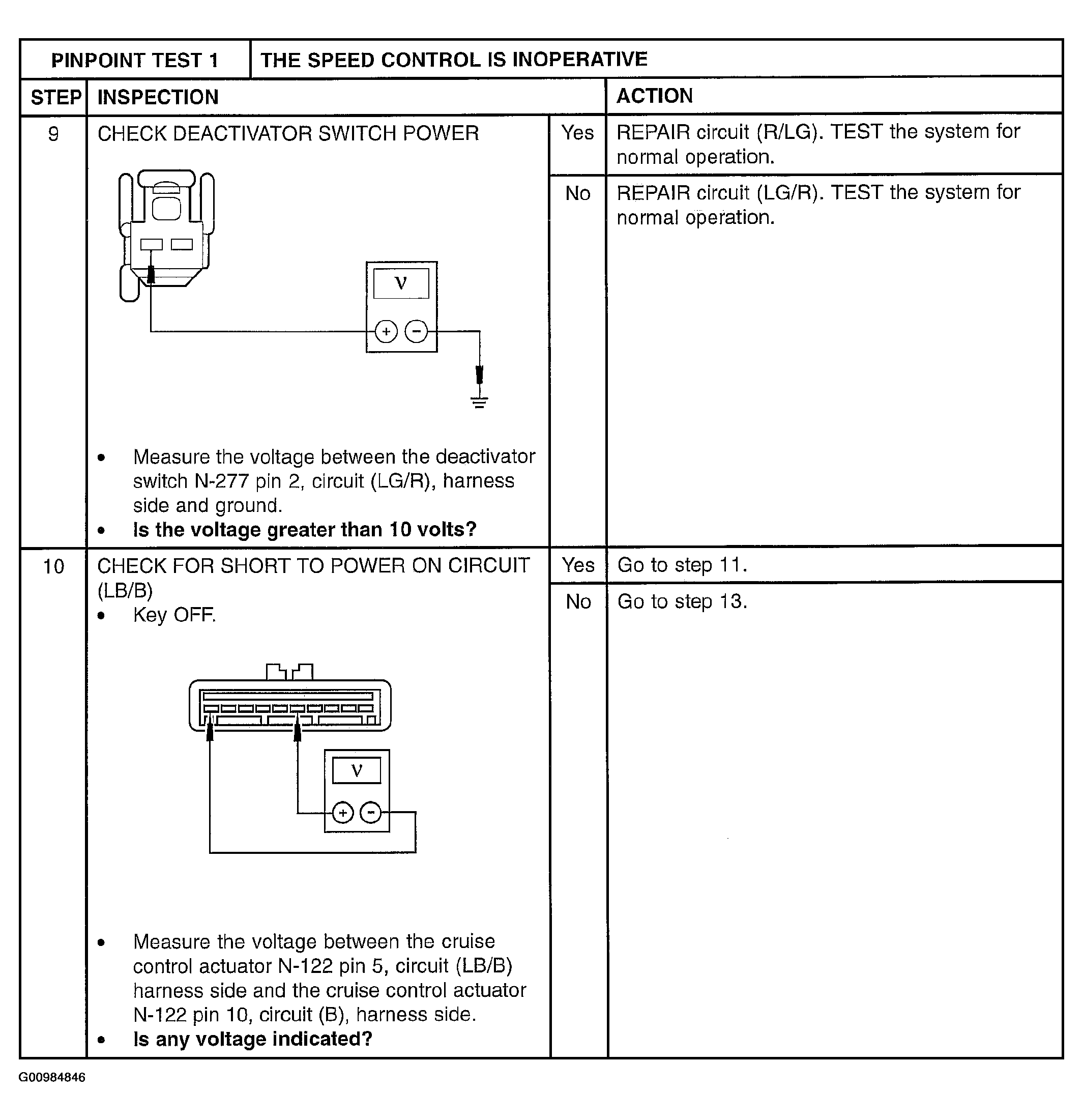

Fig 6: Pinpoint Test 1: The Speed Control Is Inoperative: Inspection (Steps 9-10)

Courtesy of MAZDA MOTORS CORP.

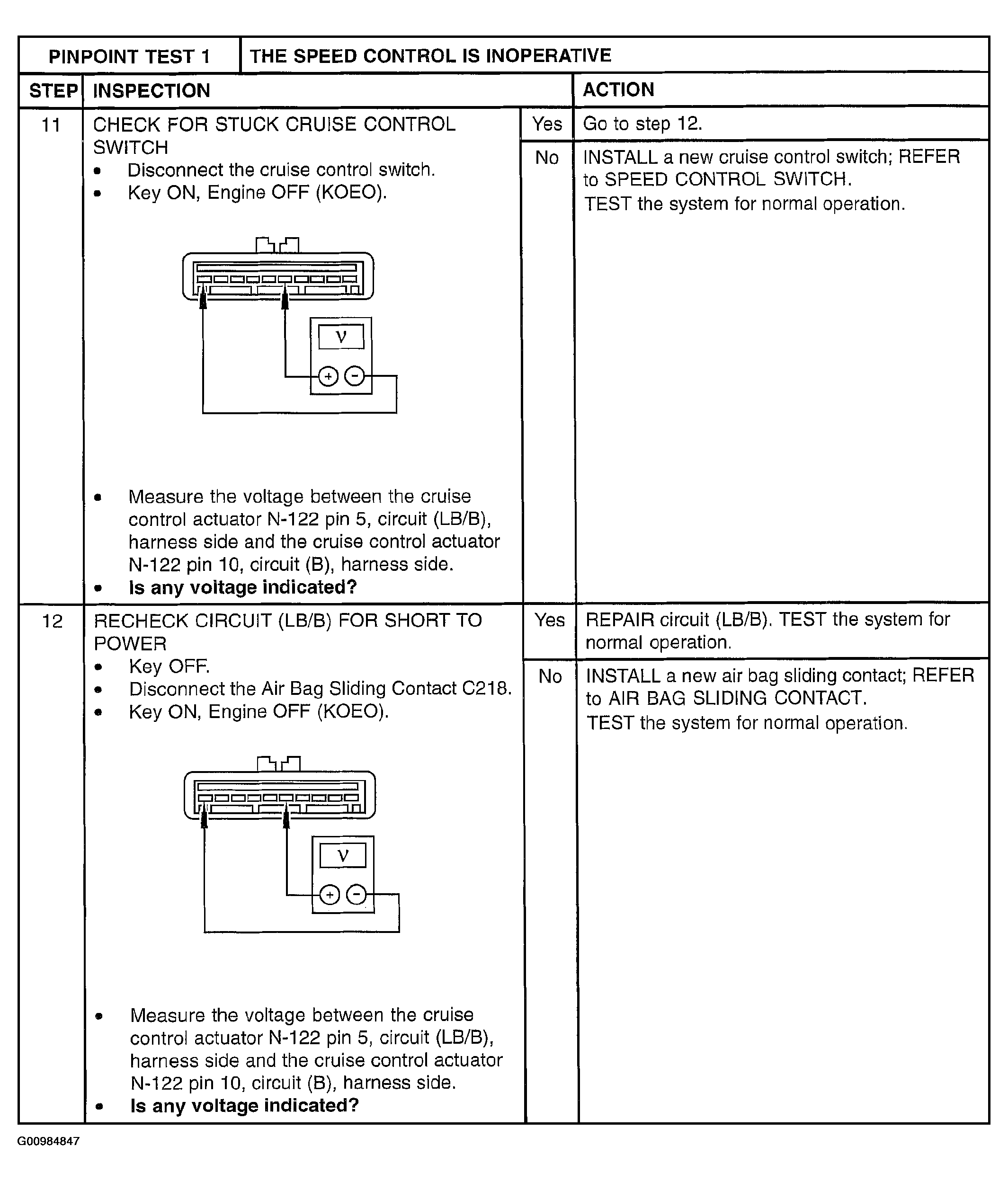

Fig 7: Pinpoint Test 1: The Speed Control Is Inoperative: Inspection (Steps 11-12)

Courtesy of MAZDA MOTORS CORP.

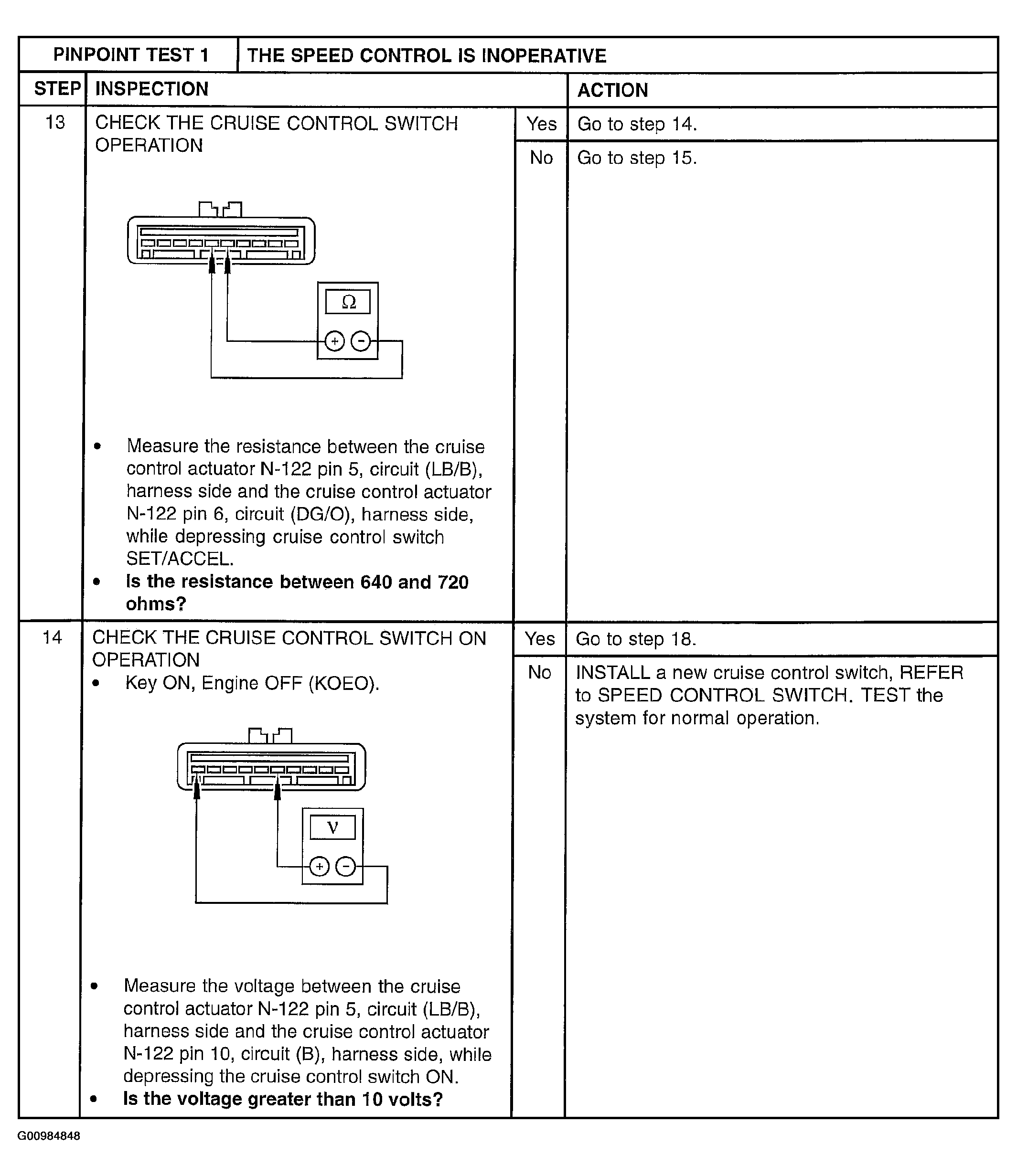

Fig 8: Pinpoint Test 1: The Speed Control Is Inoperative: Inspection (Steps 13-14)

Courtesy of MAZDA MOTORS CORP.

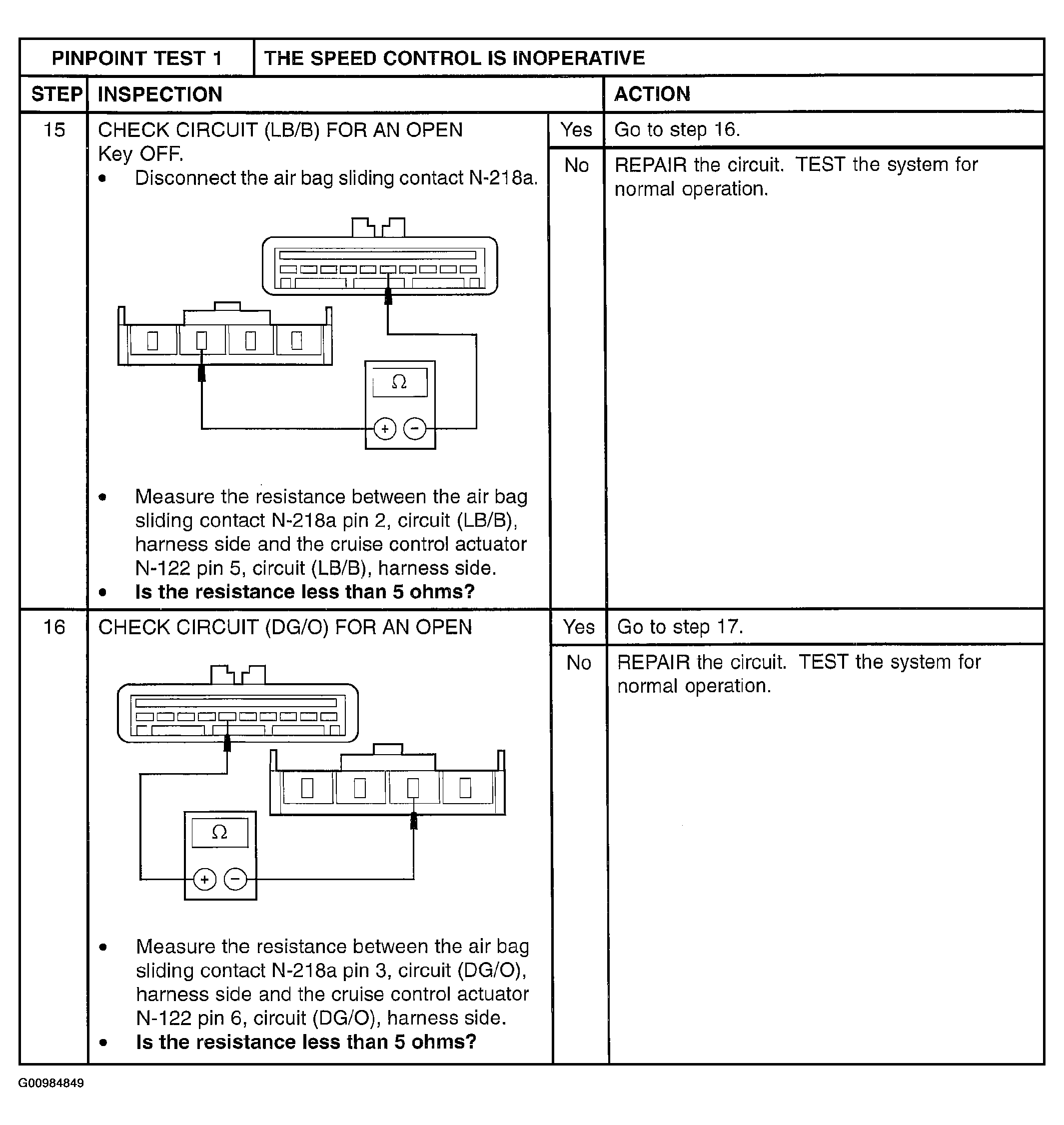

Fig 9: Pinpoint Test 1: The Speed Control Is Inoperative: Inspection (Steps 15-16)

Courtesy of MAZDA MOTORS CORP.

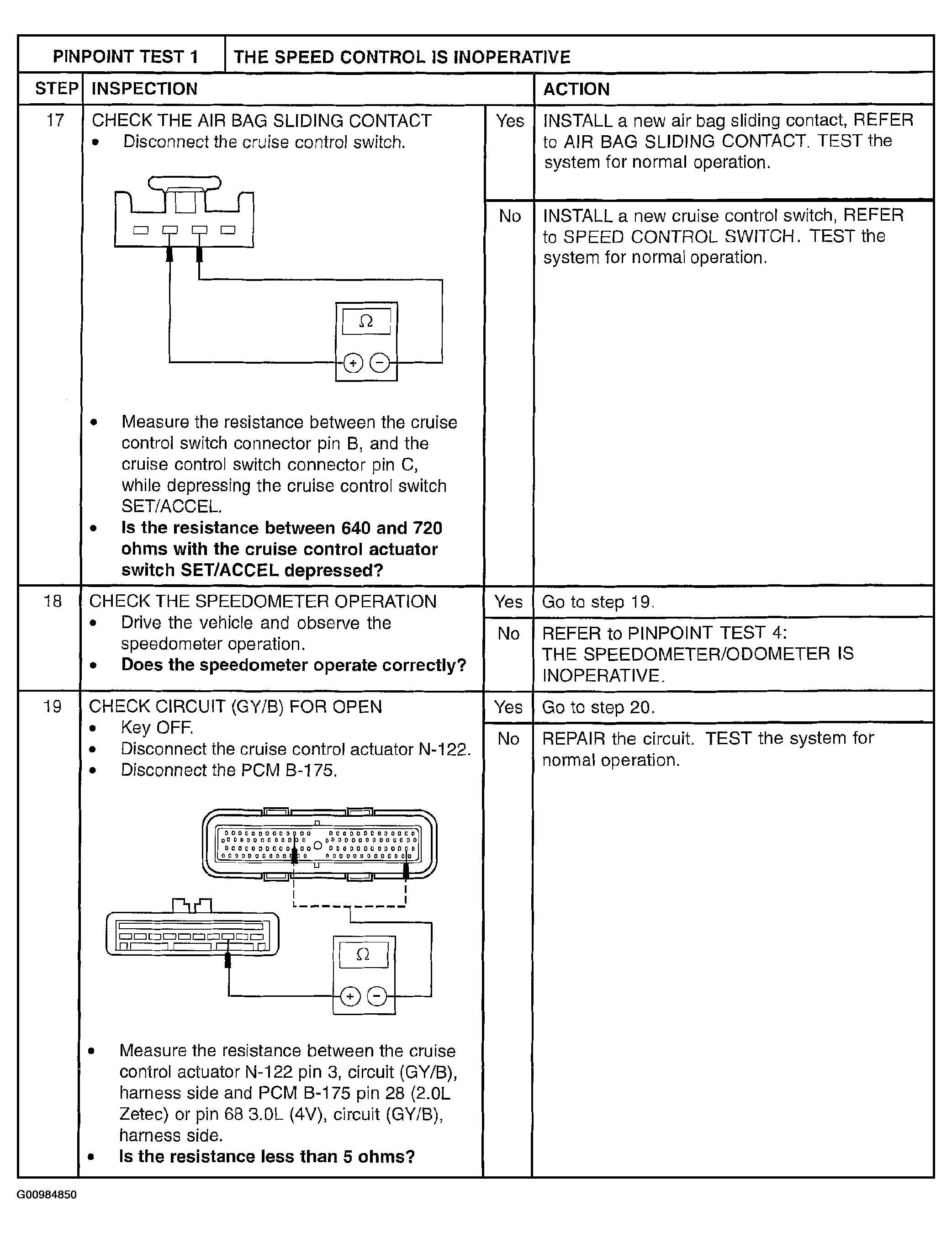

Fig 10: Pinpoint Test 1: The Speed Control Is Inoperative: Inspection (Steps 17-19)

Courtesy of MAZDA MOTORS CORP.

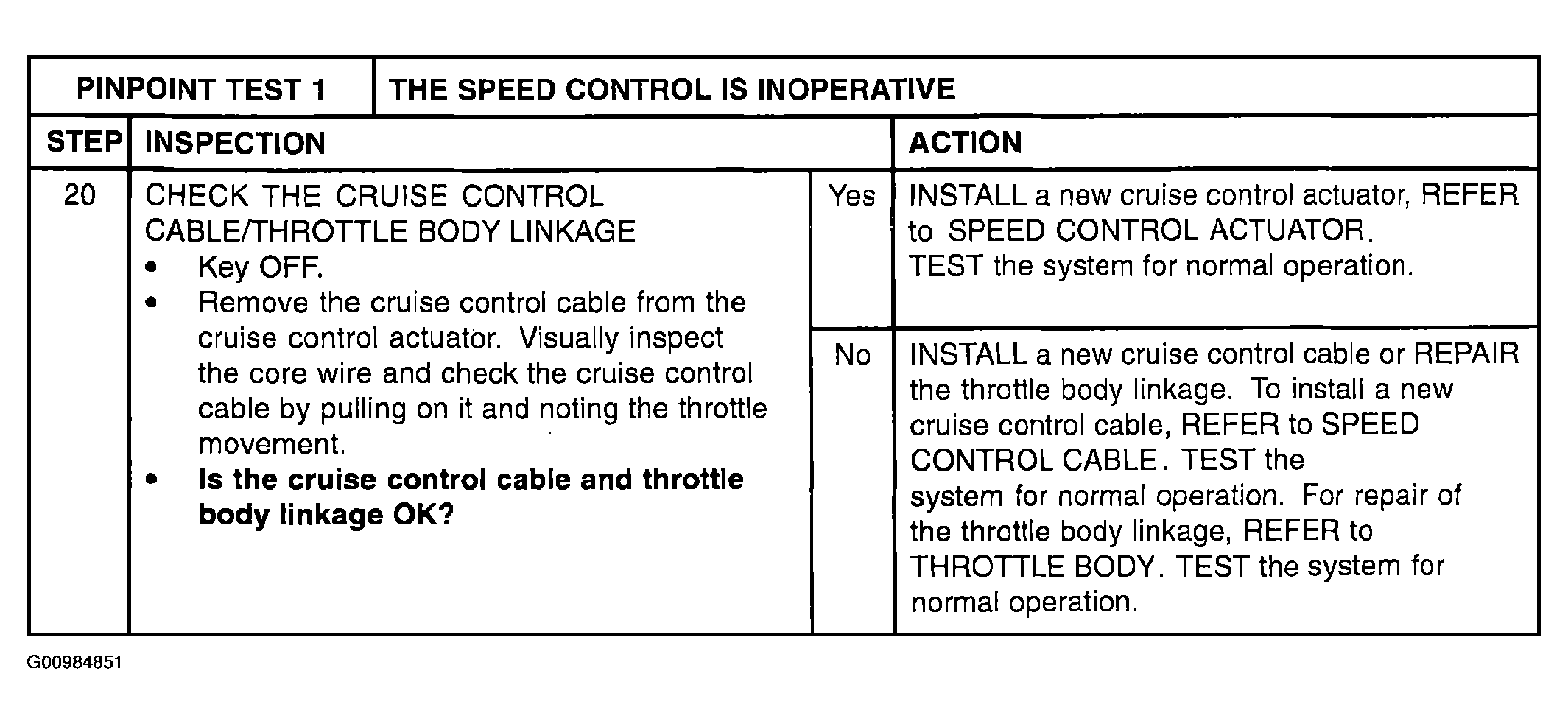

Fig 11: Pinpoint Test 1: The Speed Control Is Inoperative: Inspection (Step 20)

Courtesy of MAZDA MOTORS CORP.
