Pinpoint Test 8: The Charging System Warning Indicator Is Off With The Ignition Switch In The Run Position & The Engine Off

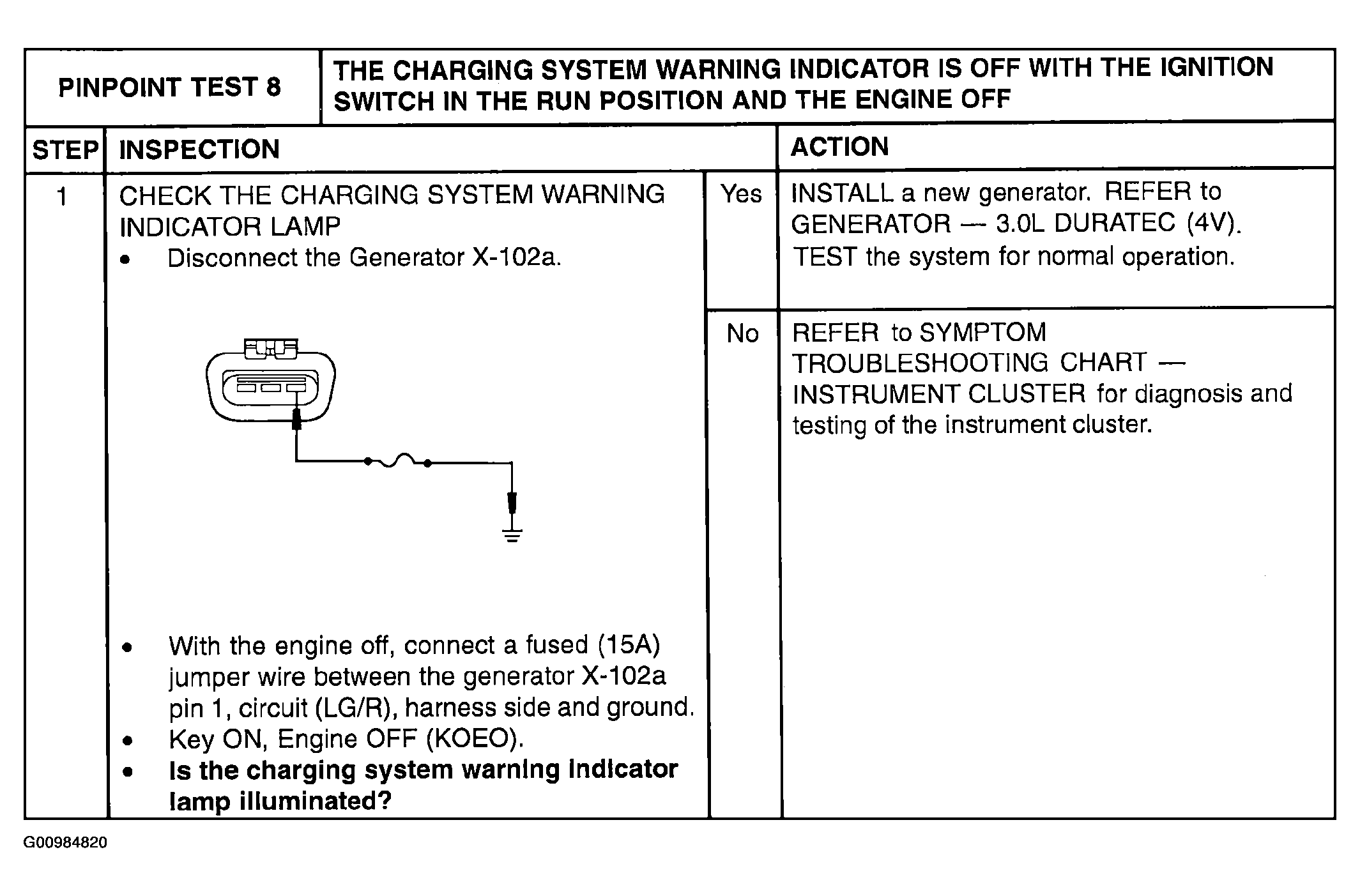

Fig 1: Pinpoint Test 8: The Charging System Warning Indicator Is Off With The Ignition Switch In The Run Position & The Engine OFF
G00984820Courtesy of MAZDA MOTORS CORP.
