Pinpoint Test 12: The Generator Is Noisy

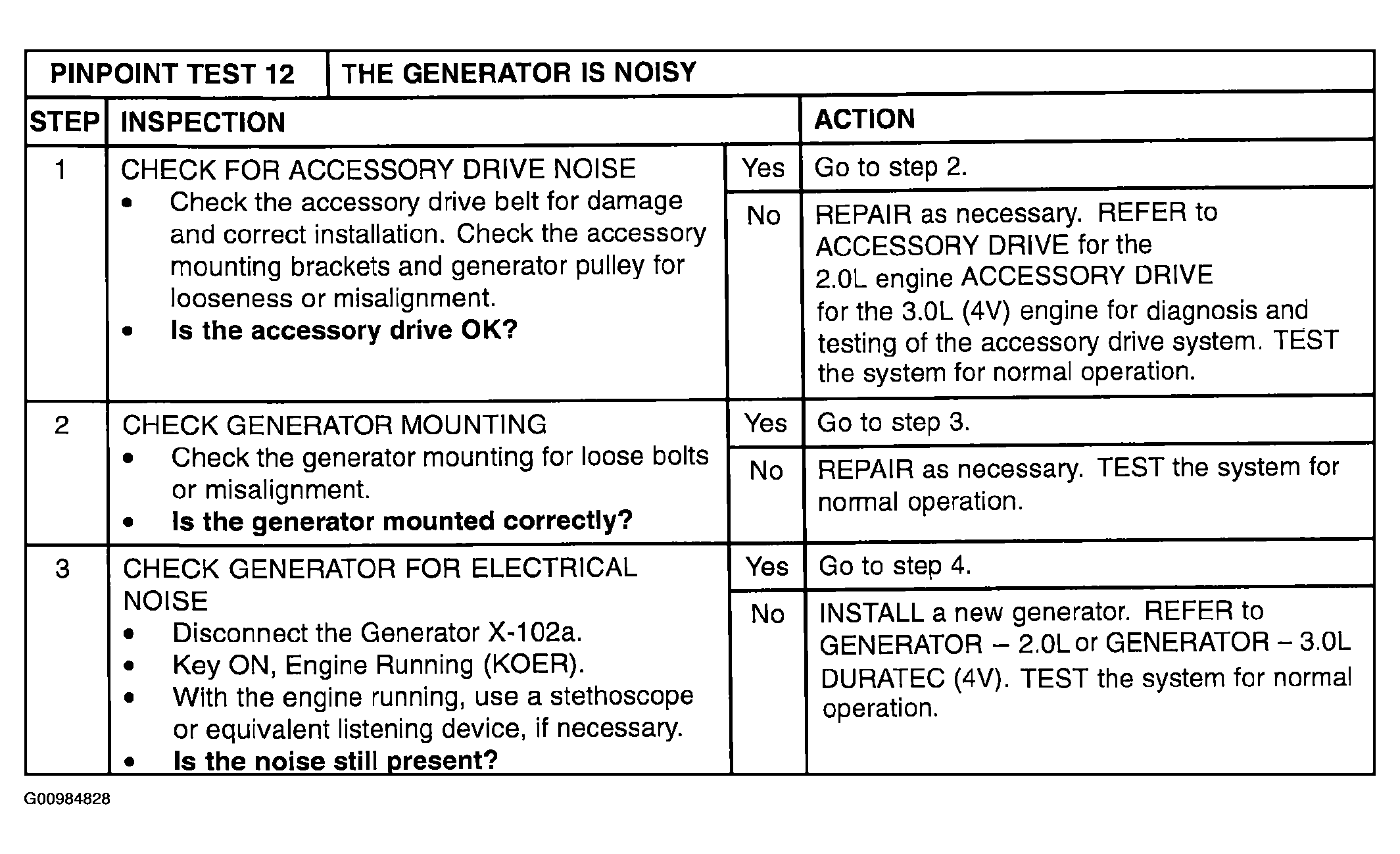

Fig 1: Pinpoint Test 12: The Generator Is Noisy: Inspection (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

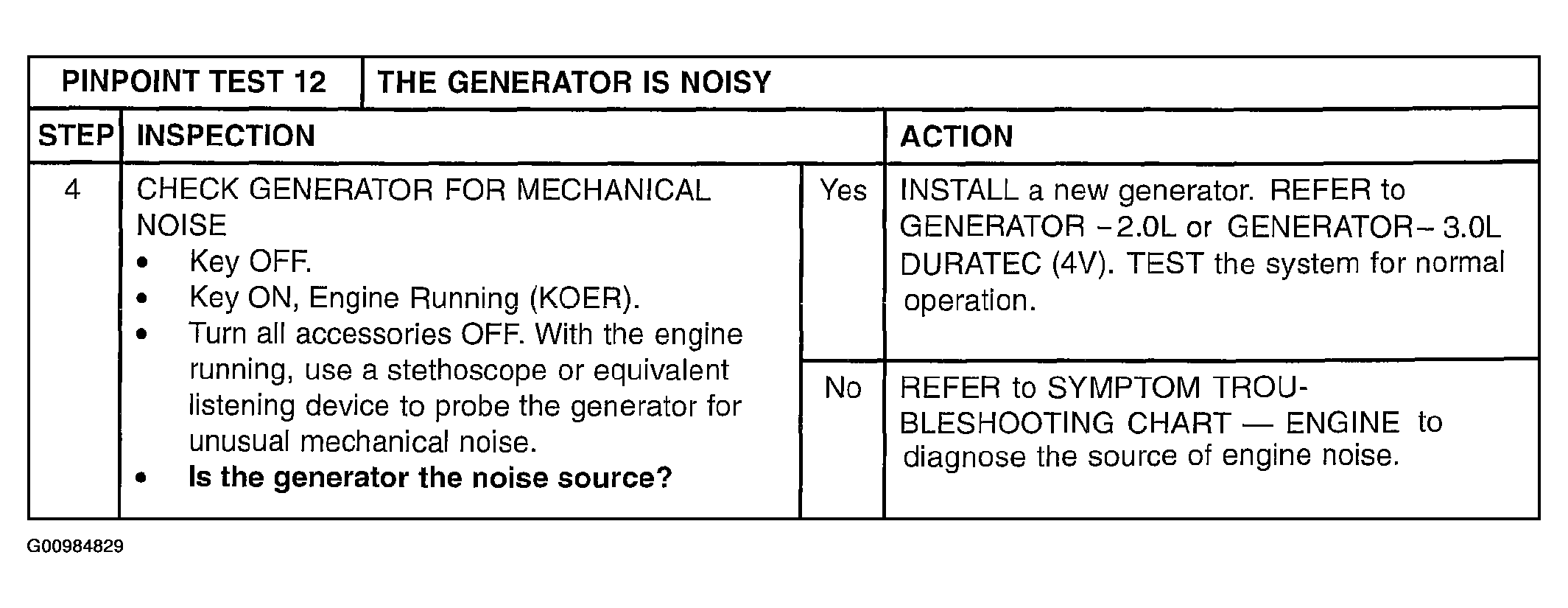

Fig 2: Pinpoint Test 12: The Generator Is Noisy: Inspection (Step 4)

Courtesy of MAZDA MOTORS CORP.
