Diagnostic Monitoring Test Results

The purpose of this test mode is to allow access to the results of OBD II monitor diagnostic test results. The test values that are stored at the time of the particular monitor completion are displayed when the particular test identification is requested. Refer to DIAGNOSTIC MONITORING TEST RESULTS  for test information.

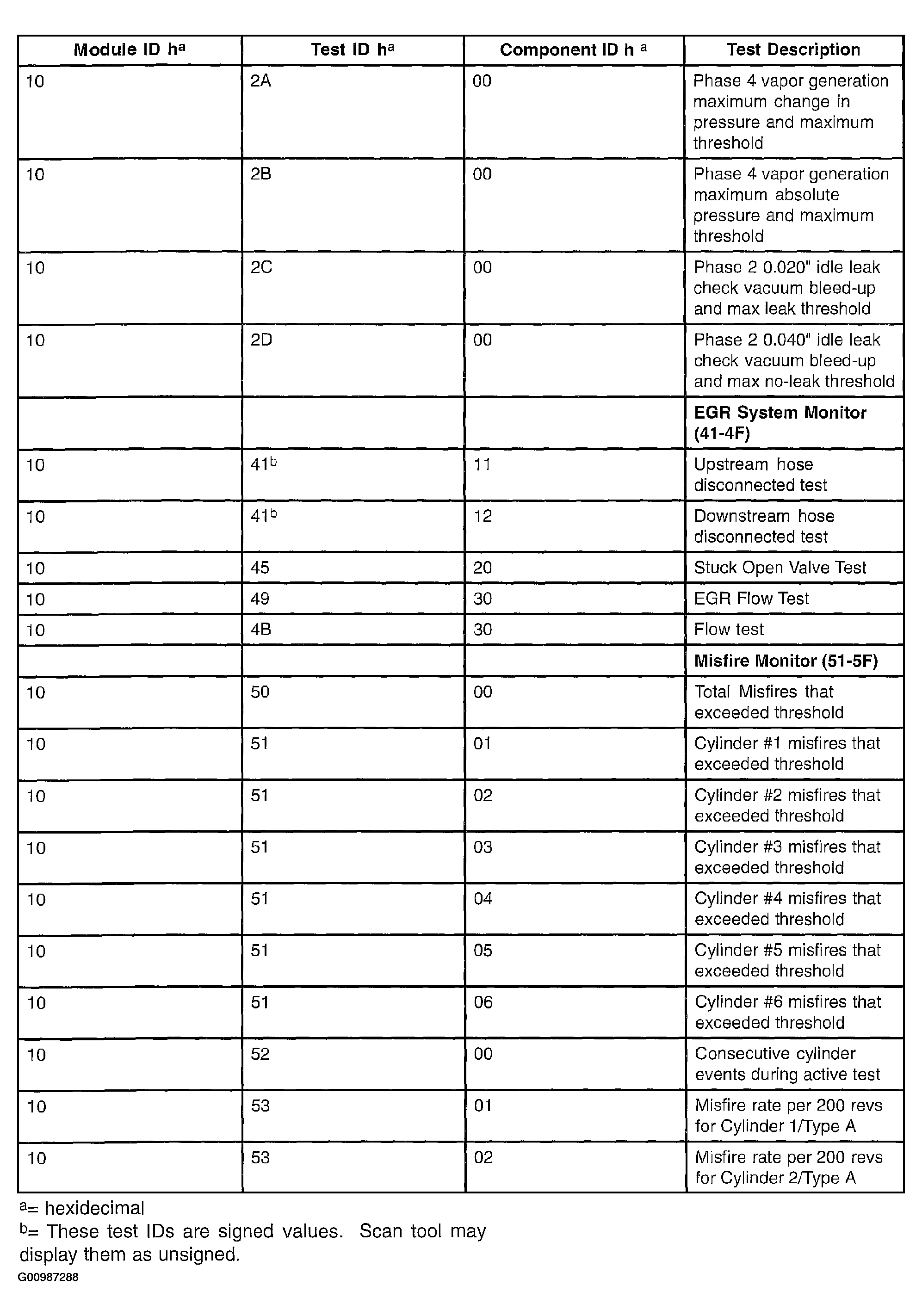

Fig 1: Diagnostic Monitoring Test Results (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

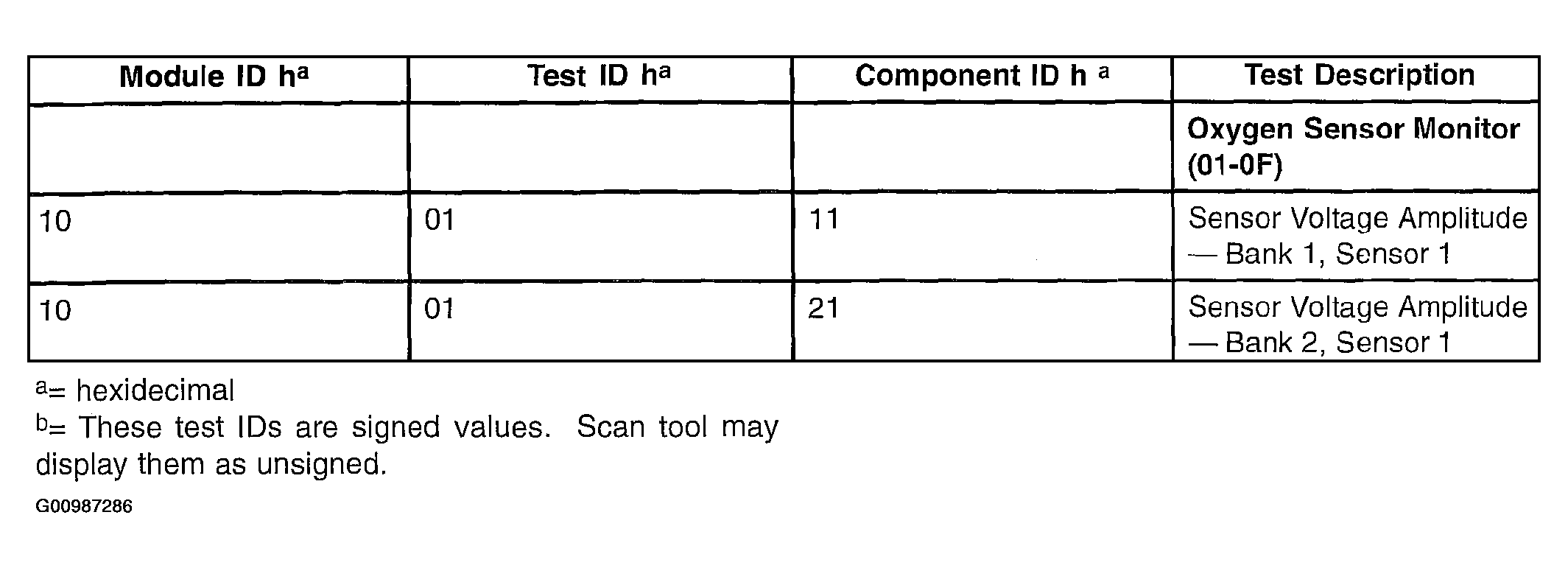

Fig 2: Diagnostic Monitoring Test Results (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

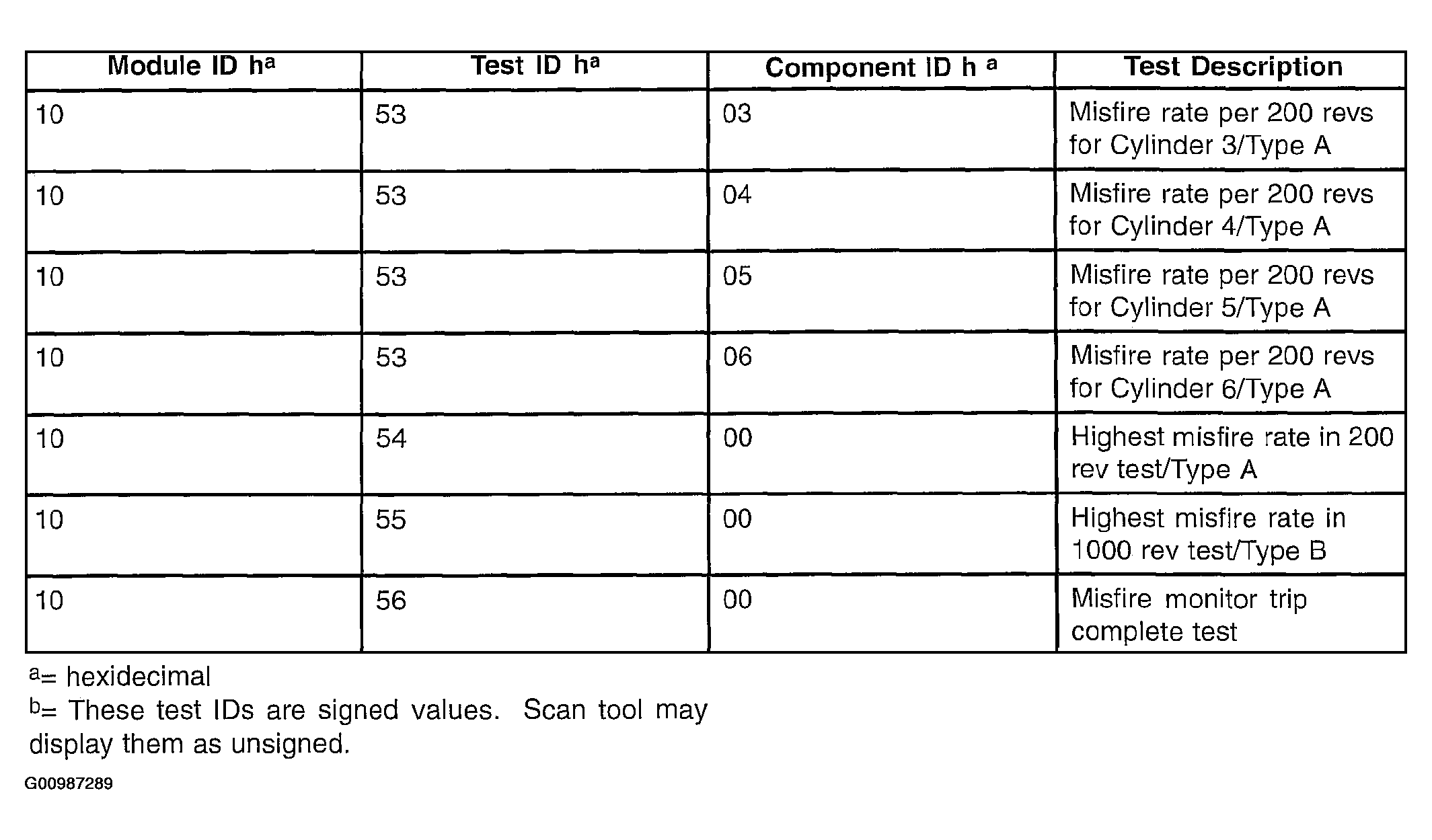

Fig 3: Diagnostic Monitoring Test Results (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

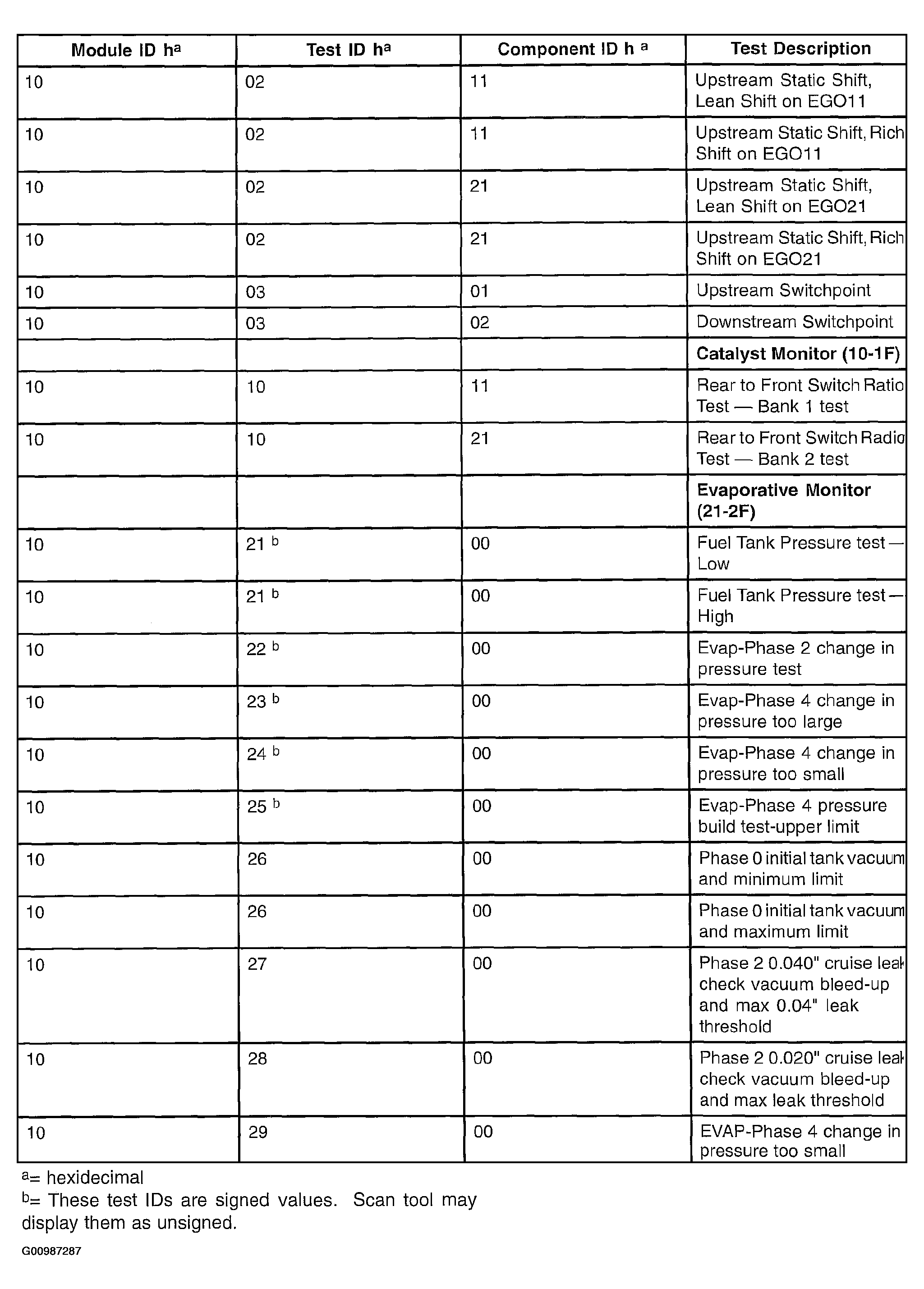

Fig 4: Diagnostic Monitoring Test Results (4 Of 4)

Courtesy of MAZDA MOTORS CORP.

The conversion is done as follows: If the value is > 32767 then complement (change 0's to 1's and 1's to 0's), add 1 and a negative sign.

Example:

Fig 5: Identifying Example

Courtesy of MAZDA MOTORS CORP.
