Spark Plug Wires: Removal

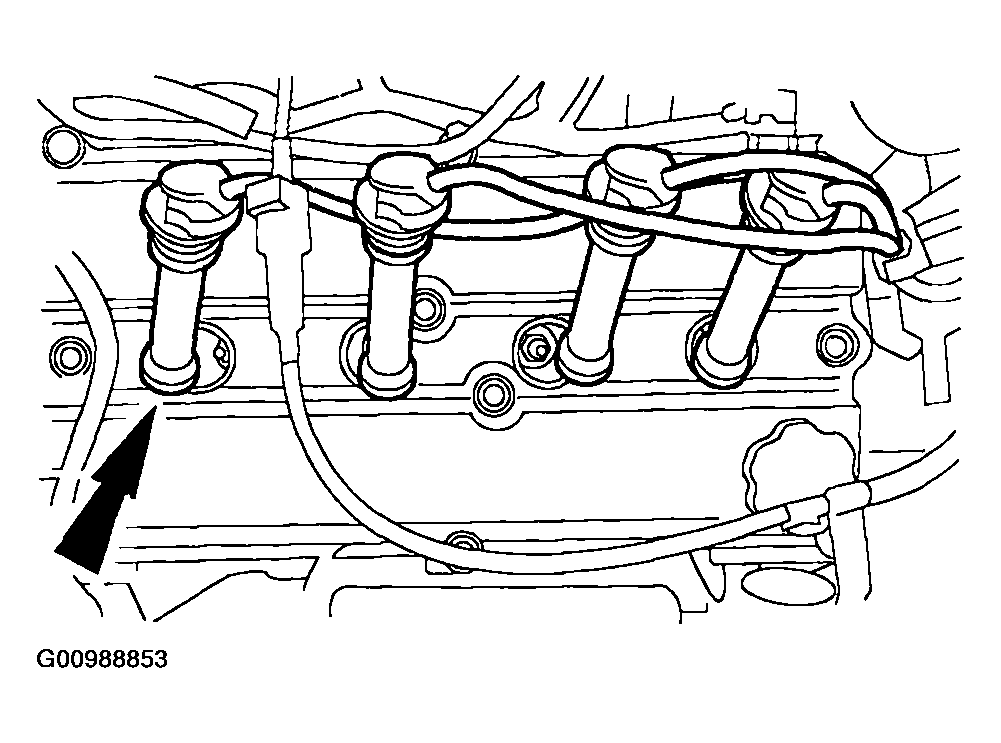

Fig 1: Disconnecting Ignition Wires From Spark Plugs
G00988853Courtesy of MAZDA MOTORS CORP.
CAUTION:
  • Do not pull on the ignition wire directly, as the wire may separate from the connector inside the spark plug boot.
  1. Grasp the spark plug boot firmly and with a twisting pulling motion, disconnect the ignition wires from the spark plugs.

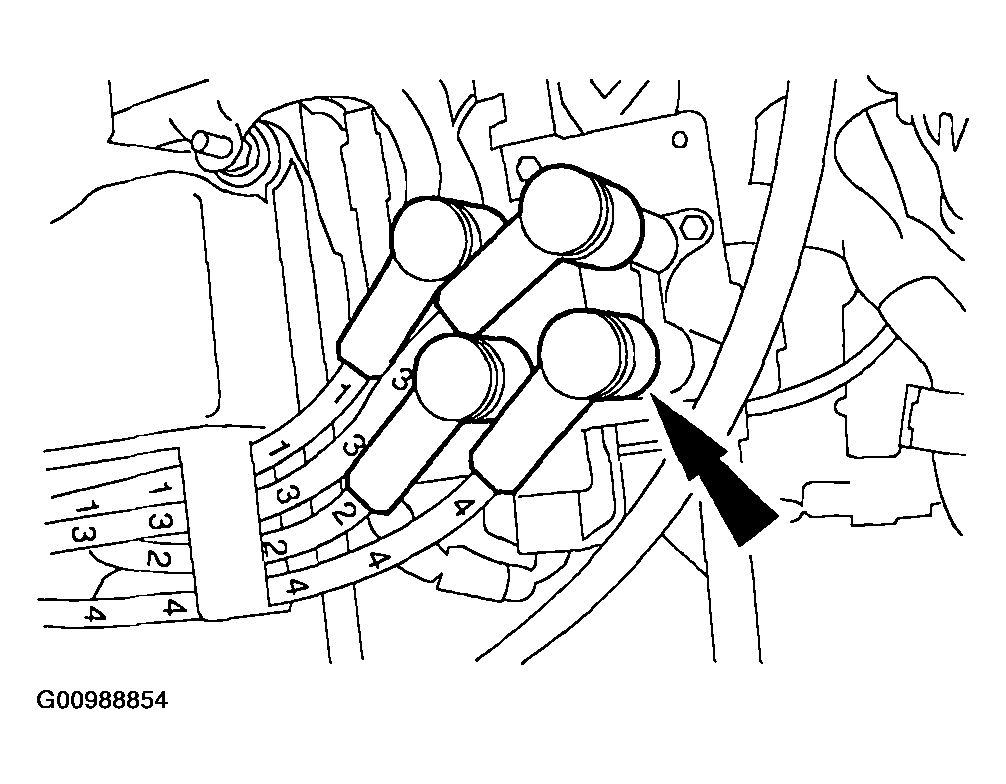

    Fig 2: Disconnecting Ignition Wires From Ignition Coil
    G00988854Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the ignition wires from the ignition coil and remove the wires.
