Engine Compartment Fuse Block

Engine compartment fuse block is located on driver's side of engine compartment. See Fig 1 .

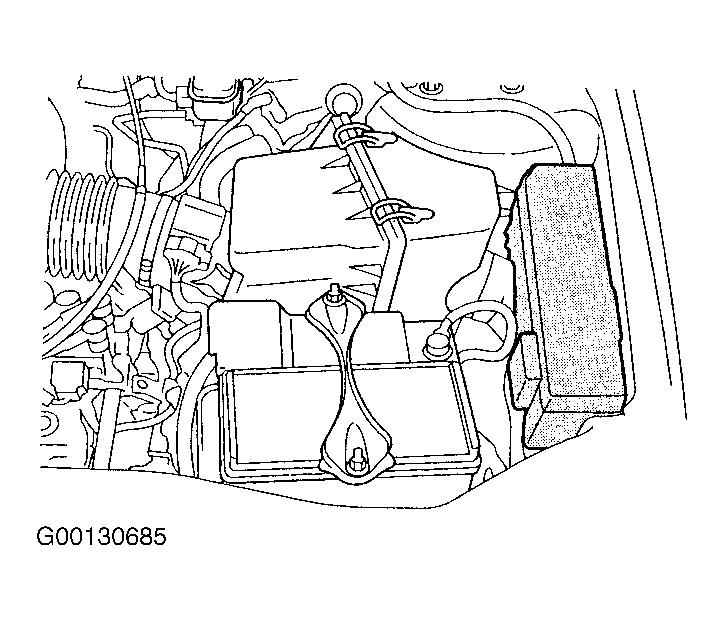

Fig 1: Locating Engine Compartment Fuse Box

Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Engine Compartment Fuse Box Components

Courtesy of MAZDA MOTORS CORP.

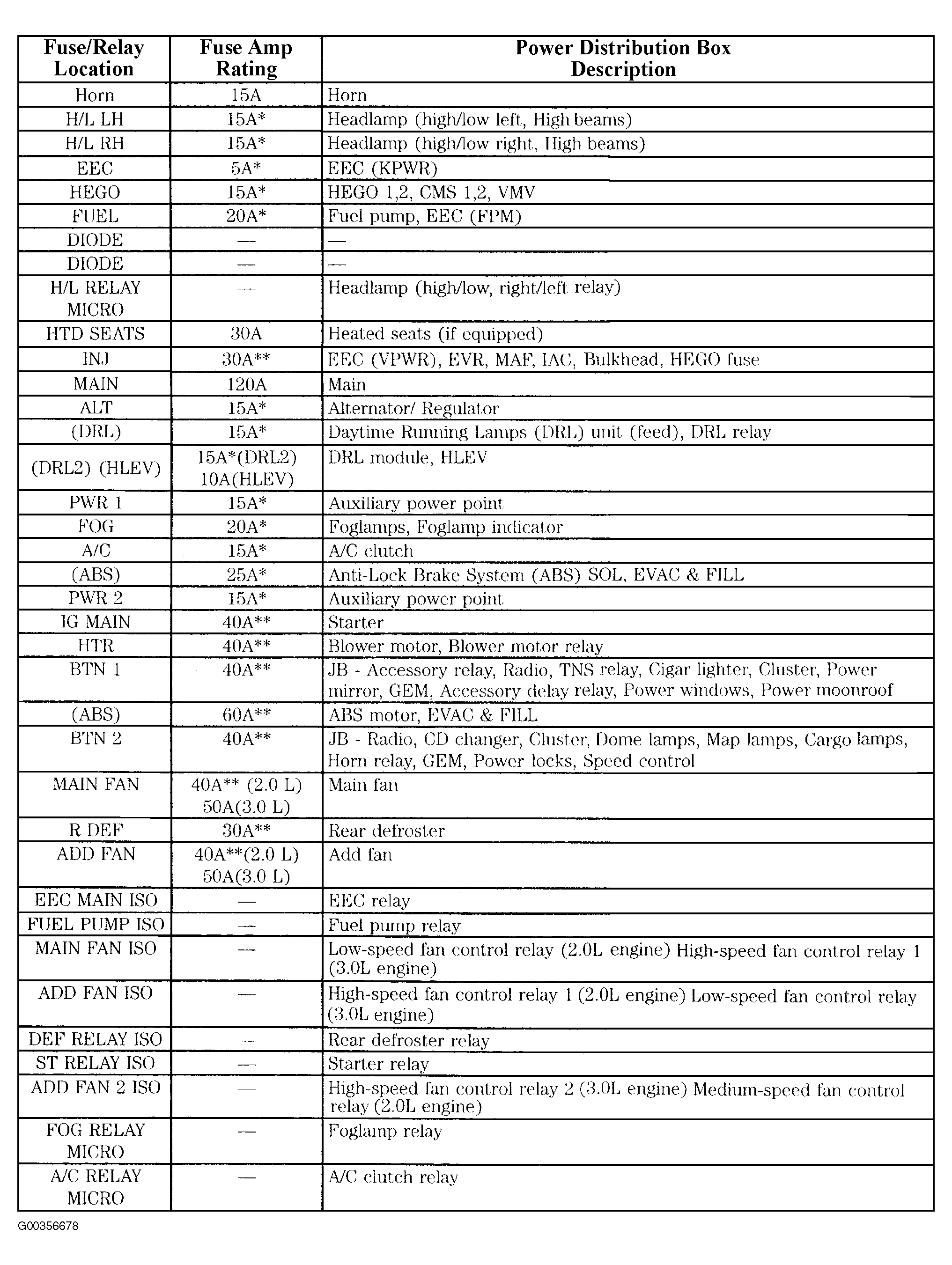

Fig 3: Engine Compartment Fuse Box Legend

Courtesy of MAZDA MOTORS CORP.
