Pinpoint Test 2: All Door Locks Are Inoperative From One Switch

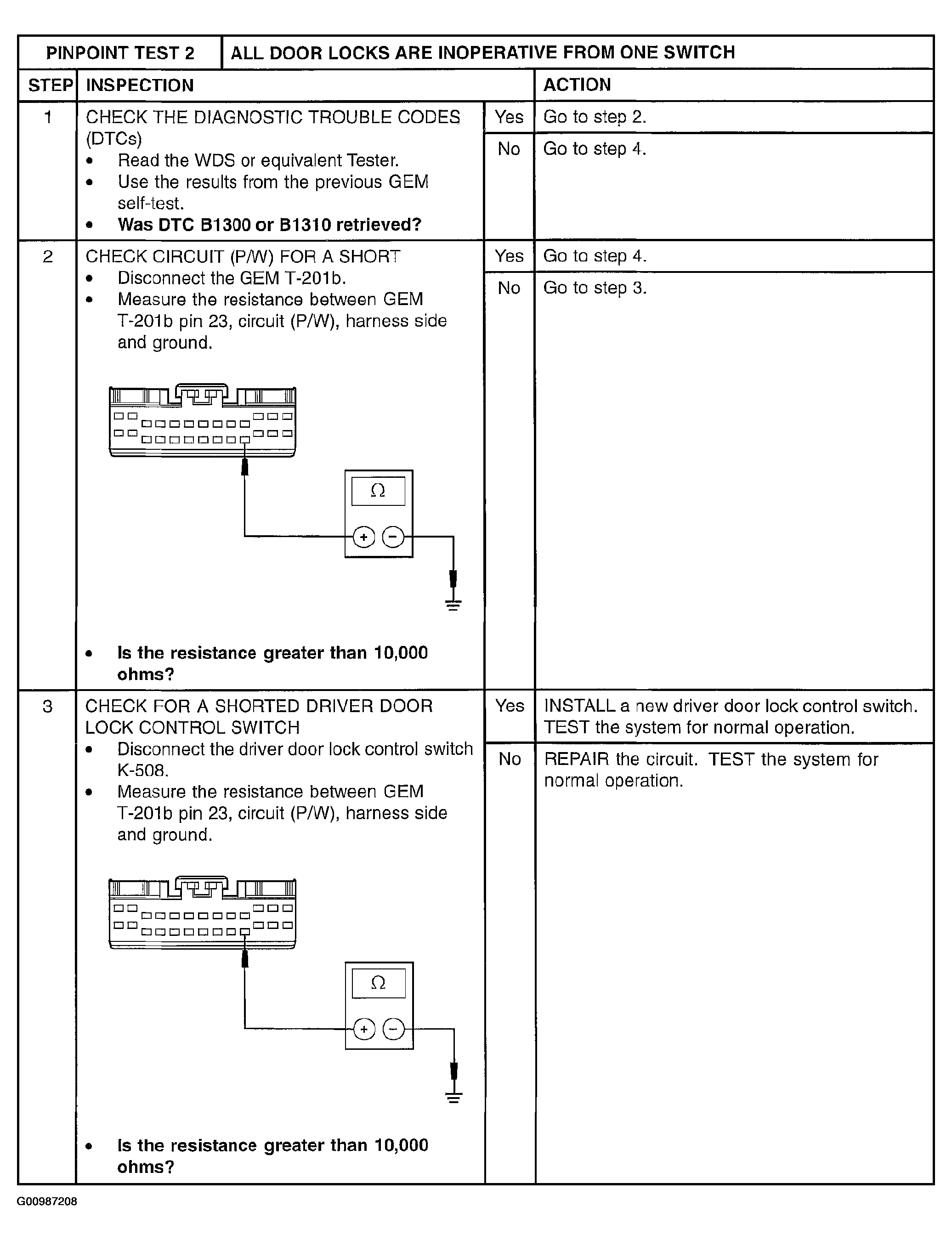

Fig 1: Pinpoint Test 2: All Door Locks Are Inoperative From One Switch - Inspection Procedure Chart (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

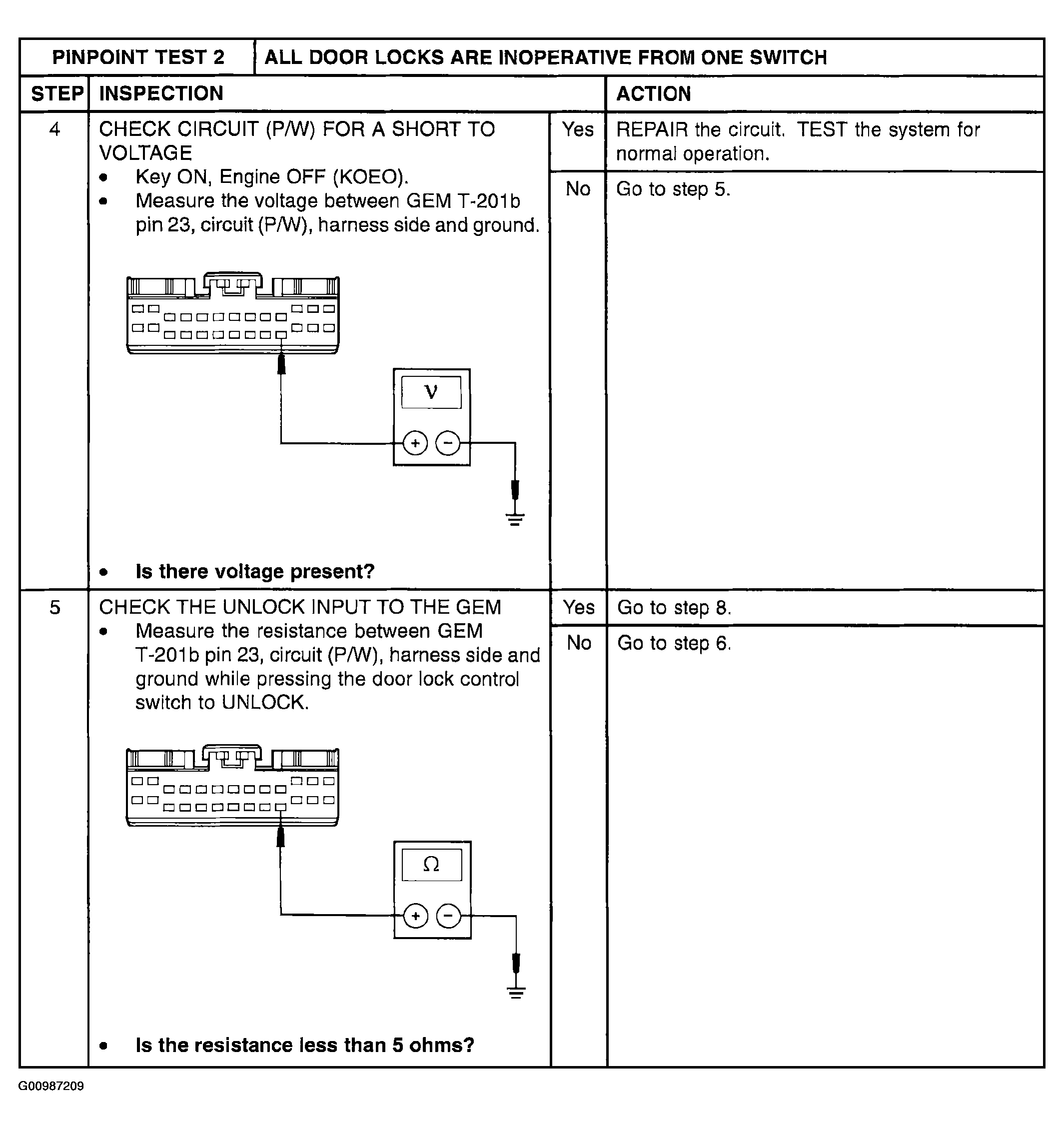

Fig 2: Pinpoint Test 2: All Door Locks Are Inoperative From One Switch - Inspection Procedure Chart (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Pinpoint Test 2: All Door Locks Are Inoperative From One Switch - Inspection Procedure Chart (Step 6)

Courtesy of MAZDA MOTORS CORP.
