Removal and Installation

NOTE:
  • Make sure the liftgate window glass is in the raised position.
  1. Remove the liftgate trim panel.

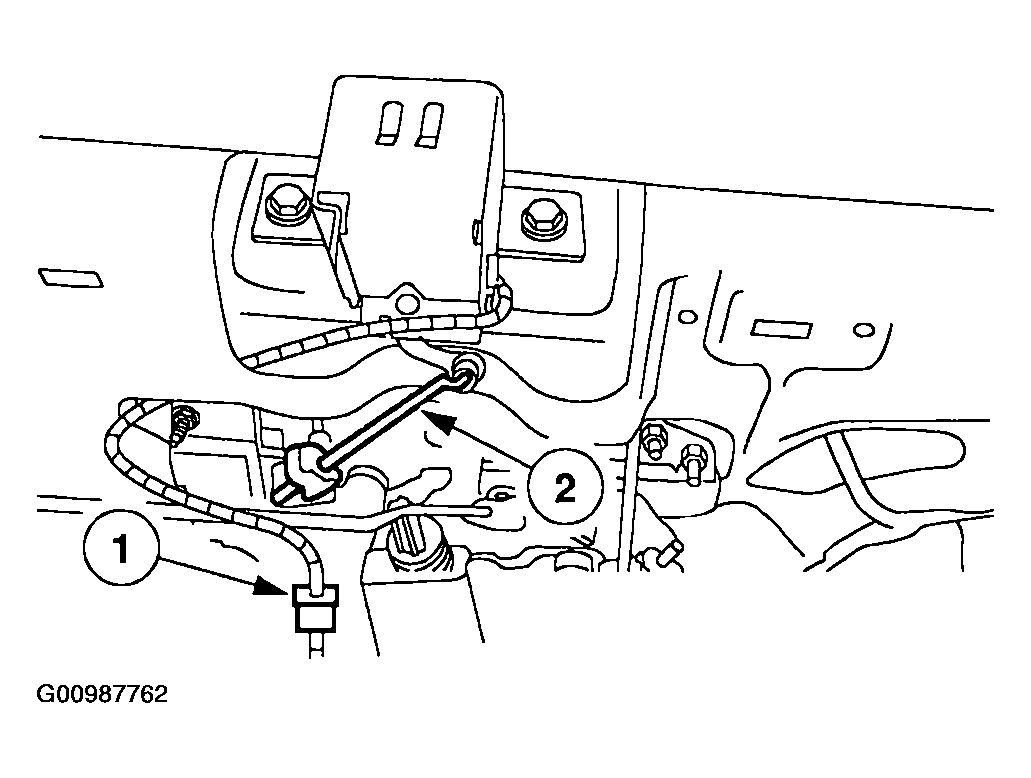

    Fig 1: Disconnecting Liftgate Window Latch
    G00987762Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the liftgate window latch.
    1. Disconnect the liftgate window latch ajar switch electrical connector.
    2. Open the clip and disconnect the actuating rod.
    Fig 2: Removing Liftgate Window Latch
    G00987763Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Mark the position of the liftgate window latch prior to removing the nuts.
  3. Remove the liftgate window latch.
    1. Remove the bolts.
    2. Remove the latch.
