Cover Removal Note

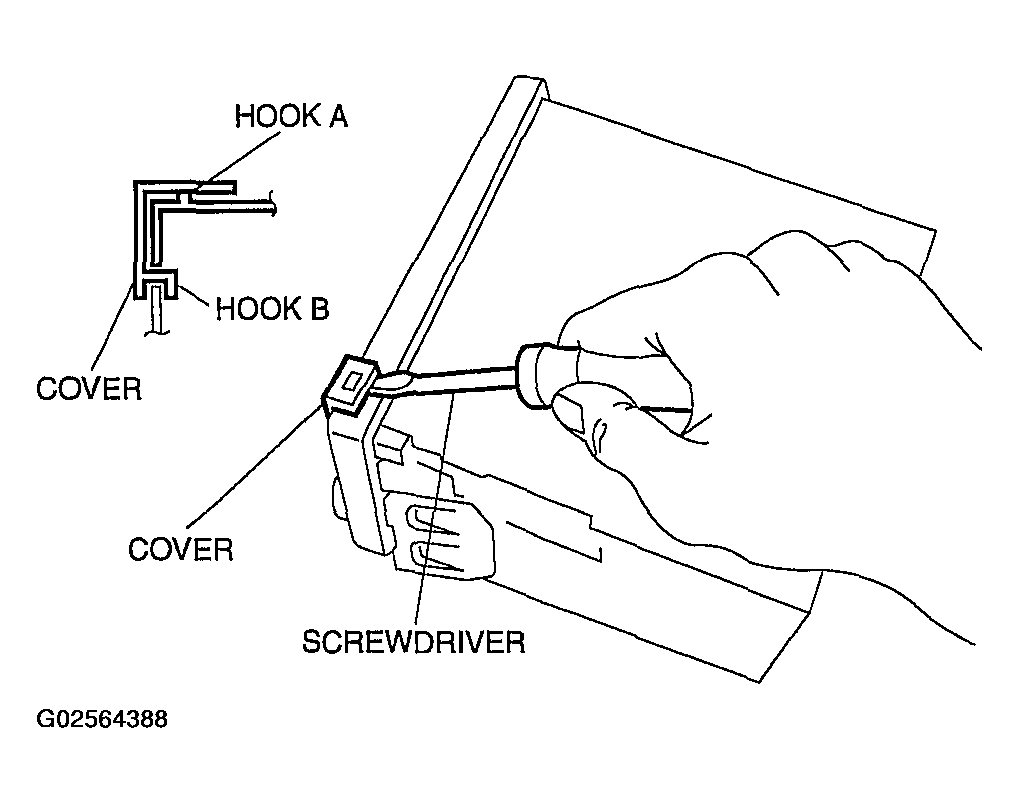

Fig 1: Removing Cover
G02564388Courtesy of MAZDA MOTORS CORP.
  1. Insert a tape-wrapped screwdriver between the cover and the base unit, then unlatch hook A.
  2. To unlatch hook B, pull the cover upward.
