Liftgate Window Latch: Installation

Fig 1: Positioning Liftgate Window Latch
G00987764Courtesy of MAZDA MOTORS CORP.
  1. Position the liftgate window latch and loosely install the bolts.
  2. Adjust the liftgate window latch.
    1. Set the liftgate window glass flushness to 1.5 mm (0.06 in) under flush.
    Fig 2: Tightening Liftgate Window Latch Bolts
    G00987765Courtesy of MAZDA MOTORS CORP.
  3. Tighten the liftgate window latch bolts.

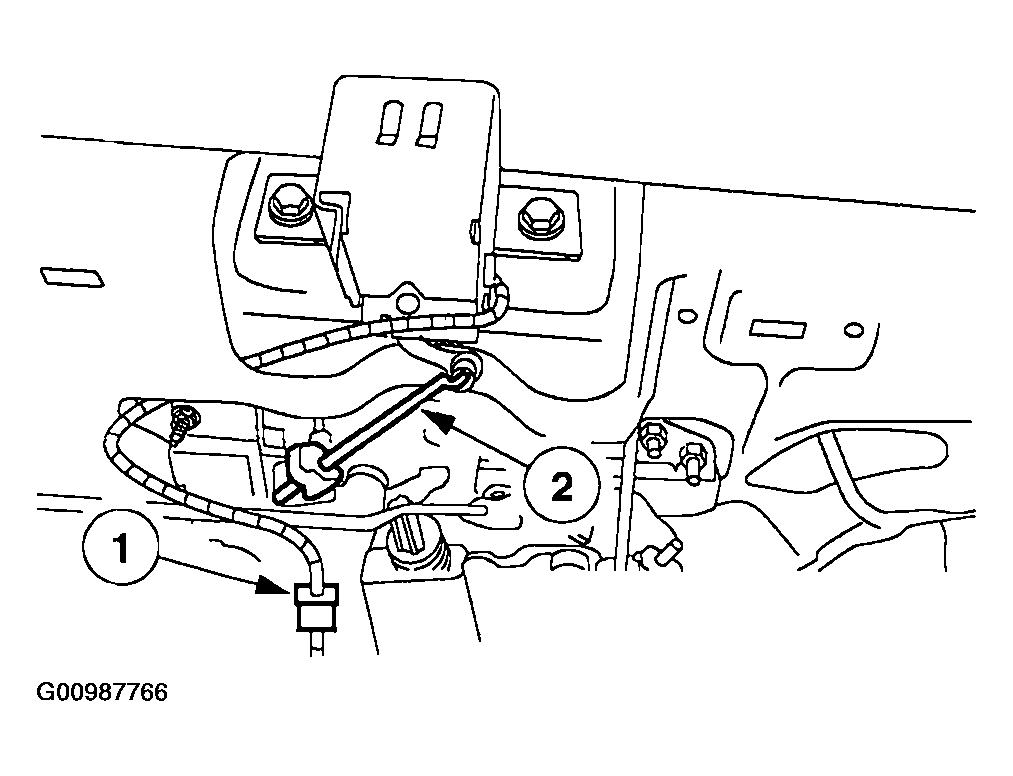

    Fig 3: Connecting Liftgate Window Latch
    G00987766Courtesy of MAZDA MOTORS CORP.
  4. Connect the liftgate window latch.
    1. Connect the liftgate window latch ajar switch electrical connector.
    2. Connect the actuating rod and close the clip.
  5. Install the liftgate trim panel.
