Symptom Troubleshooting [Transmission]
>>
Diagnostic Flow Chart
>>
Diagnostic Flow Chart
Diagnostic Flow Chart

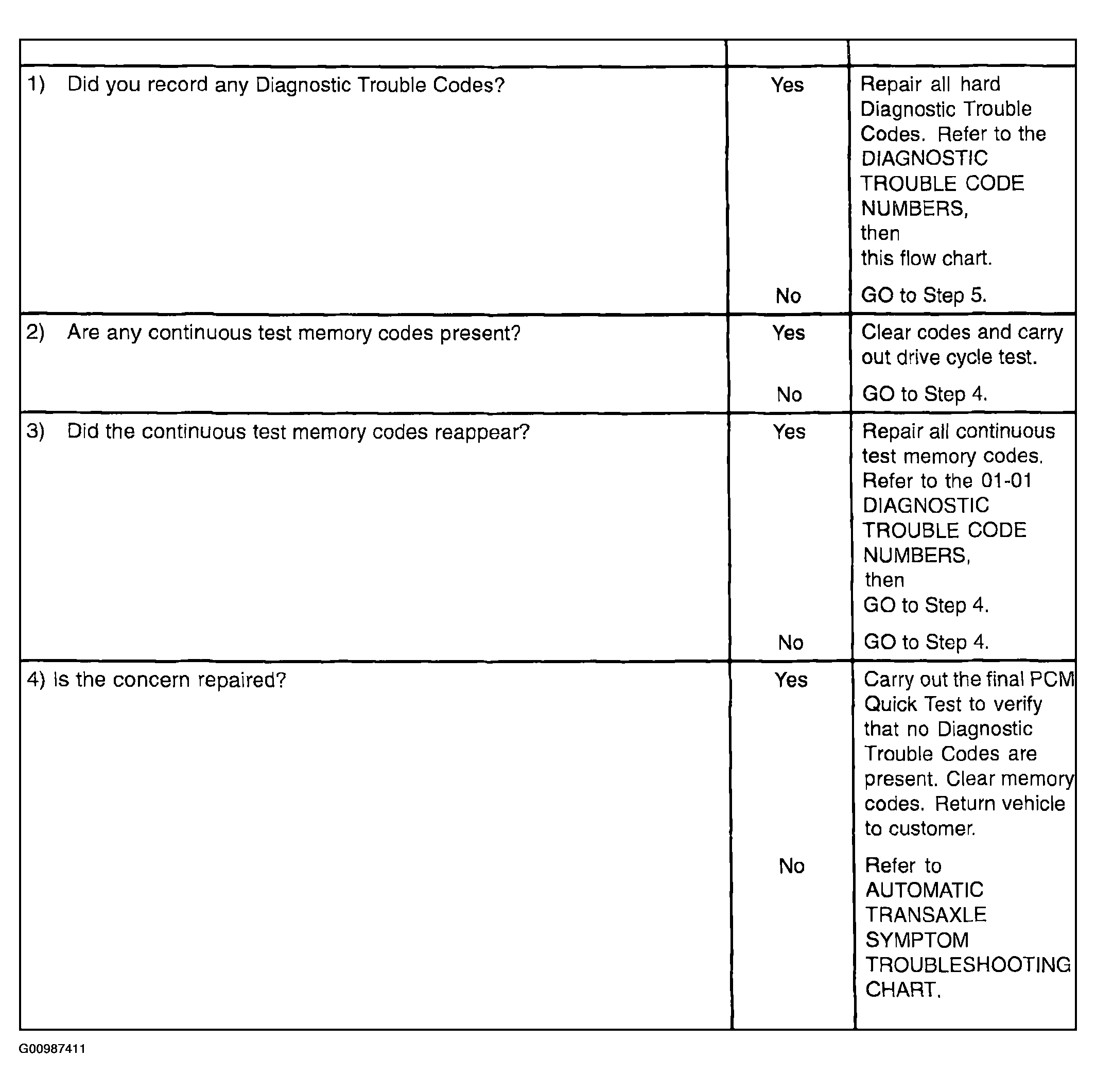

Fig 1: Diagnostic Flow Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

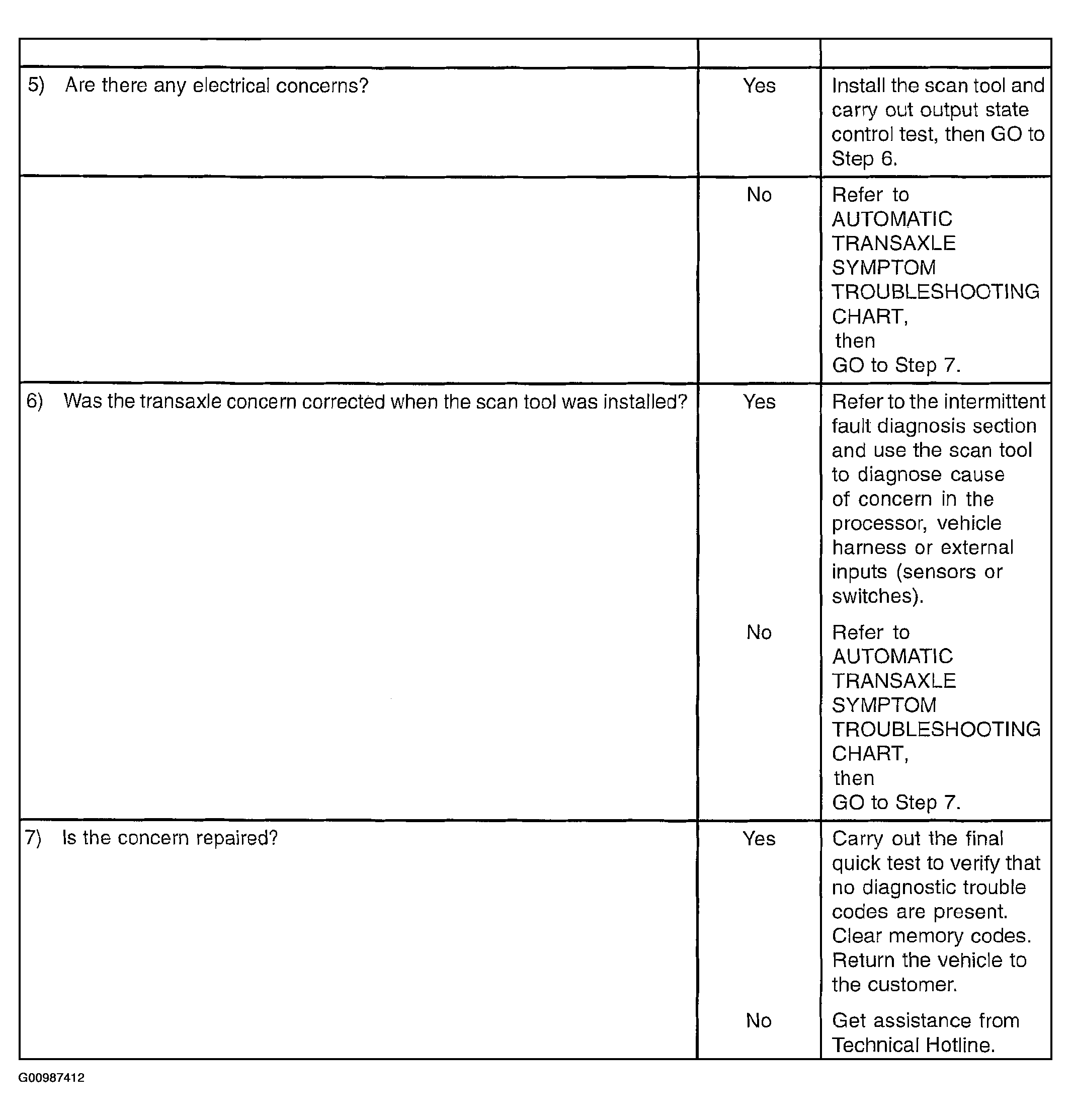

Fig 2: Diagnostic Flow Chart (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
