Cranks Normal But Will Not Start

Fig 1: Chart 3 Cranks Normal But Will Not Start: Description
G00984699Courtesy of MAZDA MOTORS CORP.

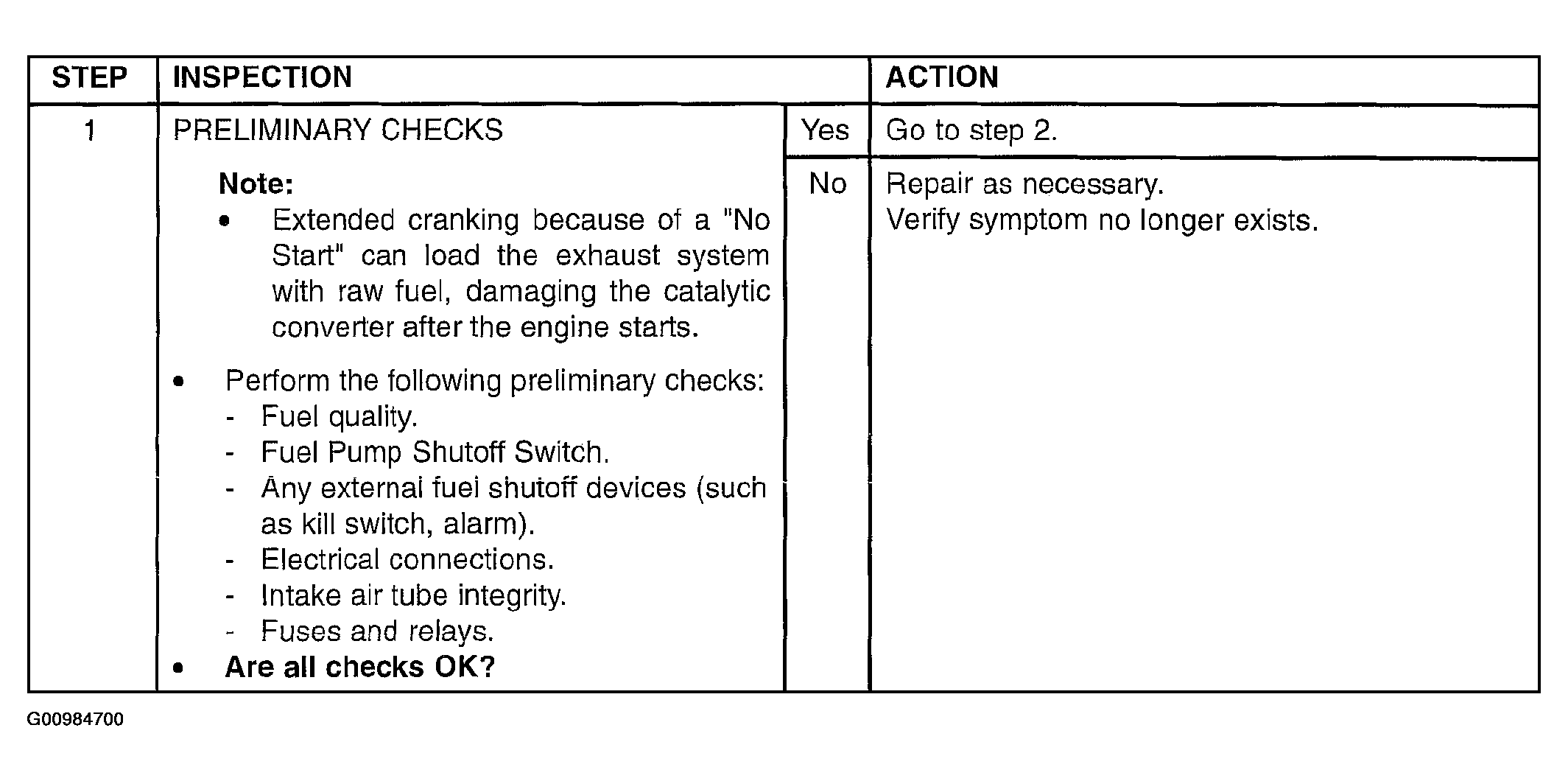

Fig 2: Chart 3 Cranks Normal But Will Not Start: Inspection (Step 1)
G00984700Courtesy of MAZDA MOTORS CORP.

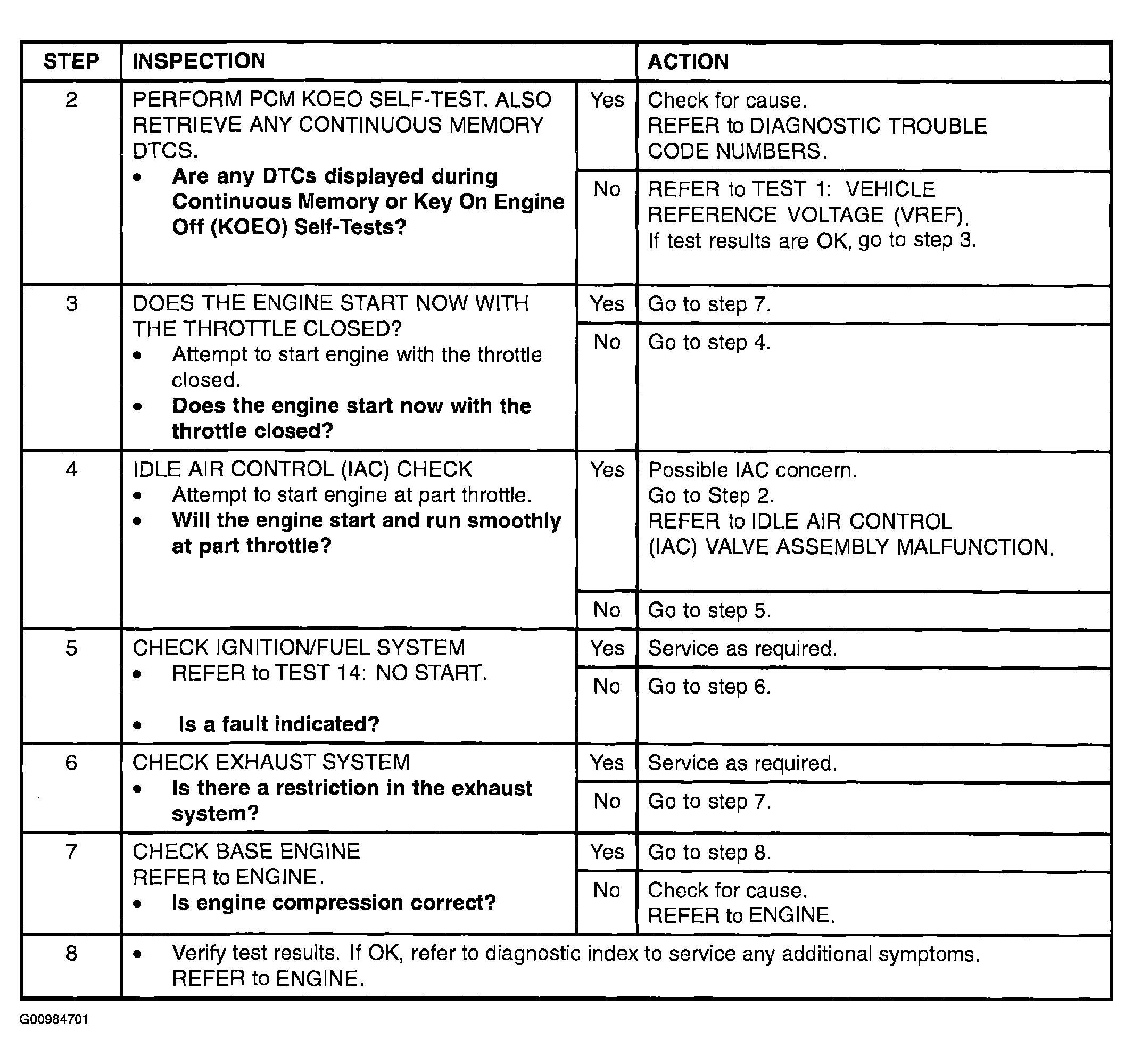

Fig 3: Chart 3 Cranks Normal But Will Not Start: Inspection (Steps 2-8)
G00984701Courtesy of MAZDA MOTORS CORP.
