Removal and Installation

Raise and support the vehicle. For additional information, Refer to LIFTING .
Use a suitable jack to support the fuel tank.

Fig 1: Disconnecting Pin-Type Retainer From Fuel Tank Strap
Courtesy of MAZDA MOTORS CORP.
Disconnect the pin-type retainer from the fuel tank strap and position the parking brake cable aside.

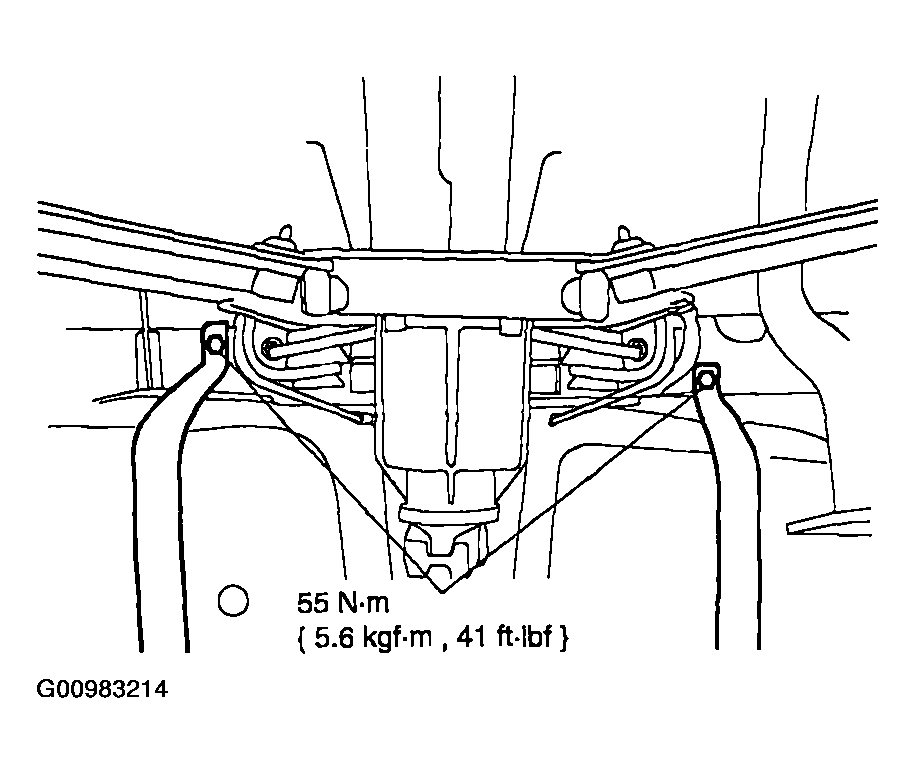

Fig 2: Removing Fuel Tank Strap
Courtesy of MAZDA MOTORS CORP.
NOTE:
- For 4WD vehicles, it will be necessary to disconnect a wiring harness clip from the fuel tank strap.
Remove the bolts and the fuel tank straps.
To install, reverse the removal procedure.
