Home >> Mazda >> 2004 >> Tribute DX, FWD >> Repair and Diagnosis >> Transmission >> Manual Trans >> Symptom Troubleshooting [Transmission] >> Symptom Troubleshooting Chart - Clutch >> Notes

Symptom Troubleshooting Chart - Clutch: Notes

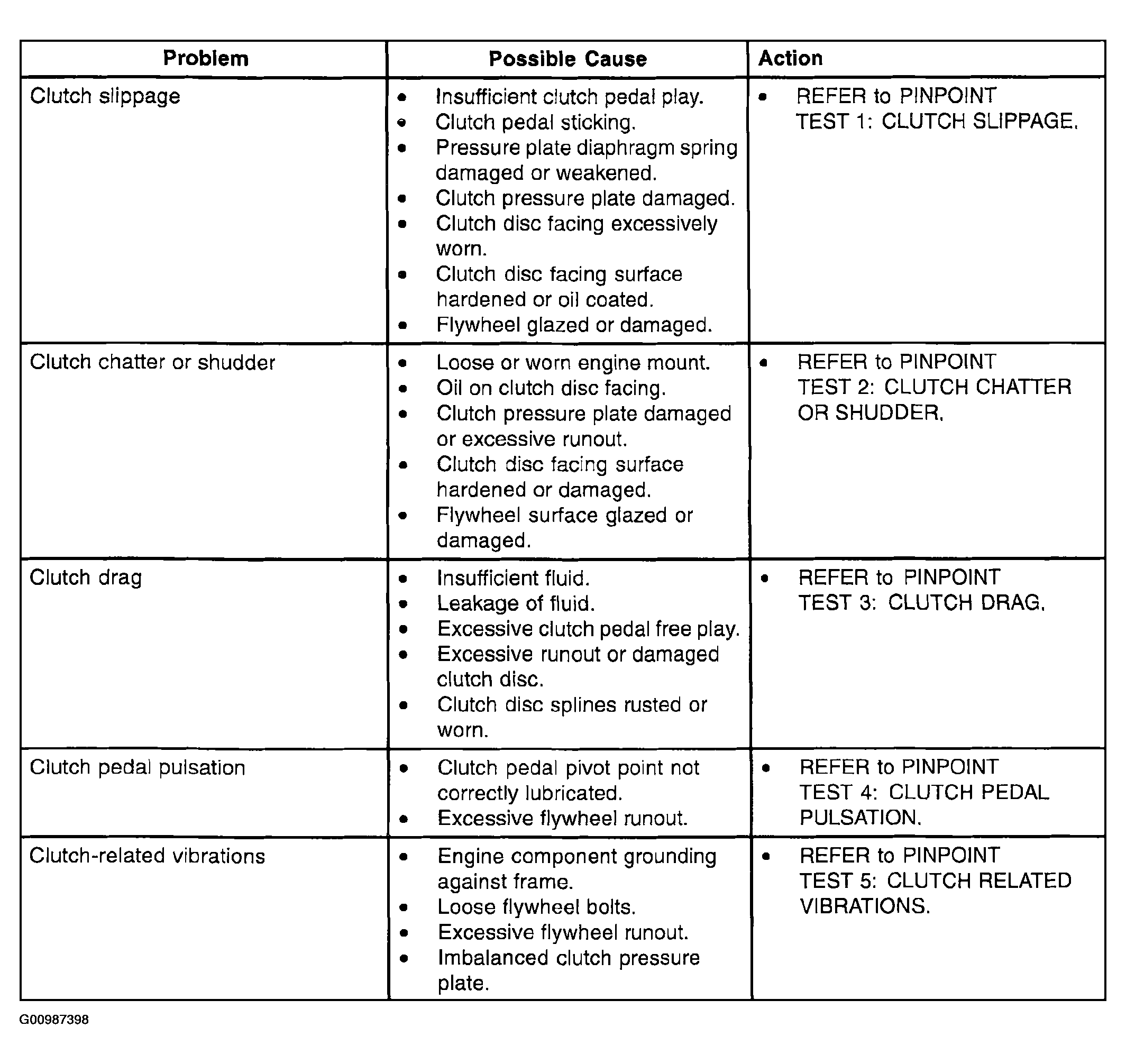

Fig 1: Symptom Troubleshooting Chart - Clutch (1 Of 2)
G00987398Courtesy of MAZDA MOTORS CORP.

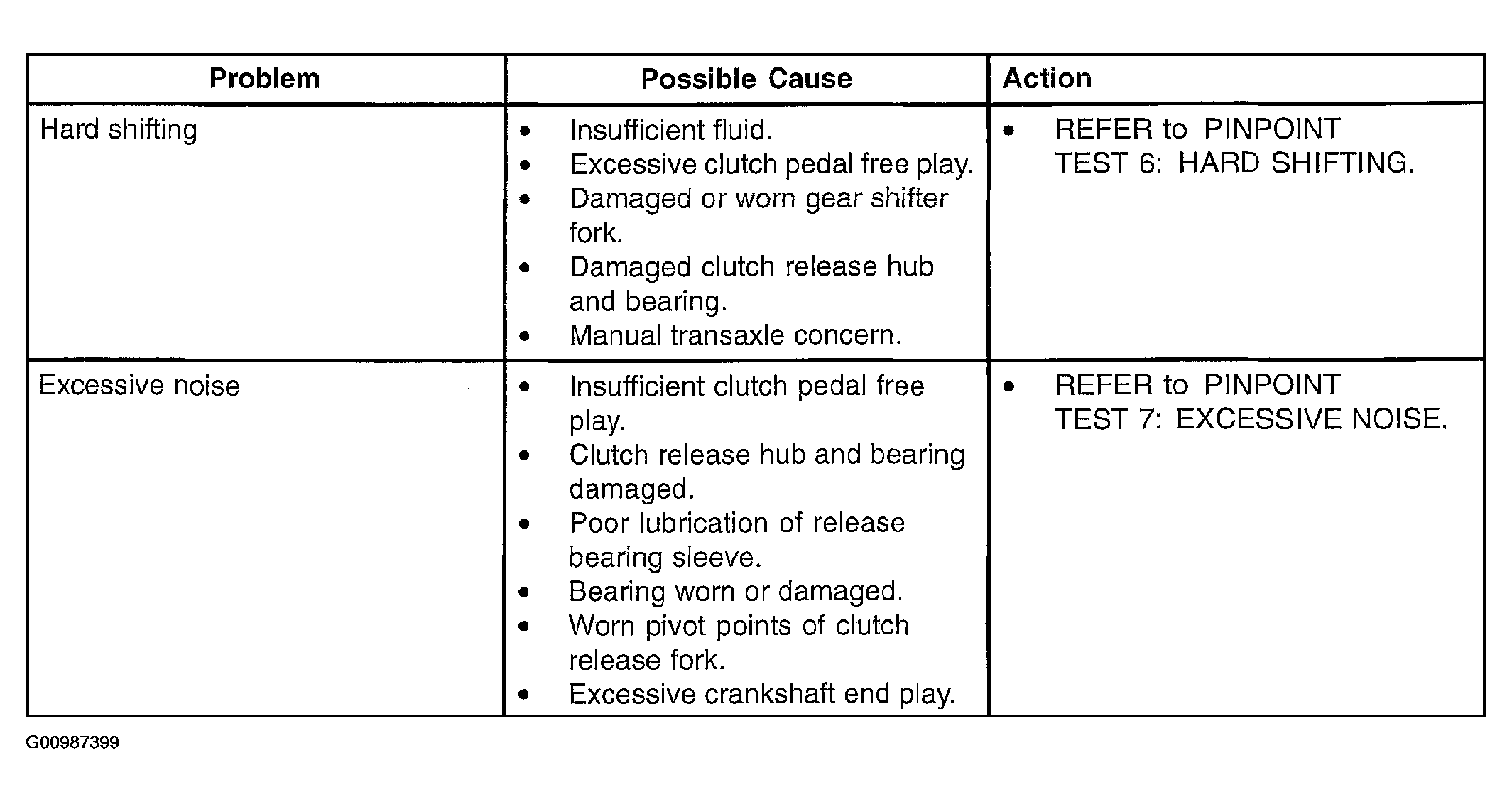

Fig 2: Symptom Troubleshooting Chart - Clutch (2 Of 2)
G00987399Courtesy of MAZDA MOTORS CORP.
