HALFSHAFT Seal RH: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

If the Power Take Off (PTO) unit is leaking automatic transaxle fluid, install a new Power Take Off (PTO) unit driven seal. Refer to POWER TAKE OFF UNIT DRIVEN GEAR SEAL .

Remove the exhaust system crossover pipe. Refer to EXHAUST FLEXIBLE PIPE - 3.0L DURATEC (4V) .

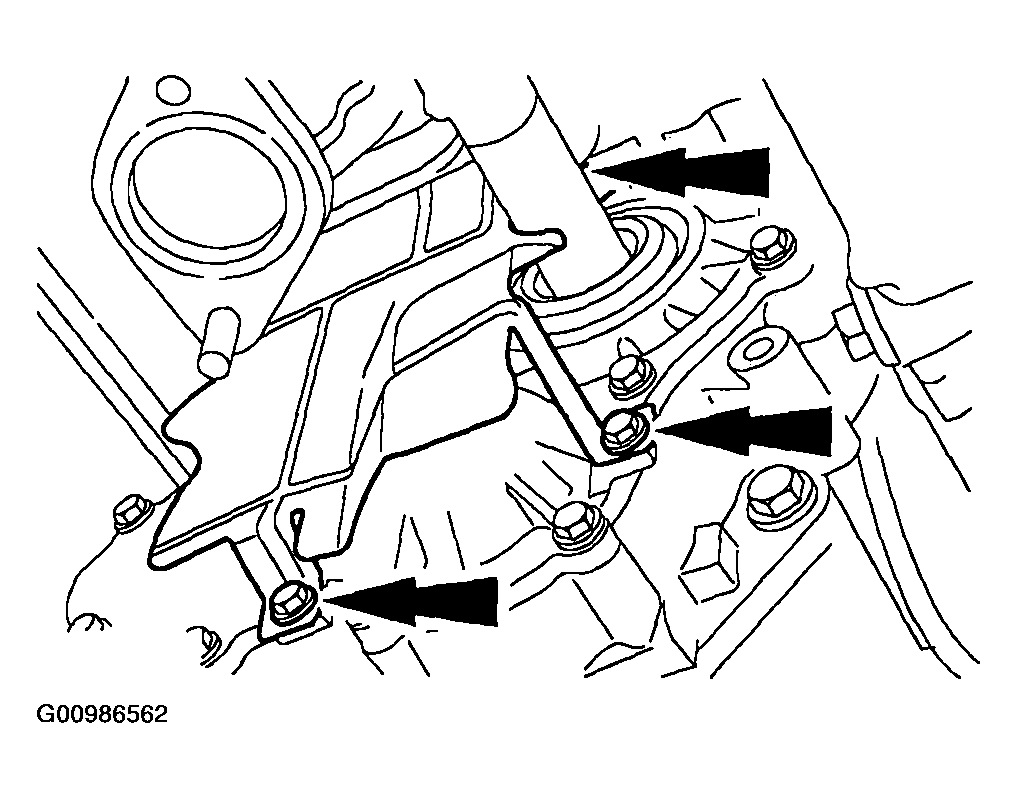

Fig 1: Removing Heat Shield
Courtesy of MAZDA MOTORS CORP.
Remove the heat shield.
- Remove the bolts.
Remove the front drive axle intermediate shaft. Refer to INTERMEDIATE SHAFT .

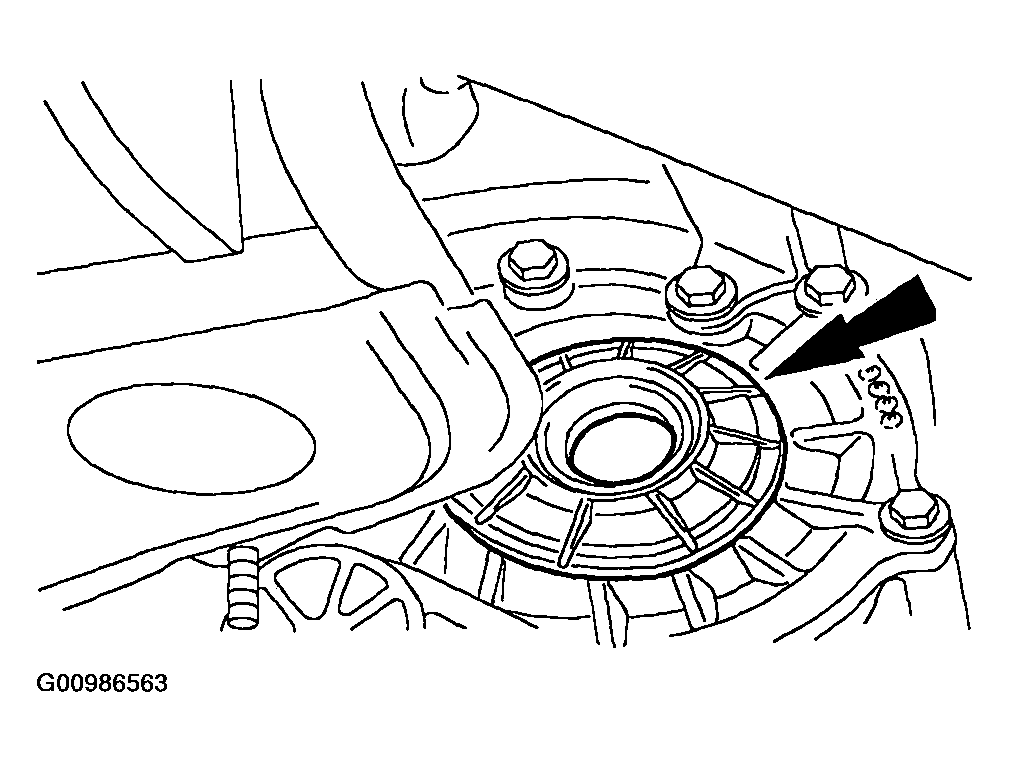

Fig 2: Removing And Discard Dust Shield
Courtesy of MAZDA MOTORS CORP.
Remove and discard the dust shield.

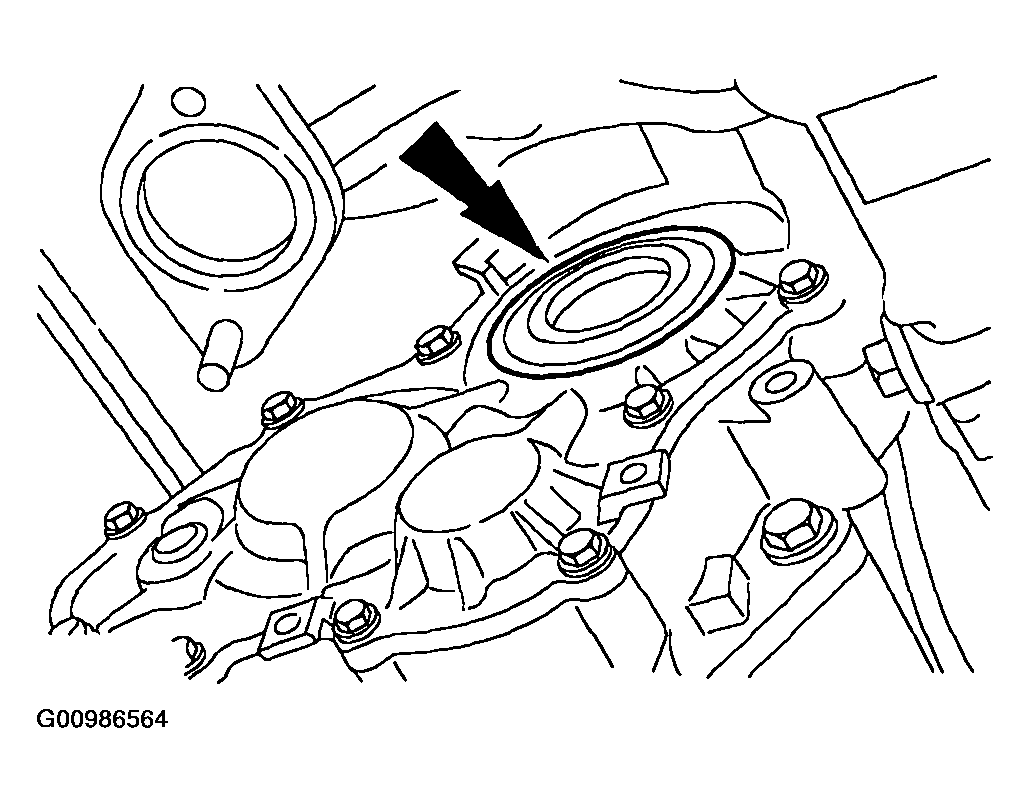

Fig 3: Removing And Discarding RH Halfshaft Seal
Courtesy of MAZDA MOTORS CORP.
Remove and discard the RH halfshaft seal.
