Test 9: Fuel Line/Fuel Pressure Hold Inspection

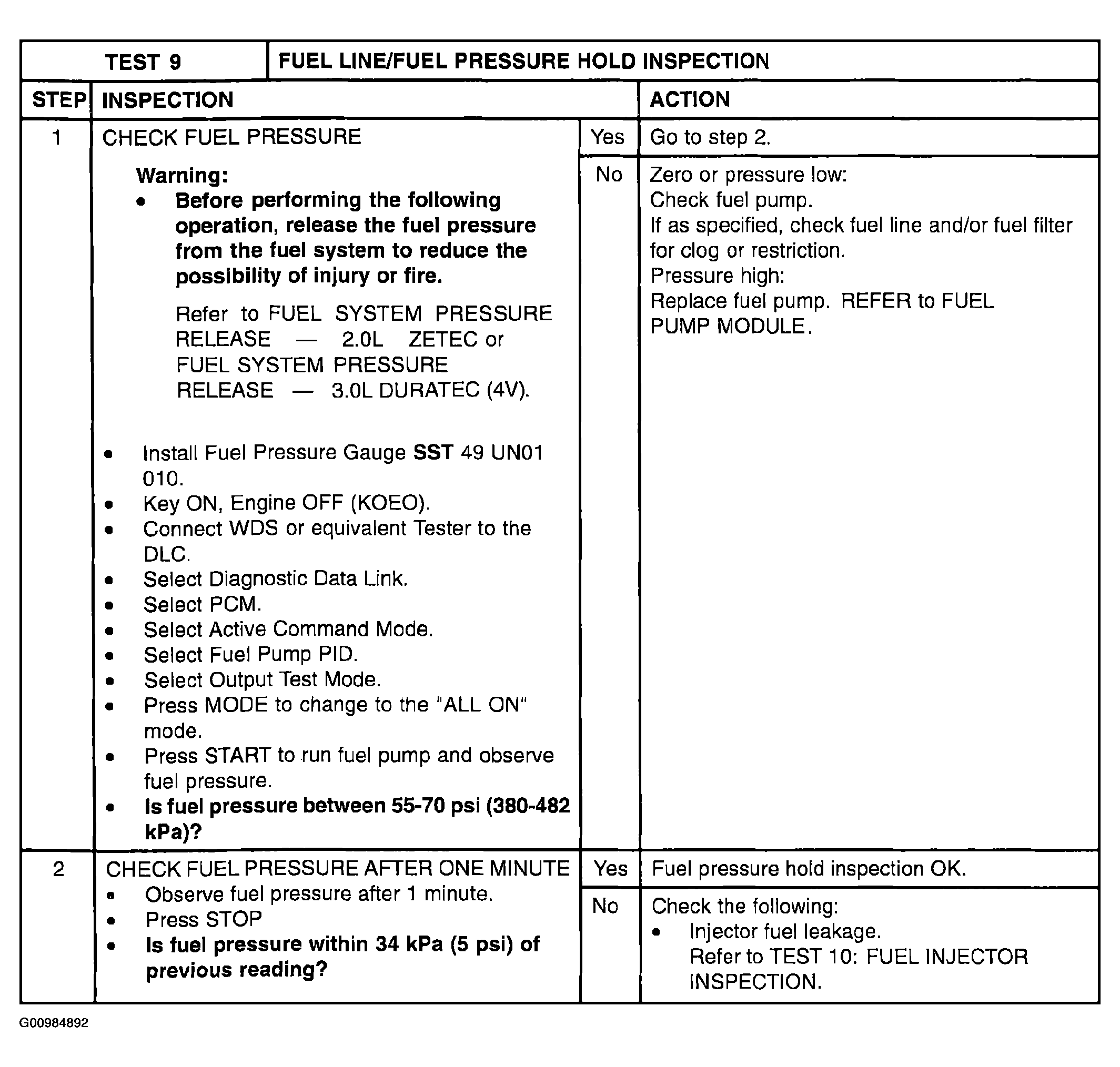

Fig 1: Test 9: Fuel Line/Fuel Pressure Hold Inspection

G00984892

Courtesy of MAZDA MOTORS CORP.
