Symptom Troubleshooting Chart - Drive Belts

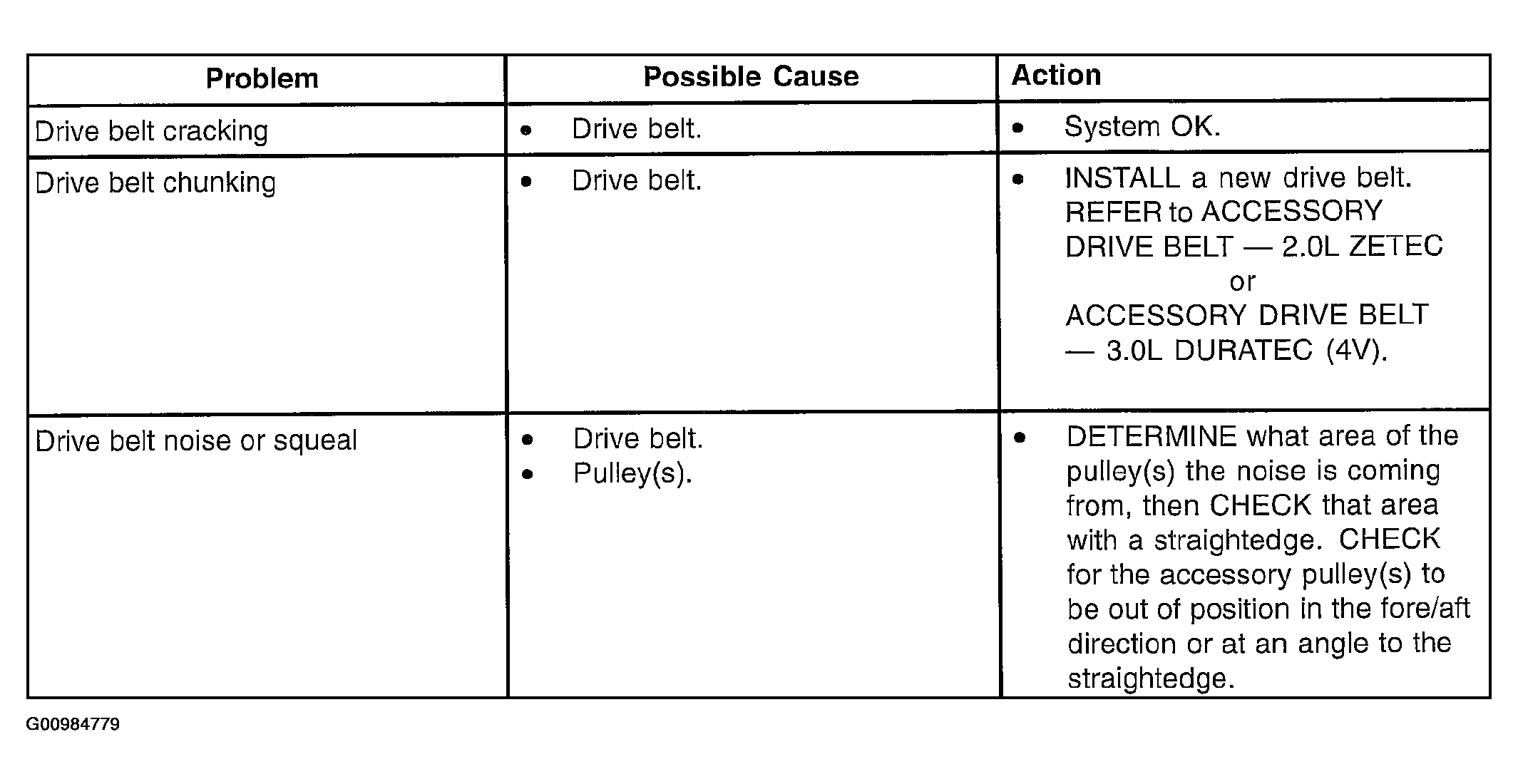

Fig 1: Symptom Troubleshooting Chart - Drive Belts (1 Of 2)
G00984779Courtesy of MAZDA MOTORS CORP.

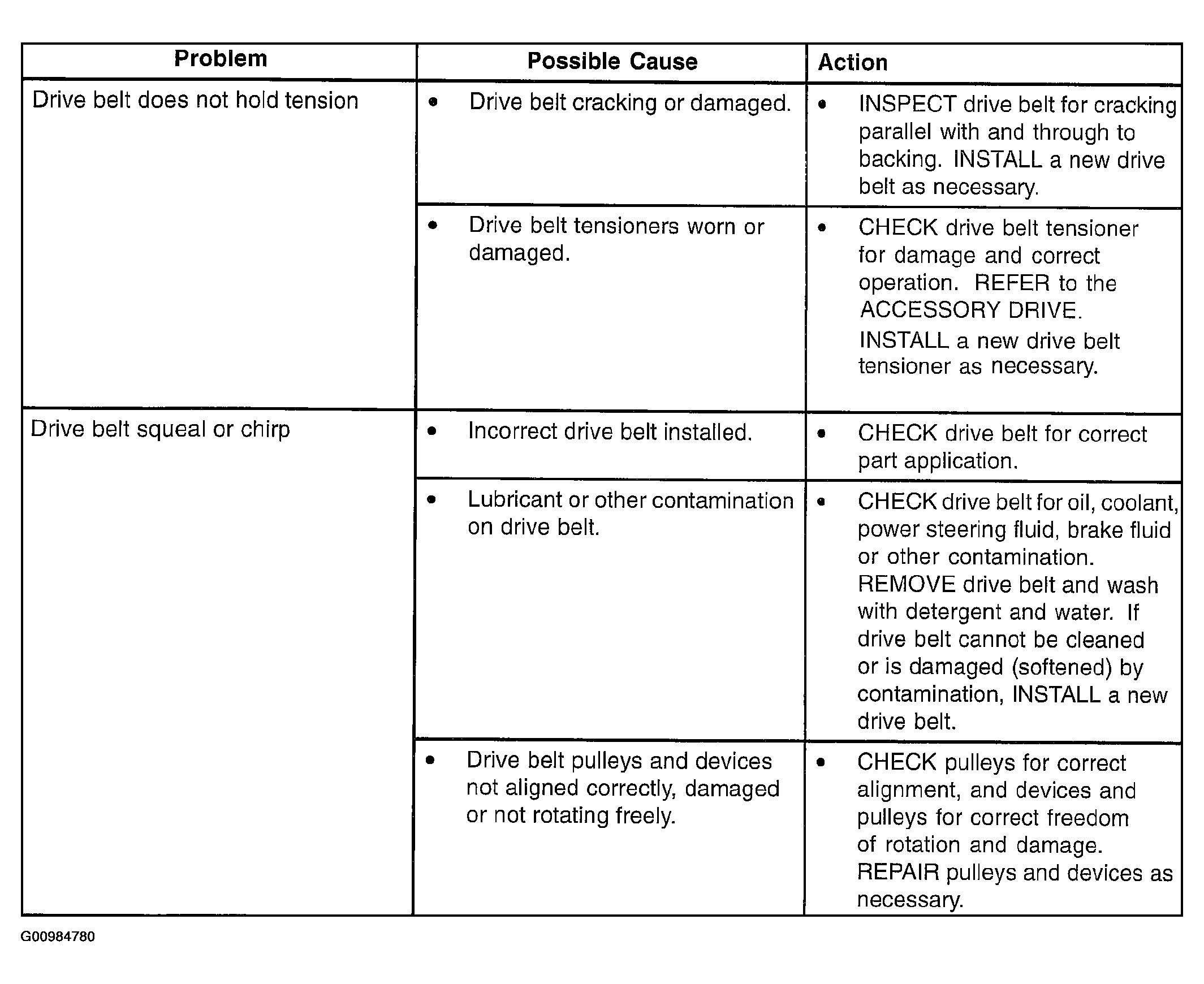

Fig 2: Symptom Troubleshooting Chart - Drive Belts (2 Of 2)
G00984780Courtesy of MAZDA MOTORS CORP.
