DTC P1309: Misfire Detection Monitor Disabled

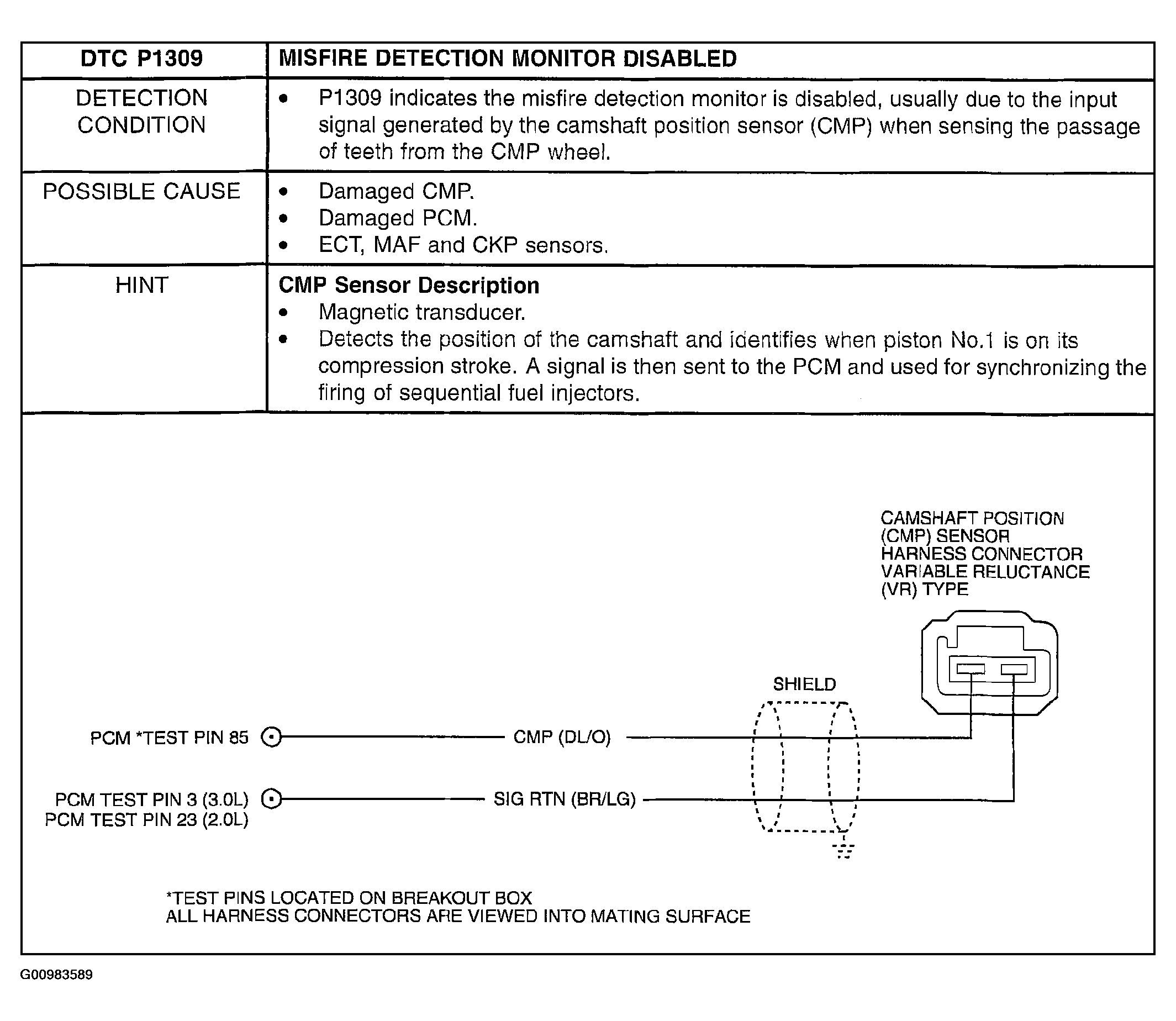

Fig 1: DTC P1309 Misfire Detection Monitor Disabled: Detection Condition, possible Cause, Hint & Camshaft Position Sensor Harness Connector View

Courtesy of MAZDA MOTORS CORP.

Fig 2: DTC P1309 Misfire Detection Monitor Disabled: Inspection (Step 1)

Courtesy of MAZDA MOTORS CORP.

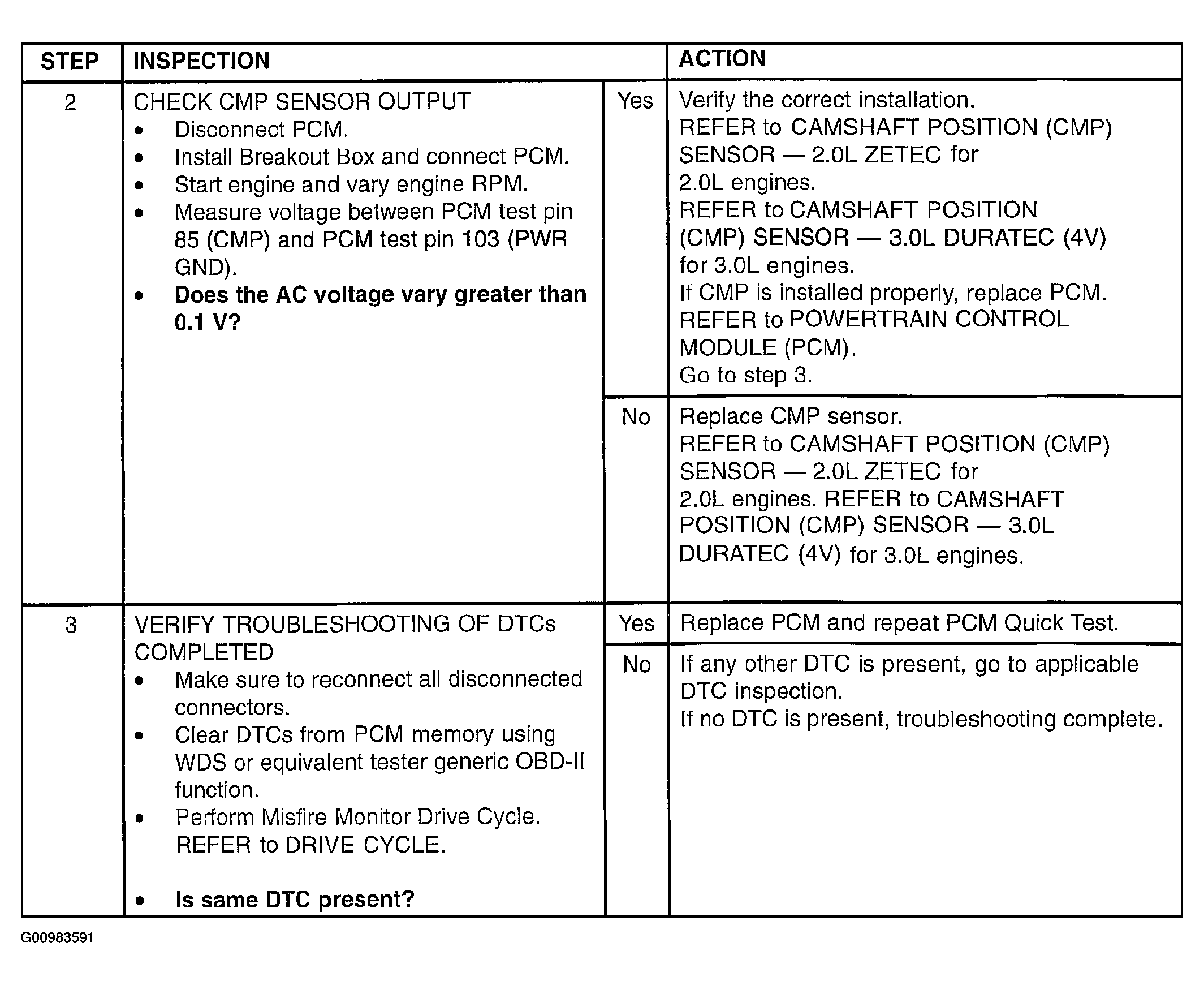

Fig 3: DTC P1309 Misfire Detection Monitor Disabled: Inspection (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.
